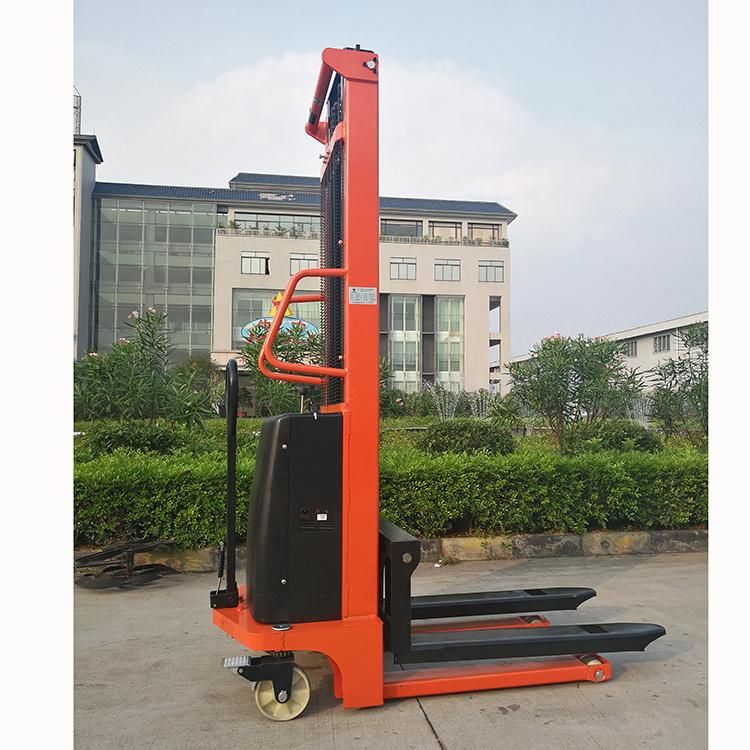

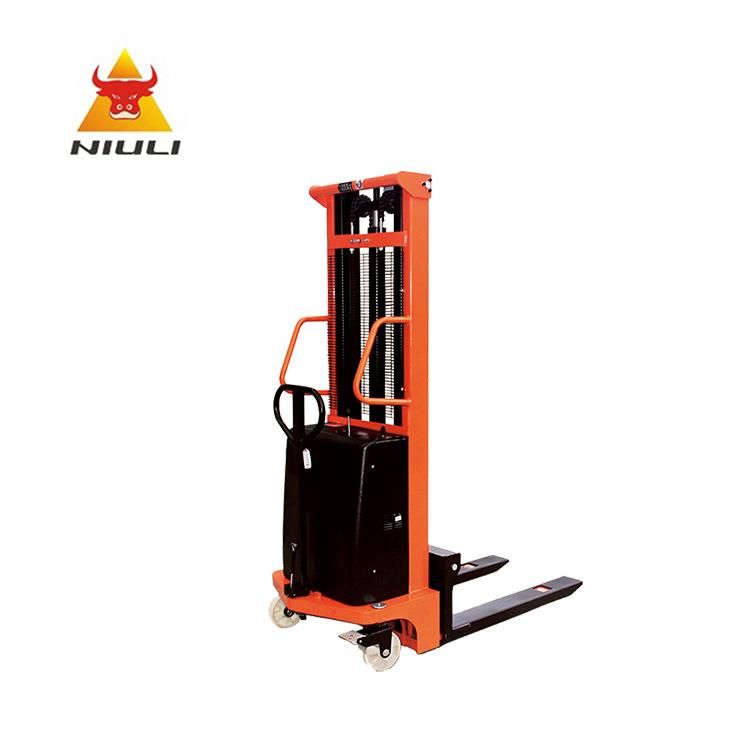

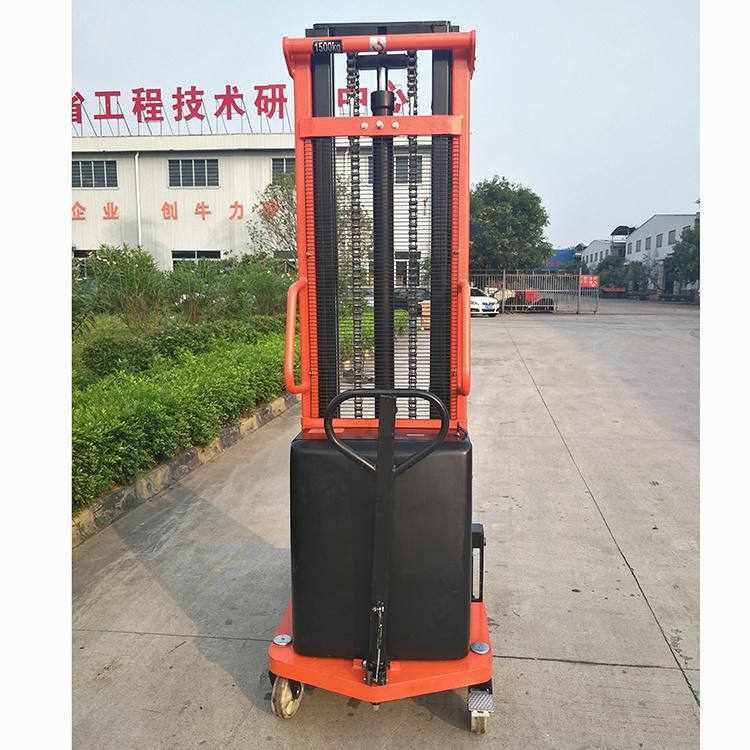

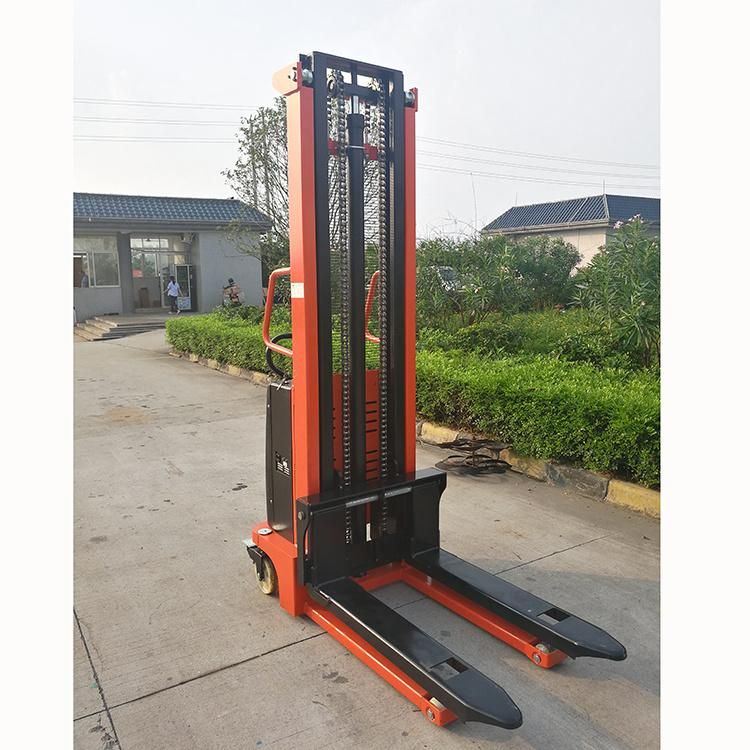

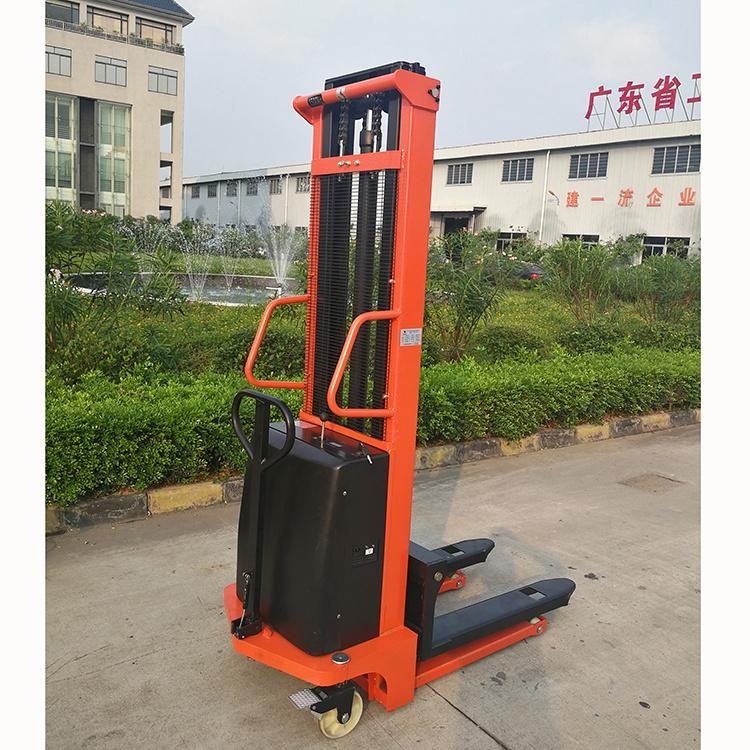

China OEM Offer 1.5t Semi-Electric Powered Stacker
Niuli Machinery Manufacture Co., Ltd.- Width of Front Leg：1400mm
- Structure：Hydraulic Jack
- Power Source：Electric
- Transport Package：Woven Bag
- Specification：GB,T3298-96
- Trademark：NIULI
Base Info
- Model NO.：CTD
- Origin：China
- HS Code：84279000
- Production Capacity：10000PCS,Year
Description
Basic Info.
Model NO. CTD Origin China HS Code 84279000 Production Capacity 10000PCS/YearProduct Description
Semi Electric Stacker:1. Capacity: 1000kg/1500kg. 2000kg.
2. Lift Height: 1600mm, 2000mm, 2500mm, 3000mm, 3300mm.
3. Fork Length: 1000mm.
4. Min Height Of Forks Lowered: 80-100mm.
5. Charging Voltage: AC220V.
6. Adjustable Width Of The Forks: 320-720mm
| Model | CTD1.0/30/33 | CTD1.5/16 | CTD1.5/20 |
| Capacity(kg) | 1000 | 1500 | 1500 |
| Max.lifting height(mm) | 3000/3300 | 1600 | 2000 |
| Fork length(mm) | 1000 | 1000 | 1000 |
| Min.fork height(mm) | 90 | 90 | 90 |
| Load eenter(mm) | 500 | 500 | 500 |
| Voltage | AC 220V | AC220V | AC220V |
| Motor power | 1.6KW | 1.6KW | 1.6KW |
| Outer width of front legs(mm) | 635 | 635 | 635 |
| Inner width of legs(mm) | 395 | 395 | 395 |
| Adjustable Width of fork(mm) | 360-690 | 360-690 | 360-690 |
| Rear wheel size(mm) | φ180x50 | φ180x50 | φ180x50 |
| Front wheel size(mm) | φ80x70 | φ80x93 | φ80x93 |
| Self Weight(kg) | 355/370 | 387 | 405 |
| Extended height(mm) | 2080/2230 | 2080 | 1580 |
| Closed height H3(mm) | 3500/3800 | 2080 | 2500 |
