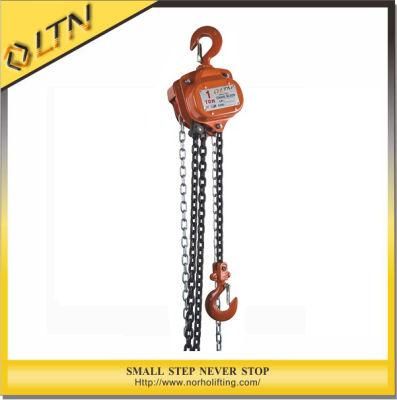

High Quality Chain Block (CH-WB)
Hangzhou Nuohao Industry Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：<2m,min
- Maximum Lifting Height：>20m
- Chain Falls：1
Base Info
- Model NO.：CH-WB
- Certification：CE, ISO9001:2000, GS TUV
- Condition：New
- Color：Orange
- Capacity：0.5ton to 50ton
- Lifting Height：3m as Standard, Others Also Available
- Chain：G80 Load Chain and Galv. Hand Chain
- Transport Package：Carton Packing or Wooden Pallet Packing
- Specification：CE GS and TUV
- Trademark：LTN Or OEM
- Origin：Hangzhou China
- HS Code：8425190000
- Production Capacity：10000sets,Month
Description
| Model | CH-WB0.5 | CH-WB1 | CH-WB1.5 | CH-WB2 | CH-WB3 | CH-WB5 | CH-WB10 | CH-WB20 | CH-WB30 | CH-WB50 | |
| Capacity(Ton) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | |
| Standard lift(M) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Running Test Load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | 45 | 75 | |
| No.of falls of Load Chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 24 | |
| Load Chain Diamter(MM) | 5 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | 9 | 9 | 9 | |
| Diamensions(MM) | a | 129 | 149.5 | 157.5 | 161.5 | 151.5 | 163 | 207 | 215 | 350 | 406 |
| b | 136 | 145 | 164.5 | 187 | 164.5 | 211 | 398 | 650 | 680 | 962 | |
| c | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | 2578 | |
| Net Weight(Kg) | 8.4 | 12 | 16.2 | 20 | 24 | 41 | 79 | 193 | 220 | 1092 |
