• Model NO.：TS0.5-16
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Model No.：Ts0.5-16
• Platform Size：2812*1600mm
• Lift Speed：4-6m,Min
• Platform：Antiskid
• Color：Yellow, Blue, or as Your Requirement
• Self-Weight：3500kg
• Lifting Height：16m
• Working Height：18m
• Guardrail：1100mm
• Supporting Legs：Four Manual Supporting Legs
• Transport Package：Plywood Case
• Specification：3067*1810*2080mm
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：8428909090
• Production Capacity：500units Per Year

Basic Info.

Model NO. TS0.5-16 Feature Explosion-Proof Certification CE, ISO 9001 Model No. Ts0.5-16 Platform Size 2812*1600mm Lift Speed 4-6m/Min Platform Antiskid Color Yellow, Blue, or as Your Requirement Self-Weight 3500kg Lifting Height 16m Working Height 18m Guardrail 1100mm Supporting Legs Four Manual Supporting Legs Transport Package Plywood Case Specification 3067*1810*2080mm Trademark MORN LIFT Origin Shandong, China HS Code 8428909090 Production Capacity 500units Per Year

Product Description

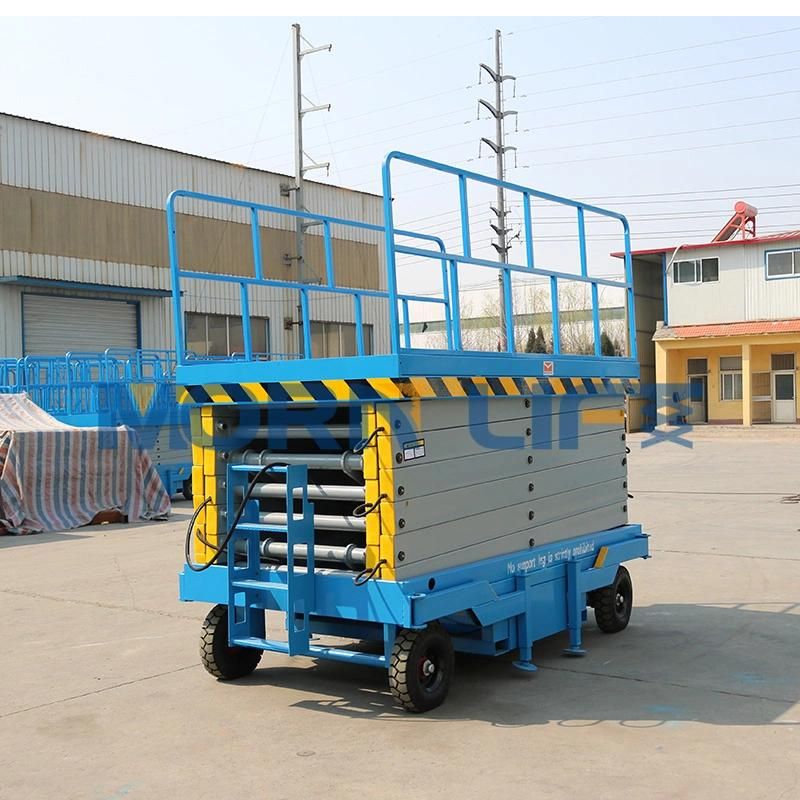

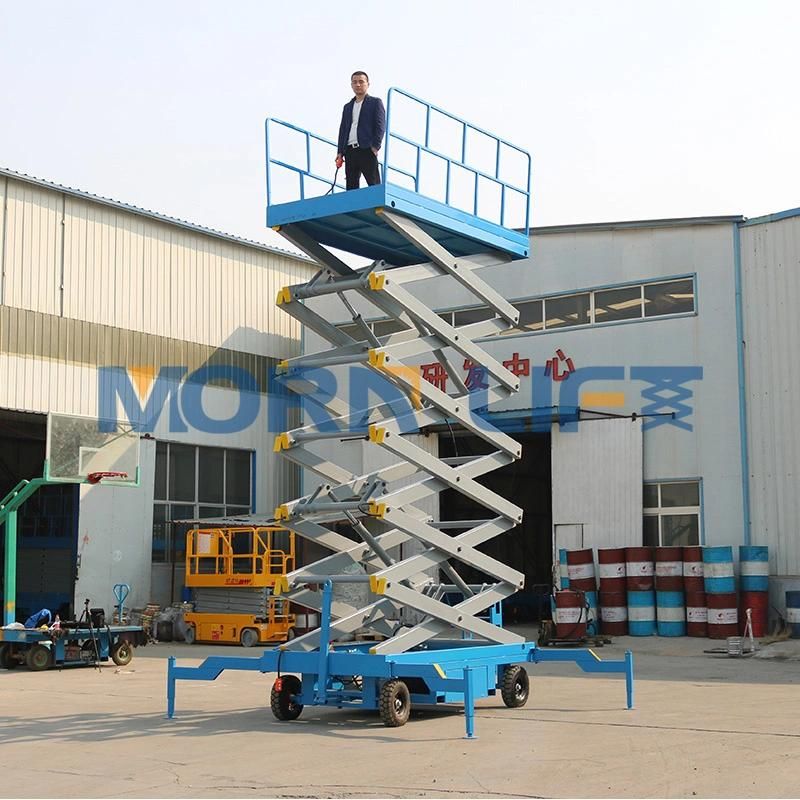

18m working height Aerial Work Platform Mobile Scissor Lift
Product details


1. Features:

1. Mobile scissor lift table is mainly used to lift workers to higher places for maintenance, cleaning or installation.
2. It is characterized by manual move and great loading capacity.
3. Lift power: AC(110V, 220V, 380V, 415V), DC or diesel available.
4. Both ground and platform can control the lift, easily operated.
5. Steady ascending and descending
6. Mobile convenient, easy to work.
7. Custom-made according to the requirement



2. Specifications of Mobile Scissor Lift


Model	Capacity	platform height	max working height	platform size	Demension	Total weight
TS0.5-4	500kg	4m	6m	2100*830mm	2250*950*1100mm	800kg
TS0.5-6	500kg	6m	8m	2100*830mm	2250*950*1200mm	880kg
TS0.5-7	500kg	7m	9m	2100*830mm	2250*950*1280mm	970kg
TS0.5-8	500kg	8m	10m	2100*930mm	2250*1060*1380mm	1050kg
TS0.5-9	500kg	9m	11m	2100*930mm	2250*1060*1500mm	1165kg
TS0.5-10	500kg	10m	12m	2100*1230mm	2250*1350*1530mm	1360kg
TS0.5-11	500kg	11m	13m	2100*1230mm	2250*1350*1650mm	1400kg
TS0.5-12	500kg	12m	14m	2550*1530mm	2796*1670*1750mm	2260kg
TS0.5-14	500kg	14m	16m	2812*1530mm	3067*1730*1810mm	2400kg
TS0.5-16	500kg	16m	18m	2812*1600mm	3067*1810*2080mm	3500kg
TS0.5-18	500kg	18m	20m	3070*1600mm	3321*1810*2080mm	3900kg

Control system
    a, Control box control the main power of the lift with UP, DOWN and STOP three buttons. Can be locked when no working in case of any mis-operation.

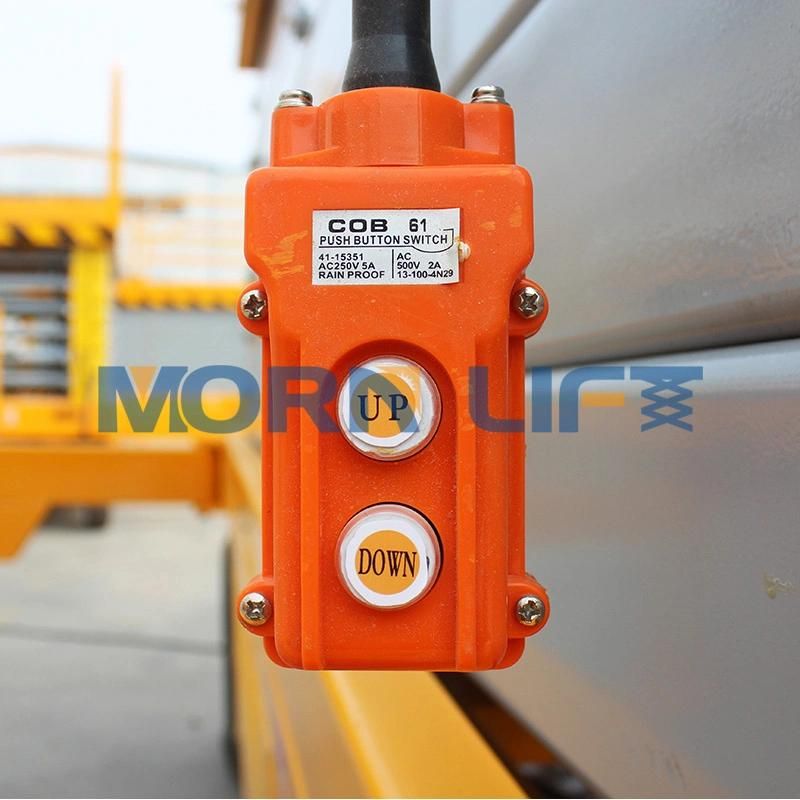

     b, This controller is especially for the workers, located on the platform, they can control the lift UP, DOWN,                STOP, only them know which height is suitable for working.

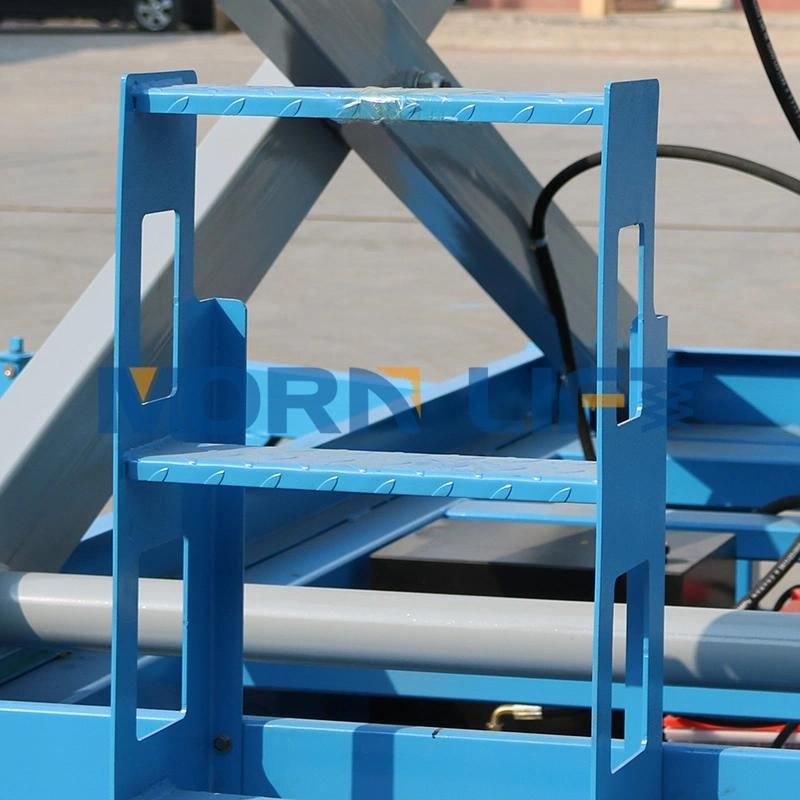

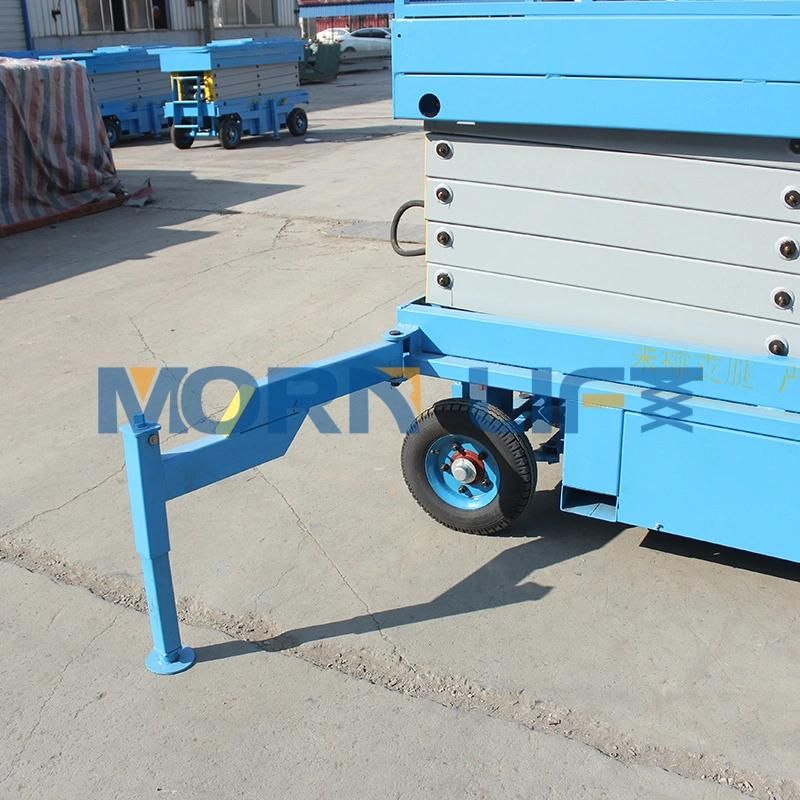

Supporting legs and Ladder

Don't use before supporting the legs. The scissor lift has its self-height, you can go up
to the platform by this small ladder easily
Each scissor lift has our MORN company logo, which also shows model, load capacity,
and other specifications, voltage and so on.

3. Application of Mobile Scissor Lift

It is widely used for the equipment installations and maintenance at the following place like construction sites, workshops, warehouse, granary, bus/railway, stations, hotels, airports, gas station and aerial pipeline.

4. Service

1). 12 months warranty, beginning from the day you receive your product. (for standard products); 5 years main frame warranty for hydraulic cargo lift and scissor lift table.

2). 7*24 hours technical support, offering by professional technical team.

3). Installation manual with drawing, photos, words will be provided in time.

4). Engineers are available to go abroad for installation and training services.

5. Company information
JINAN SINICMECH MACHINERY factory was founded in the year 1999 and started the production of scissor lifts, cargo lifts, dock ramp and so on. After years of development, GEMWAY has manufactured many new lifts such as towable boom lift, wheelchair lift, electric scissor lift and so on. All the products are manufactured under the standard of CE certification.
Each monthSinicmech machinery is visited by many customers from different countries. They coming for test our lifts, plants, designs and place the order in the office after negotiation. Welcome you tocome and test MORN lifts in person.
