• Model NO.：SPS14
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Model No.：Sps-14
• Platform Size：2830*1130mm
• Max. Drive Speed(Stowed)：3.2km,H
• Extend Platform：900mm
• Color：Yellow, Blue, or as Your Requirement
• Self-Weight：3500kg
• Lifting Height：14m
• Working Height：16m
• Guardrail：1100mm
• Load Capacity：200kg
• Transport Package：Plywood Case
• Specification：2970*1250*2680mm
• Trademark：MORN LIFT
• Origin：Shandong, China
• HS Code：8428909090
• Production Capacity：200 Units Per Month

Basic Info.

Model NO. SPS14 Feature Explosion-Proof Certification CE, ISO 9001 Model No. Sps-14 Platform Size 2830*1130mm Max. Drive Speed(Stowed) 3.2km/H Extend Platform 900mm Color Yellow, Blue, or as Your Requirement Self-Weight 3500kg Lifting Height 14m Working Height 16m Guardrail 1100mm Load Capacity 200kg Transport Package Plywood Case Specification 2970*1250*2680mm Trademark MORN LIFT Origin Shandong, China HS Code 8428909090 Production Capacity 200 Units Per Month

Product Description

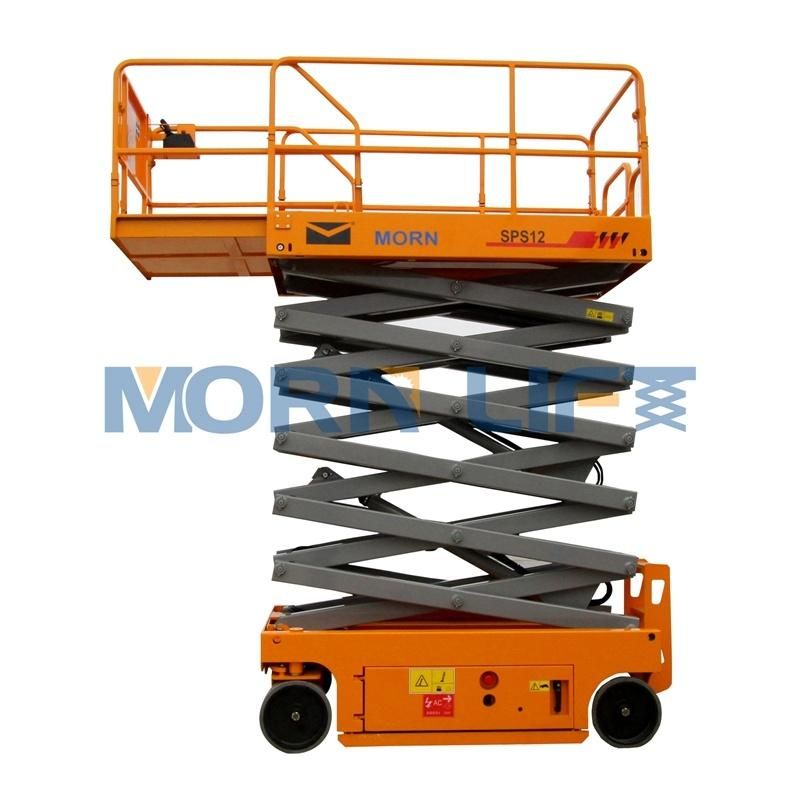

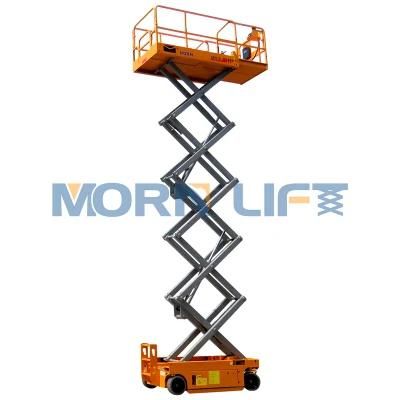

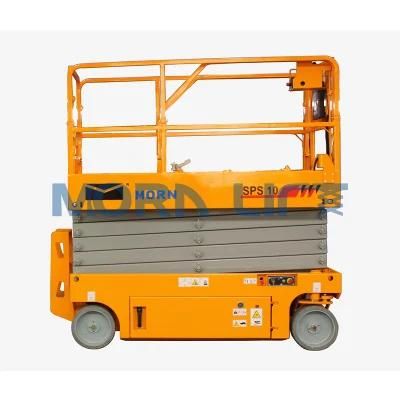

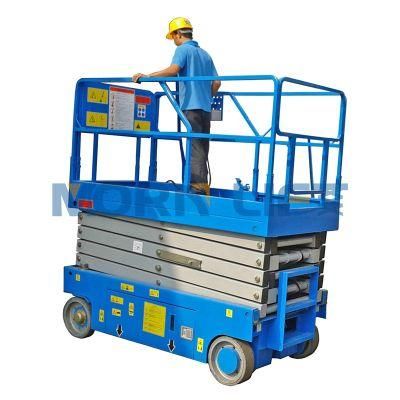

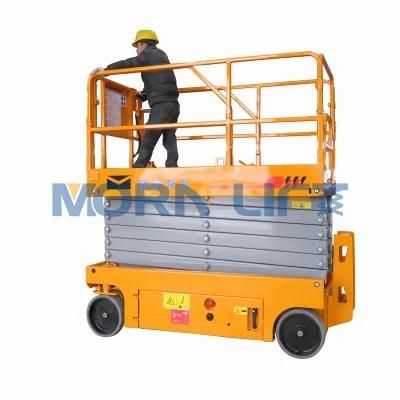

CE Approved 14m Height Self-Propelled Scissor Lift
Product details


1. Introduction of self-propelled scissor lift
Morn self-propelled scissor lifts are used for lifting workers to the high level which
are made electric powered with Trojan battery provides the power to move and steer around.
Fully self-walk and up&down system makes it more convenient for one person to operate on the platform.

2. Model list for reference


Data/Model	SPS-5	SPS-6	SPS-8	SPS-10	SPS-12	SPS-14
Lifting height(m)	4.8	6.15	8	10	11.53	14.2
Max. working  height(m)	6.5	7.7	9.7	11.5	13.23	15.9
Load capacity(kg)	280	230	450	320	230	320
Platform size(mm)	1790*740	2260*800	2260*800	2260*1130	2260*1130	2930*1650
Extend platform  length(mm)	900	900	900	900	900	1100
Overall size(mm)	1.89*0.76*2.2	1.89*0.76*2.4	2.48*1.15*1.19	2.48*1.15*1.32	2.48*1.15*1.31	2.93*1.75*2.89
Grade ability	25%	25%	25%	25%	25%	20%
Lift motor	24V/3KW	24V/3KW	24V/3KW	24V/3KW	24V/3KW	48v/5kw
Drive speed (stowed)	3.2km/h	3.2km/h	3.2km/h	3.2km/h	3.2km/h	3.2km/h
Drive speed (raised)	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h	0.8km/h
Maintenance-free Battery	4*6/230V/ah	4*6/230V/ah	4*6/230V/ah	4*6/230V/ah	4*6/230V/ah	86*/215V/ah
Self Weight(kg)	1350	2180	2300	2450	2850	3350

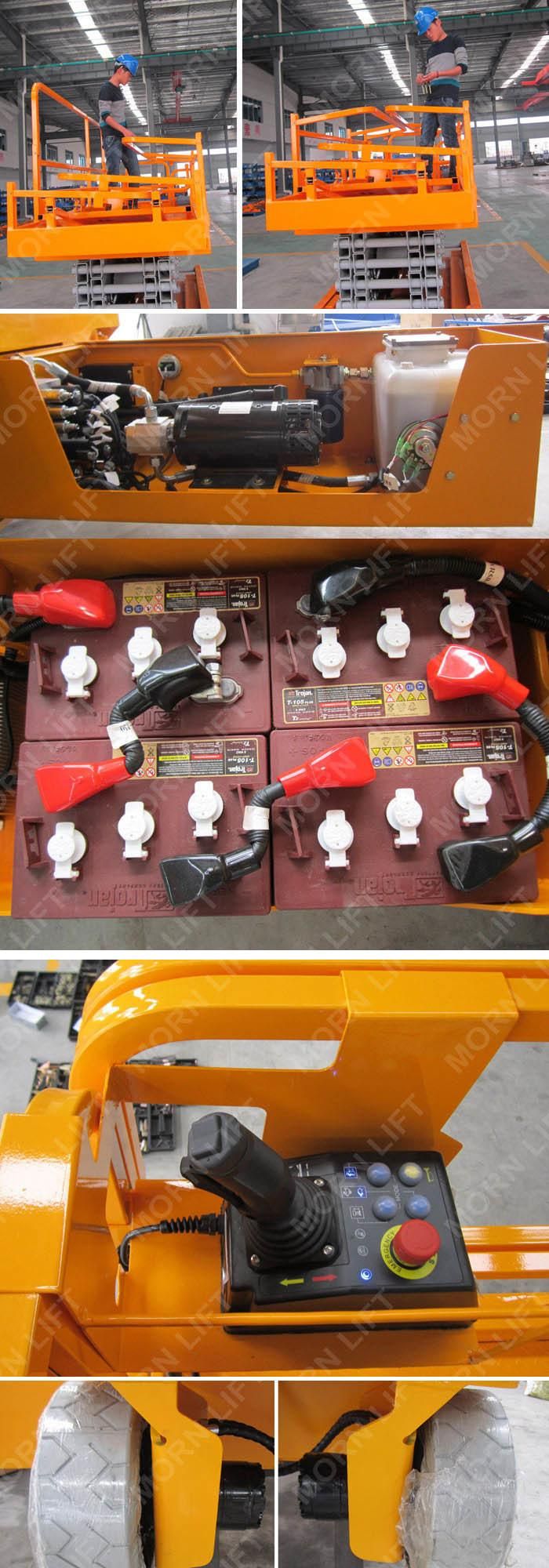

3. Main features of Self-propelled scissor lift

1. Pothole protection device: Guarantee scissor lift to move smoothly when the ground is uneven.
2. Battery power is convenient, mobile at any time, no noise, no radiation, indoor and outdoor can be used
3. Scissor structure, reduce error and guarantee safety and stability.
4. Maintain support: prevent platform down during maintenance work.
5. Pit protection: the pit protection facilities will automatically put down during equipment ascent and protect the equipment from being tilted.
6. Flexible: The steering wheel can make a 90-degree turn in the situation, run in both high and lower speed, and be used even in small space.
7. Polyurethane wheel is lightweight and causes less damage to the floor, the strip design on tire make the moving more stable.
8. Extended platform: Bigger work range
9. Foldable guardrail: save the store dimension.
10. Traggable engine tray: Chassis can be swing out, which facilitate the maintenance, inspection and replacement.
11. Platform controller: easy control on the platform for lifting up/down, moving or steering with speed adjustable.
12. The footswitch on the platform for the extended guardrail.
13. Emergency decline: make the platform down under the emergency situation
14. Emergency stop button: Stop the lift under the emergency situation





4. Applications:
It is widely used for aerial installation and maintenance of the working sites without power supply and
with smooth working grounds, such as hotels, grand hall, sports stadium, large factory, workshops,
warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline

5. Warranty
1) User-friendly English manual for machine using and maintenance.
2) One year warranty for whole machine without man-made fault;
3) We will send you parts for free if there are any non-human factors problem during warranty time
4) 24-hours technical support by email, telephone or other communication online.
5) We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
