2000kg Hydraulic Mobile Container Loading Dock Lift
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online
- Warranty：1 Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Light Level
- Moves：Moving
Base Info
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：CE, RoHS, ISO 9001
- Platform Height：1600mm
- Platform Size：1675*2000 mm or 1600*2000mm
- Ramp Size and Angle：1530*650 mm, 14 Degree
- Overall Size：2260*2380*2570 mm
- Lifting Motor：3 Phase 380V 3.0 Kw
- Net Weight：800 Kg
- Load Capacity：2000kg
- Lifting & Down Speed：4m~6m,Min.
- Cylinder：Diameter 63mm * 2 PCS
- Chassis Structure：Rectangular Tube and Checkered Plate
- Guide：#14b Channel Steel
- Feature 1：User-Friendly Wire-Controlled Handle
- Feature 2：Adjustable Support Screws for Extra Safety
- Feature 3：Foldable Front , Rear Lips
- Feature 4：Controllable Lowering Speed
- Transport Package：in Nude
- Specification：2000kg
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：50000 PCS,Month
Description
#14B channel steelOverall Size 2260*2380*2570 mm (A*B*C) 2200*2200*2200 mm (A*B*C) Net Weight 850 kg 700 kg 1X40'FCL Load Qty 5sets (need 1X40'HQ) 5 sets (need 1X40'GP)

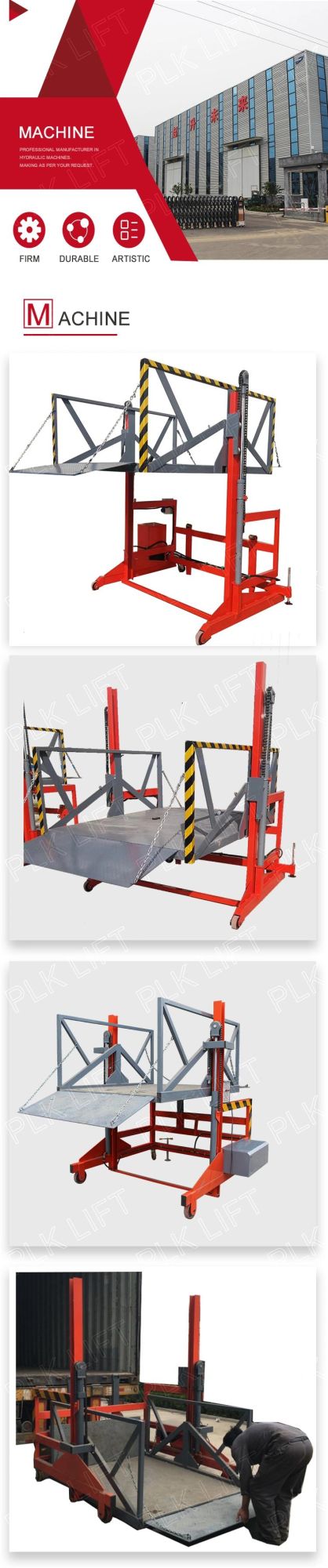

2. Product Photos:
3. Features & Advantages:
4. Product Details:
5. Applications:
6.Bulk Orders
7.Factory Show
2. Product Photos:
3. Features & Advantages:
- User-friendly wire-controlled handle
- AC 110V/220V/380V Electric hydraulic motor
- Adjustable support screws for extra safety
- Anti-skid steel checkered plate platform
- Foldable front / rear lips
- Controllable lowering speed
- Double anti-rust primer before painting for protection

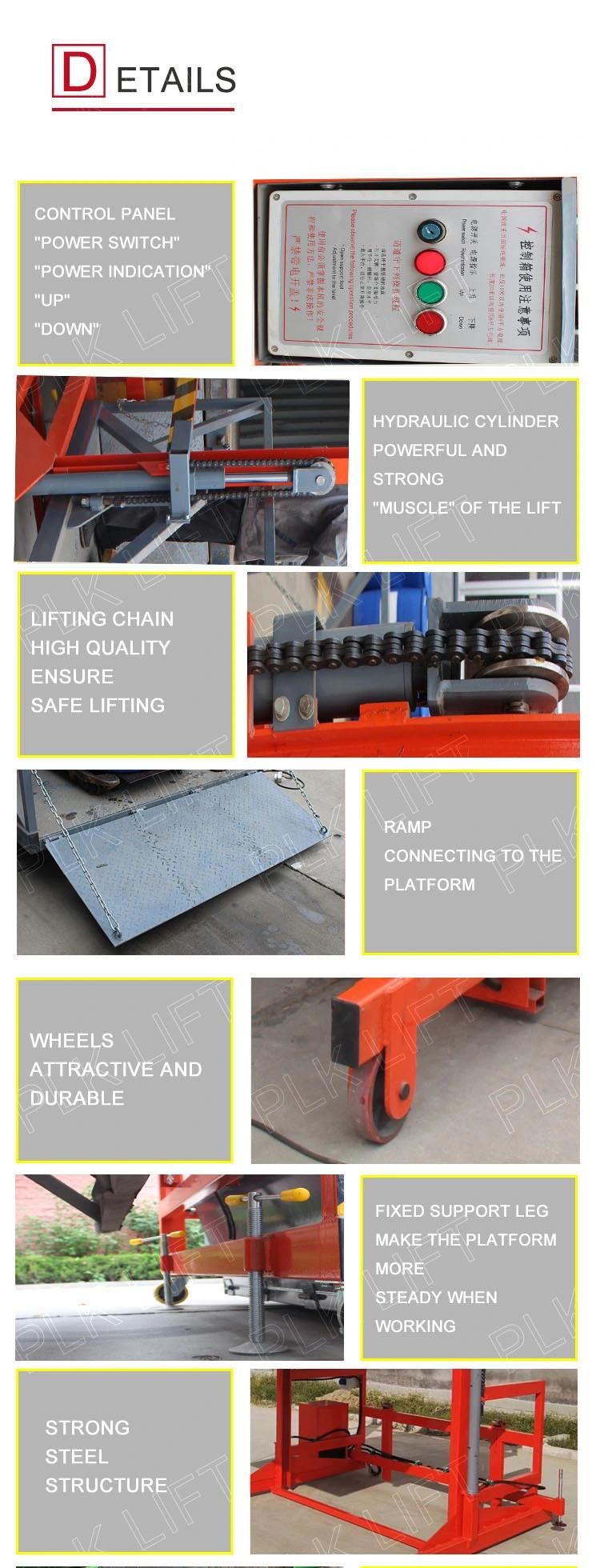

4. Product Details:

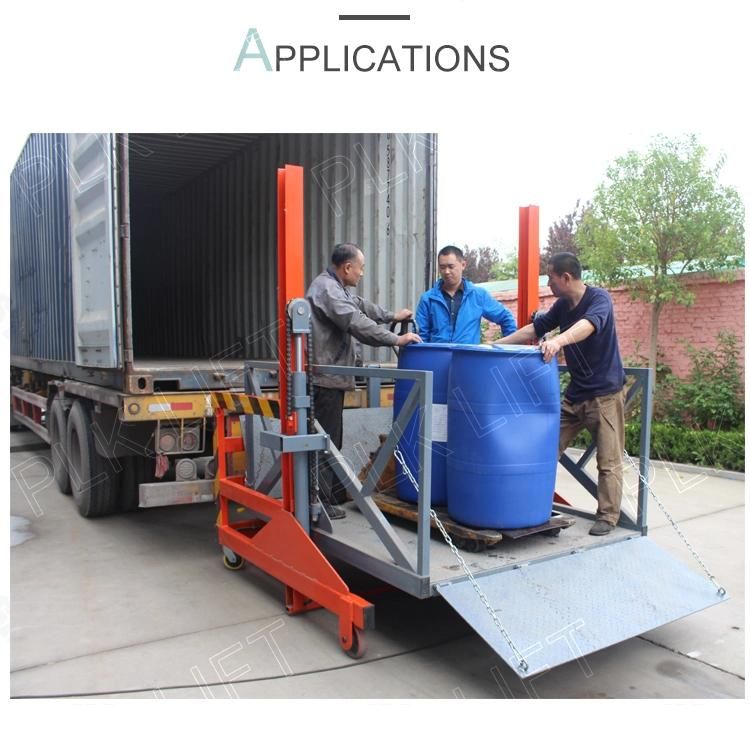

5. Applications:

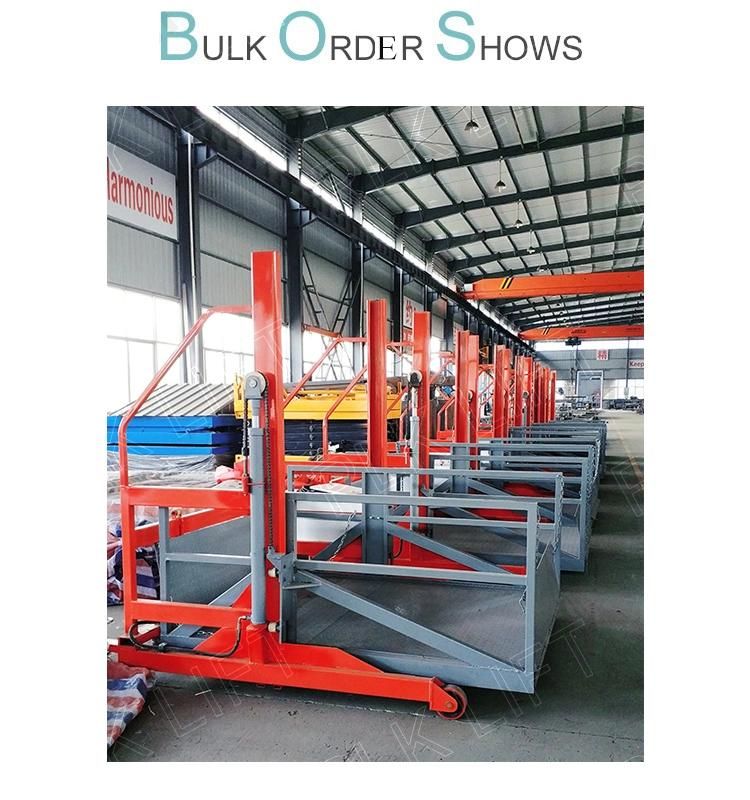

6.Bulk Orders
7.Factory Show
