China 8m 10m 12m 14m 16m 18m 20m 22m Articulated Trailer Boom Lift for Sale
Jinan Morn Technology Co., Ltd.- After-sales Service：Free Spare Parts and 24h Online Service
- Warranty：24 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Tree Care and Maintance
- Lift Mechanism：Articulated Lift
- Carrying Capacity：Special Weight Level
- Moves：Moving
Base Info
- Model NO.：ATB0.2-10
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Working Height：12 M
- Outreach：5.5 M
- Load Capacity：200 Kg
- Lift Power：AC , Battery , Engine , Dual Power
- Moving：by Car or Truck Tow
- Use：Hydraulic Manual Towable Boom Lift Instead of Ladd
- OEM：Lift Height, Traction Drive, Lift Power
- Safety Parts：Manual Down, Double Brake System
- Spare Parts：Oil Ring, Seal Ring, Travel Switch
- Transport Package：Film Packed and Load in One 20FT Container
- Specification：package size 5.4*1.6*1.9m
- Trademark：MORN BRAND
- Origin：China
- HS Code：8428909090
- Production Capacity：10 Sets Per Month
Description
Basic Info.
Model NO. ATB0.2-10 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Working Height 12 M Outreach 5.5 M Load Capacity 200 Kg Lift Power AC / Battery / Engine / Dual Power Moving by Car or Truck Tow Use Hydraulic Manual Towable Boom Lift Instead of Ladd OEM Lift Height, Traction Drive, Lift Power Safety Parts Manual Down, Double Brake System Spare Parts Oil Ring, Seal Ring, Travel Switch Transport Package Film Packed and Load in One 20FT Container Specification package size 5.4*1.6*1.9m Trademark MORN BRAND Origin China HS Code 8428909090 Production Capacity 10 Sets Per MonthProduct Description

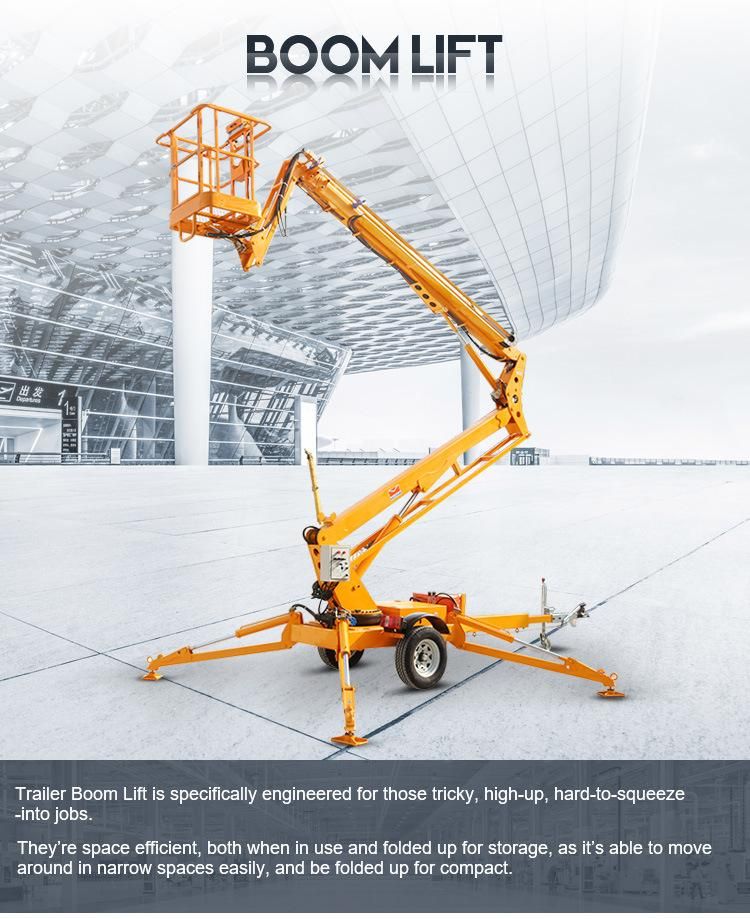

MORN CChina 10m 12m 14m 16m 18m articulated trailer boom lift for sale
Basic Parameters:
| Item | ATB0.2-16 |
| Platform size(mm) | 900*700 |
| Rated capacity(kg) | 200 |
| Lifting height (m) | 16 m |
| Max. work height (m) | 18 m |
| Horizontal length(m) | 11 m |
| Guardrail height (m) | 1.1 |
| Turn around angle(°) | 360 |
| Power | AC / DC/ Engine / Dual power optional |

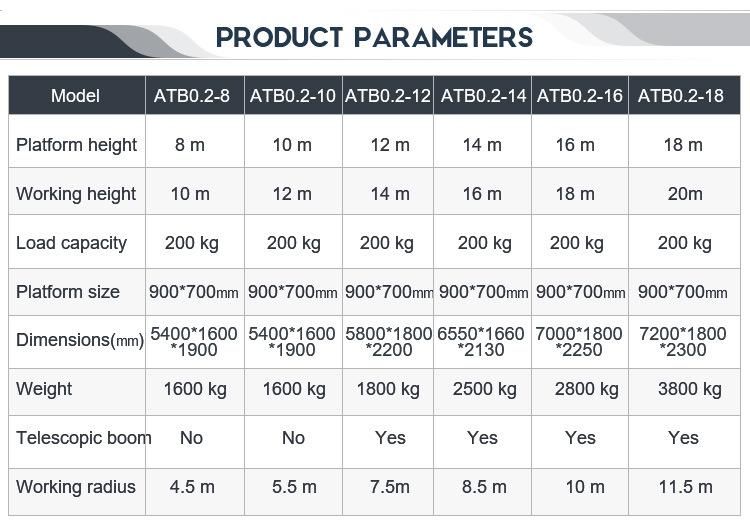

Model List
| Model | Platform Size (mm) | Lifting Height (m) | Load Capacity (kg) | Working Radius (m) | Overall Size (mm) | Weight (kg) |
| ATB-8 | 900*700 mm | 8 m | 200 kg | 5.5 m | 5200*1680*2100 | 1850 kg |
| ATB-10 | 900*700 mm | 10 m | 200 kg | 5.5 m | 5200*1680*2100 | 1850 kg |
| ATB-12-1 | 900*700 mm | 12 m | 200 kg | 6.5 m | 6200*1680*2100 | 1950 kg |
| ATB-12-2 | 900*700 mm | 12 m | 200 kg | 8 m | 4700*1680*2100 | 2100 kg |
| ATB-14 | 900*700 mm | 14 m | 200 kg | 8.5 m | 5700*1680*2100 | 2400 kg |
| ATB-16 | 900*700 mm | 16 m | 200 kg | 11 m | 5700*1680*2200 | 2500 kg |
| ATB-18 | 900*700 mm | 18 m | 200 kg | 11 m | 6500*1800*2250 | 3800 kg |
