• Model NO.：LRL2-4.2
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Platform：Antiskid
• Installation：Platform in Pit
• Pit Depth：200mm
• Color：Red, Green, Blue or as Your Requirements
• Guardrail Height：1100mm
• Stops：2
• Chain：16A
• Lift Speed：3-6m,Min
• Installation Well：1700mm*1400mm
• Loading & Unloading：From 1700mm Side
• Transport Package：Nude Packing or According Your Requirement
• Specification：CE, ISO
• Trademark：MORN
• Origin：China
• HS Code：8428909090
• Production Capacity：280 Units ,Year

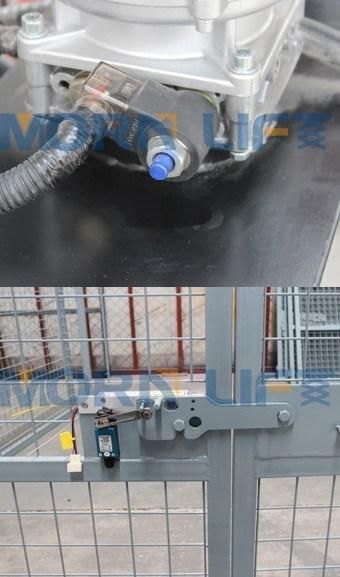

Manual Decline Valve
In case of the failure of electricity supply, the platform  will be suspended in midair. Then we could manually  make the platform come down to Ground floor by  the Manual Decline Valve. Prevent potential danger.

Interlocking System

Only all doors closed, the freight elevator work. If any door open, the lift will not move. It prevent worker's misoperation and potential damage to workers.

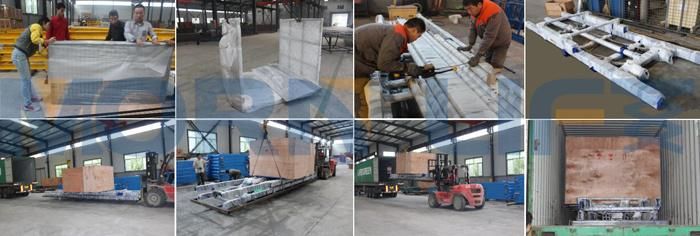

Packing & Shipping
---Film package to prevent humidity and rust.
---Iron frame to keep warehouse goods lift stable in container.
---Plywood to prevent warehouse goods lift from colliding. Convenient for forklift delivery.
---Delivery time: within 25 working days after we receive the payment.




Model List

Freight elevator is customizable in loading capacity, platform size, and lifting height for your individual requirements.

Model	Lifting height	Load capacity	Platform size
LRL3-2.4	2.4m	3000kg	2*2m
LRL2-5	5.0m	2000kg	2.1*1.2m
LRL1-4.5	4.5m	1000kg	2.1*1.5m
LRL5-6.5	6.5m	5000kg	2.2*1.6m
LRL3-6.5	6.5m	3000kg	2.2*1.9m
LRL1.5-3.4	3.4m	1500kg	225*2.1m
LRL0.5-7.62	7.62m	500kg	0.76*0.76m
LRL1-5.2	5.2m	1000kg	1.5*1.25m
LRL0.5-3.1	3.1m	500kg	1.0*0.8mm
LRL2-6.5	6.5m	2000kg	2.2*1.9m
LRL4-9.75	9.75m	4000kg	1.9*2.25m
LRL2-9	9.0m	2000kg	2.3*2.1m

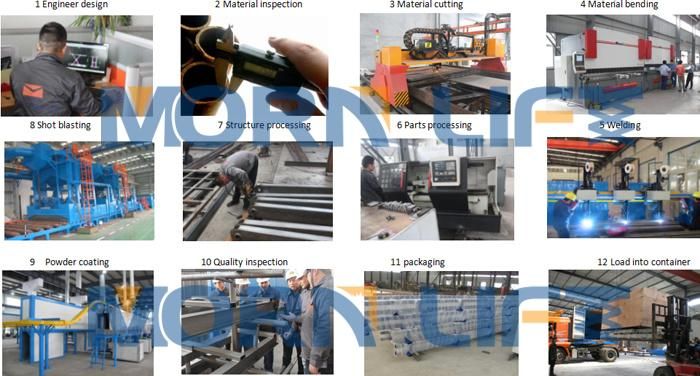

Manufacturing Technology & Trocess

1. MORN production process is controlled by strict Inner Quality Control System.
2. Apply to CE standard.
3. Full set of CNC manufacturing equipment, standard production lines and fast delivery.
4. MORN technical team provide professional design drawing for the confirmation with the user in  case of any misunderstanding.
5. MORN do rust-removing by shot blasting machine which lengthen use-life of goods lift.
6. MORN do painting by powder coating machine, which prevent from getting rusty to extend the using life.




MORN service:

1) Installation drawing and manual will be provided after the order.
2) All the machines will be full tested before shipment.
3) The total machine guarantee is 12 moths.
4) 24 Hours technical support, email, telephone or video online.
5) User-friendly English manual for machine using and maintaining.
6) Several sets wearing parts will be free for you.
