Concrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy Duty

WUXI TONGYANG MACHINERY TECHNOLOGY CO., LTD.
  • Warranty：12 Months
  • Lifting Capacity：1500-3000kg
  • Power Source：Hydraulic
  • Shape：Round
  • Certification：CE
  • Sling Color：Orange

Base Info

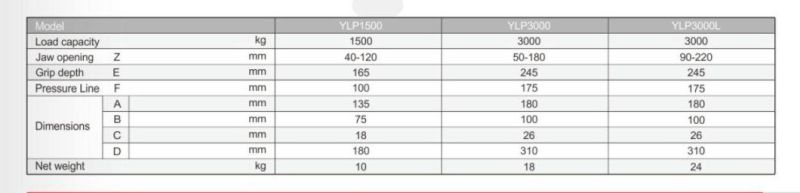

  • Model NO.：YLP Series
  • Rated Capacity：1500-3000kg
  • Jaw Opening：40-120,50-180,90-220mm
  • Grip Depth：165,245mm
  • Transport Package：Carton + Pallet
  • Trademark：YINGLIFT
  • Origin：China
  • HS Code：8425110000
  • Production Capacity：10000 Pieces,Year

Description

Basic Info.

Model NO. YLP Series Rated Capacity 1500-3000kg Jaw Opening 40-120/50-180/90-220mm Grip Depth 165/245mm Transport Package Carton + Pallet Trademark YINGLIFT Origin China HS Code 8425110000 Production Capacity 10000 Pieces/Year

Product Description

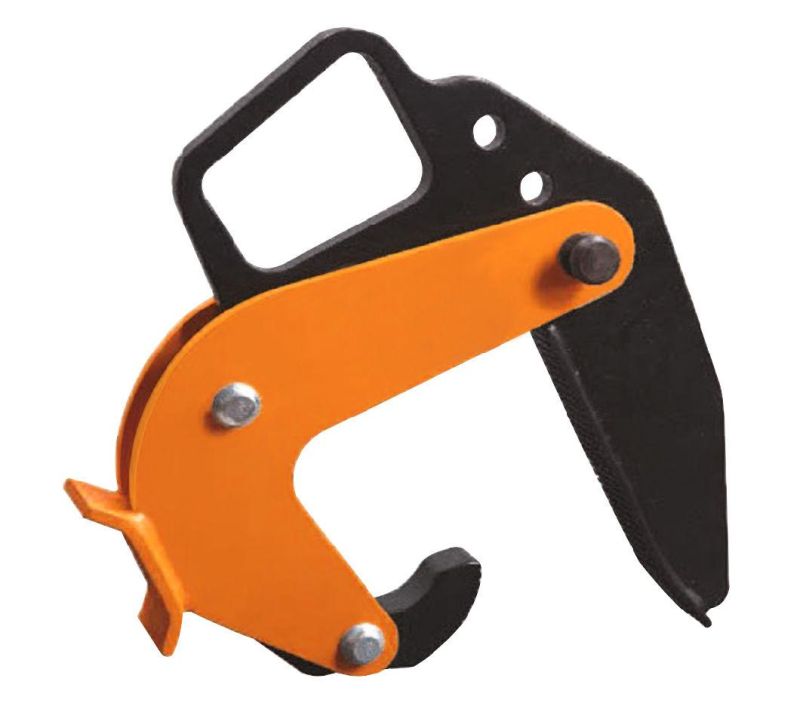

Concrete Pipe Lifting Clamp
1.Lifting Clamp for the vertical transport of concrete pipe and culverts must be very vertiatile.
2.Most important it must be absolutely safet and easy to handle under even the harshest conditions.

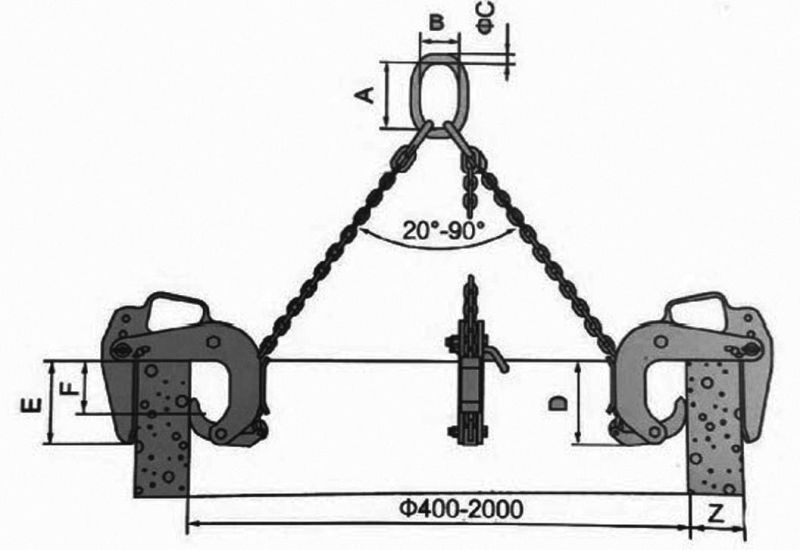

3.It is a three-legged lifting system for the safe and non-marring transport of concrete pipes up to a diameter of 2000mm and load of up to 3t.
4.The jaw capacity is designed for concrete pipe thickness from 40-200mm.
5.Attachment and removal of the clamps can be done easily due to the handles that have been incorporated into each clamp.
6.Solid Construction.
7.Type-tested4:1 against breakage.
8.For heavy duty us, but light weight design.
9.For concrete pipes according to DIN4034.
Concrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy Duty
Concrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy Duty
Concrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy Duty

Concrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy DutyConcrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy DutyConcrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy DutyConcrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy DutyConcrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy DutyConcrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy DutyConcrete Pipe Lifting Clamp for The Vertical Transport Load Capacity Heavy Duty
FAQ:
1.Q.Are you factory?

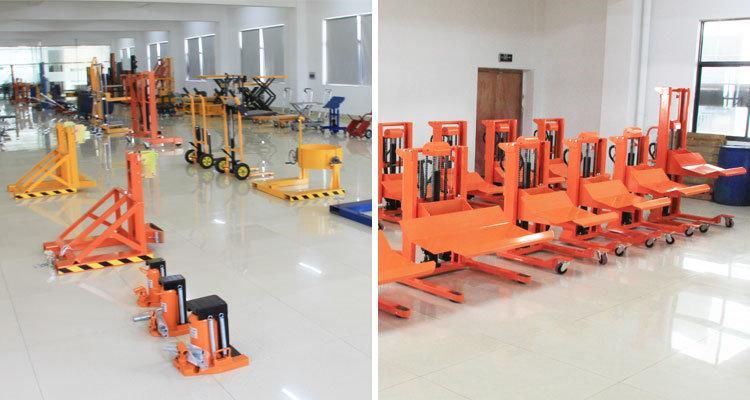

   A.Yes.Our factory mainly produce drum handling equipment,drum stacker,drum truck,aluminum hand trolley ,kinds lift table ,forklift attachment and shop crane with CE approved, pasted Third-party certification(SGS/ISO9001).
2.Q.Can I place mix order?
   A.Yes.You can mix different models as your request.
3.Q.Can we order products?
   A.Yes. Customers can option size,color,weighing,panel etc.Welcome ODM/OEM orders.
4.Q.Can we visit your factory?

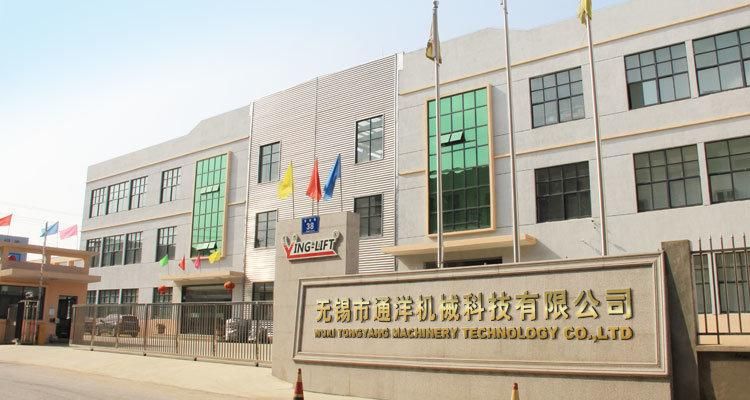

   A.Welcome anytime .Our factory address:No. 38, Yansheng Road, Yanqiao Industrial Park,Huishan District,Wuxi,Jiangsu,China (Mainland) .You can take the plane, high-speed rail, motor car, train, car.
5.Q.Are the products covered by a warranty?
   A.Yes.All our machines carry a full 1 year major parts warranty.

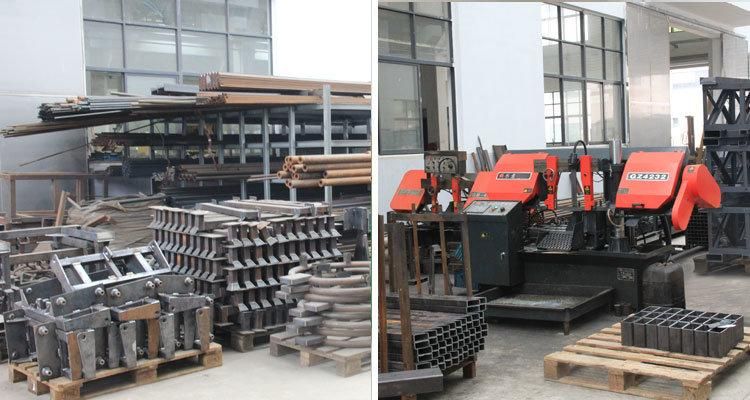

Quality Control in our Wuxi Tongyang:
The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1) Strict quality control system on the whole process of production
2) Imported key arts to ensure the high quality of our products
3) Advanced equipment and tools for examination and quality control
4) 100% strict examining products before shipment
5) All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
