• Model NO.：TC10A
• Beam Flange Width：61-151mm
• Beam Flange Thickness：15mm
• Transport Package：Carton +Pallet
• Trademark：YINGLIFT
• Origin：China
• HS Code：8425110000
• Production Capacity：50000 Pieces,Year

Basic Info.

Model NO. TC10A Beam Flange Width 61-151mm Beam Flange Thickness 15mm Transport Package Carton +Pallet Trademark YINGLIFT Origin China HS Code 8425110000 Production Capacity 50000 Pieces/Year

Product Description

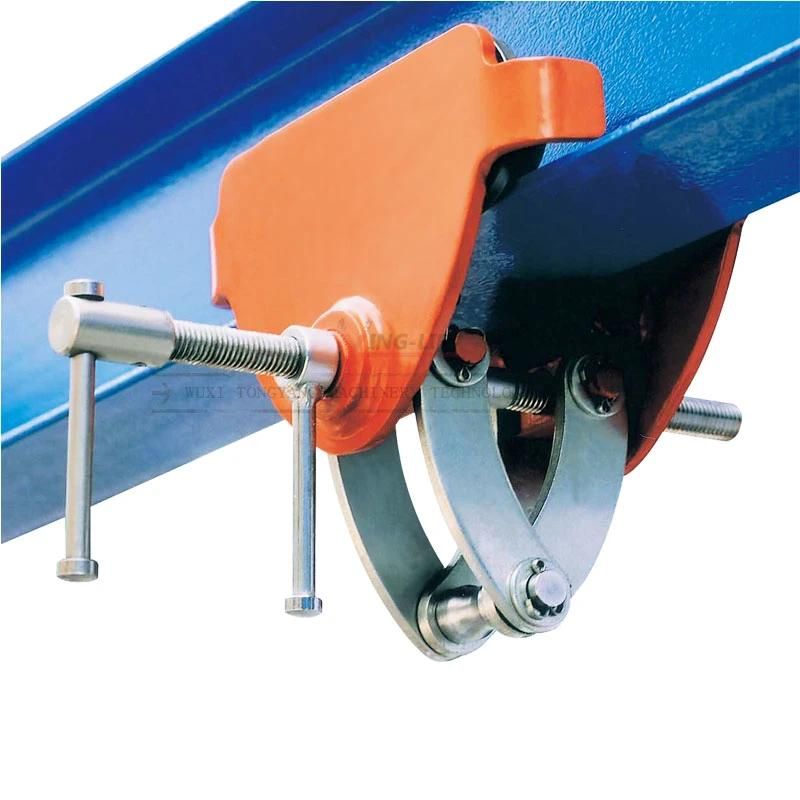

Clamp Trolley

1. The easy installation to any beam makes it suitable for fixing to any moving hoist, pulleys and loads.

2. It can be adjusted quickly to the beam width by turning the main spindle.

3. Safety is ensured by the special locking lever.

4. The spindle and snap-pin stops are galvanized to protect against corrosion.

5. Conforms to CE safety standard.

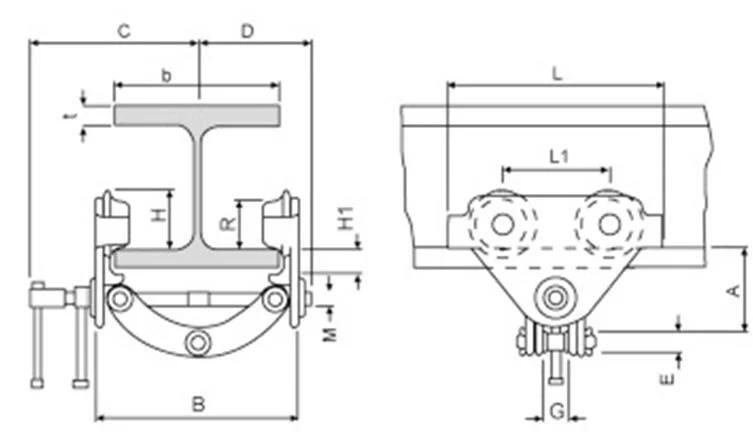

Model	TC10A	TC20A	TC20B	TC30A	TC30B
Capacity                                 kg	1000	2000	2000	3000	3000
Beam Flange Width               mm	61-151	74-200	199-300	75-200	200-320
Beam Flange Thickness       mm	15	25	25	25	25
Dimension A                          mm	81-108	89-154	135-190	128-171	150-212
G                                            mm	26	42	42	50	50
E                                            mm	22	20	20	22	22
H                                            mm	20	30	30	30.5	30.5
H1                                          mm	53	71.5	71.5	95.5	95.5
L                                             mm	160	260	260	310	310
L1                                           mm	75	130	130	150	150
M                                            mm	M12	M18	M18	M24	M24
R                                            mm	46	60	60	80	80
C                                            mm	153	205	255	220	280
D                                            mm	105	139	189	155	215
Net Weight                             kg	2.5	9.9	10.3	17.5	19.5






FAQ:
1.Q.Are you factory?
   A.Yes.Our factory mainly produce drum handling equipment,drum stacker,drum truck,aluminum hand trolley ,kinds lift table ,forklift attachment and shop crane with CE approved, pasted Third-party certification(SGS/ISO9001).
2.Q.Can I place mix order?
   A.Yes.You can mix different models as your request.
3.Q.Can we order products?
   A.Yes. Customers can option size,color,weighing,panel etc.Welcome ODM/OEM orders.
4.Q.Can we visit your factory?
   A.Welcome anytime .Our factory address:No. 38, Yansheng Road, Yanqiao Industrial Park,Huishan District,Wuxi,Jiangsu,China (Mainland) .You can take the plane, high-speed rail, motor car, train, car.
5.Q.Are the products covered by a warranty?
   A.Yes.All our machines carry a full 1 year major parts warranty.

Quality Control in our Wuxi Tongyang:
The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1) Strict quality control system on the whole process of production
2) Imported key arts to ensure the high quality of our products
3) Advanced equipment and tools for examination and quality control
4) 100% strict examining products before shipment
5) All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
