Lifting Equipment

Home > Product > Lifting Table

Parking Hydraulic Lifting Table for Carry Pallet Lift

Jinan PLK Machinery Co., Ltd.
  • After-sales Service：Online Service, Free Express Accessories.
  • Warranty：12 Months
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Weight Level
  • Moves：Stationary

Base Info

  • Model NO.：HU
  • Driven Type：Hydraulic
  • Running Mode：Stationary
  • Feature：Explosion-Proof, Insulating
  • Certification：CE, RoHS, ISO 9001
  • Power：Hydraulic & Electric
  • Voltage：1 Phase,3 Phase
  • Operation：Control Handle
  • Structure：Steel
  • Lifting Speed：4-6m,S
  • Package：Wooden
  • Product Name：Platform Lift
  • Control：Control Box
  • Platform：Anti-Skid Checkered Plate
  • Install：in Pit or on Ground
  • Working Condition：Indoor Outdoor
  • Transport Package：Wooden Pallet and High Quality Paper Boxes with St
  • Specification：1450*985*100
  • Trademark：PLK LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：5000

Description

Basic Info.

Model NO. HU Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof, Insulating Certification CE, RoHS, ISO 9001 Power Hydraulic & Electric Voltage 1 Phase/3 Phase Operation Control Handle Structure Steel Lifting Speed 4-6m/S Package Wooden Product Name Platform Lift Control Control Box Platform Anti-Skid Checkered Plate Install in Pit or on Ground Working Condition Indoor Outdoor Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 5000

Product Description


Parking Hydraulic Lifting Table For Carry Pallet LifterPLKLIFT Brands U Shape Scissor Lift Table are one of the most ideal equipment to lift goods within production lines and manufacturing environments.It is widely used in the warehouse, factory etc, to help people lifting the wooden or plastic pallet. lift

We produce the U shape scissor lift from 600kg~1500kg,also we can customize the products according to your specific requirement.

Data Sheet
ModelLoad Capacity(kg)Max. Platform Height (mm)Min. Platform Height (mm)Platform Size (mm)Size A (mm)Size B (mm)Size C (mm)Base Size (mm)Lifting time(s)Voltage (v)Net weight
(KG)
HU600600860851450x98520010805851335x94725-35customized207
HU10001000860851450x114028010805801335x94725-35customized280
HU150015008601051600x118030011945801335x94730-40customized380

This scissor lift table equipped with safety valve, to protect the safety both for goods and user. And the max. platform height is 860mm ,making the work more convenient.

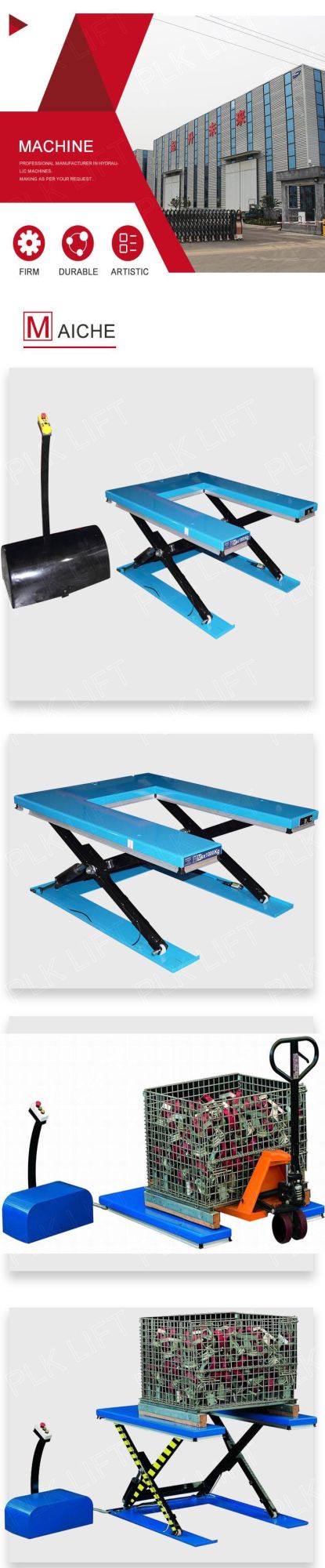

Product Show
Parking Hydraulic Lifting Table for Carry Pallet Lift

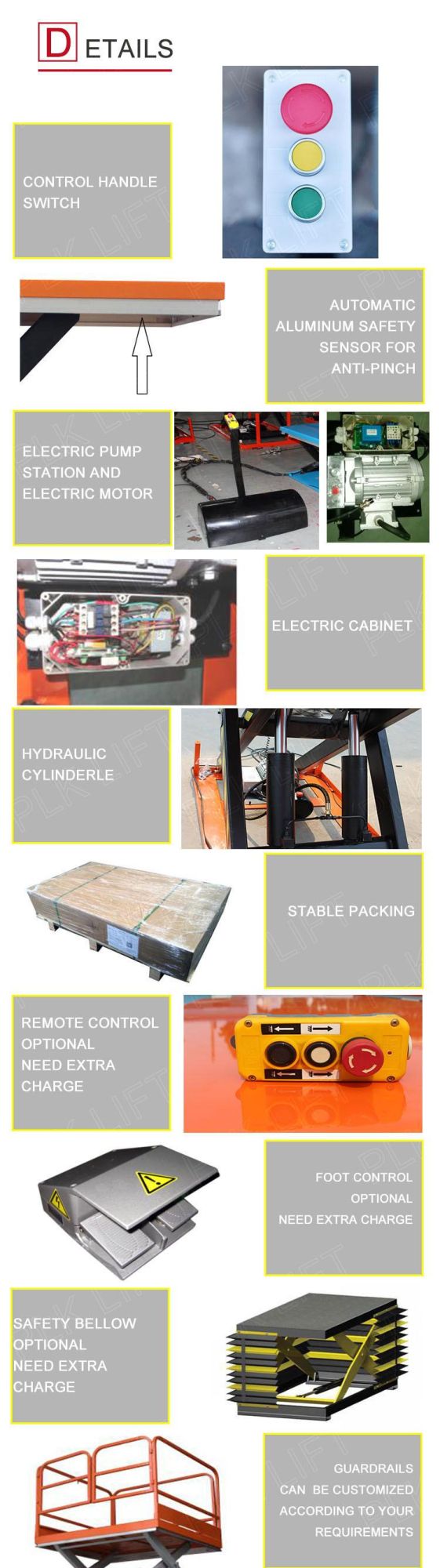

Details Show
Parking Hydraulic Lifting Table for Carry Pallet Lift

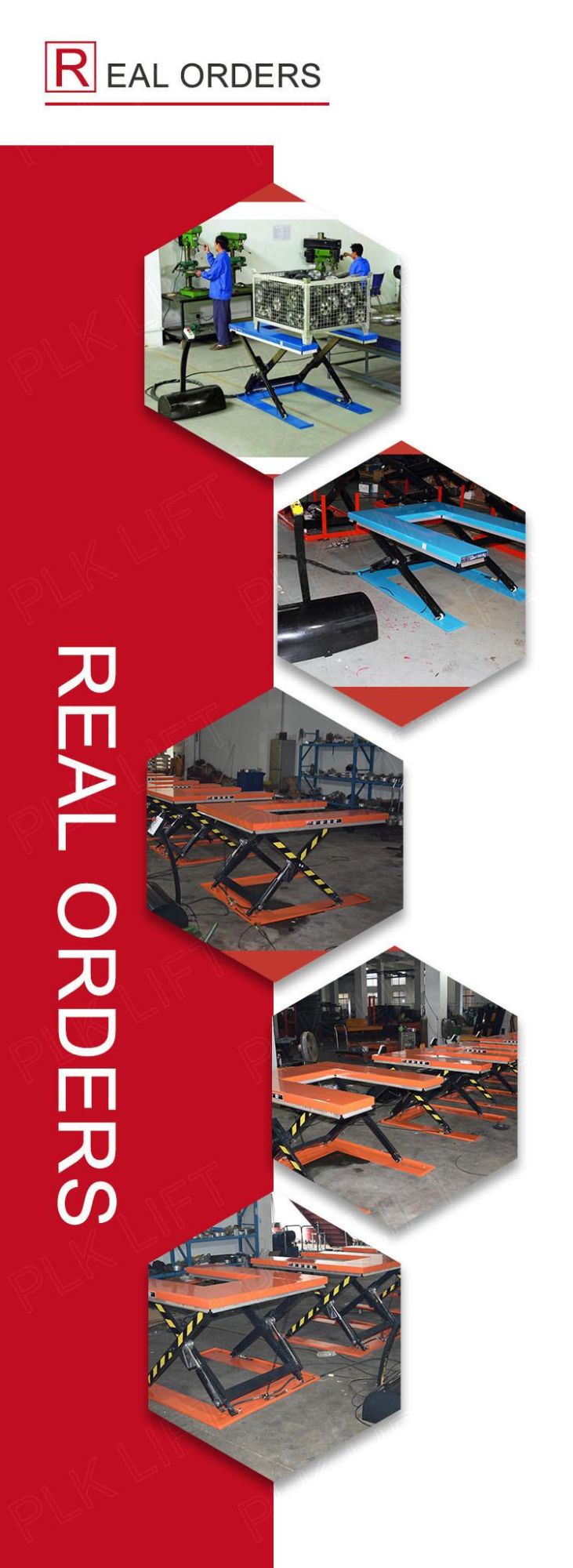

Bulk Order Show
Parking Hydraulic Lifting Table for Carry Pallet Lift

Factory Show
Parking Hydraulic Lifting Table for Carry Pallet LiftContact Information:
