• Model NO.：HU
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating
• Certification：CE, RoHS, ISO 9001
• Power：380V,50Hz
• Base Size Lxw：1335*947
• Net Weight(Kg)：207 280 380
• Lifting Time(S)：25-35 30-40
• Transport Package：Wooden Pallet and High Quality Paper Boxes with St
• Specification：1450*985*100
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. HU Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof, Insulating Certification CE, RoHS, ISO 9001 Power 380V/50Hz Base Size Lxw 1335*947 Net Weight(Kg) 207 280 380 Lifting Time(S) 25-35 30-40 Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500 Sets/Month

Product Description

U Shape Hydraulic Pump Electric Scissor Lift TablePLKLIFT Brands U Shape Scissor Lift Table are one of the most ideal equipment to lift goods within production lines and manufacturing environments.It is widely used in the warehouse, factory etc, to help people lifting the wooden or plastic pallet. LIFT
We produce the U shape scissor lift from 600kg~1500kg,also we can customize the products according to your specific requirement.
Data Sheet

Model	Load Capacity(kg)	Max. Platform Height (mm)	Min. Platform Height (mm)	Platform Size (mm)	Size A (mm)	Size B (mm)	Size C (mm)	Base Size (mm)	Lifting time(s)	Voltage (v)	Net weight (KG)
HU600	600	860	85	1450x985	200	1080	585	1335x947	25-35	customized	207
HU1000	1000	860	85	1450x1140	280	1080	580	1335x947	25-35	customized	280
HU1500	1500	860	105	1600x1180	300	1194	580	1335x947	30-40	customized	380

This scissor lift table equipped with safety valve, to protect the safety both for goods and user. And the max. platform height is 860mm ,making the work more convenient.

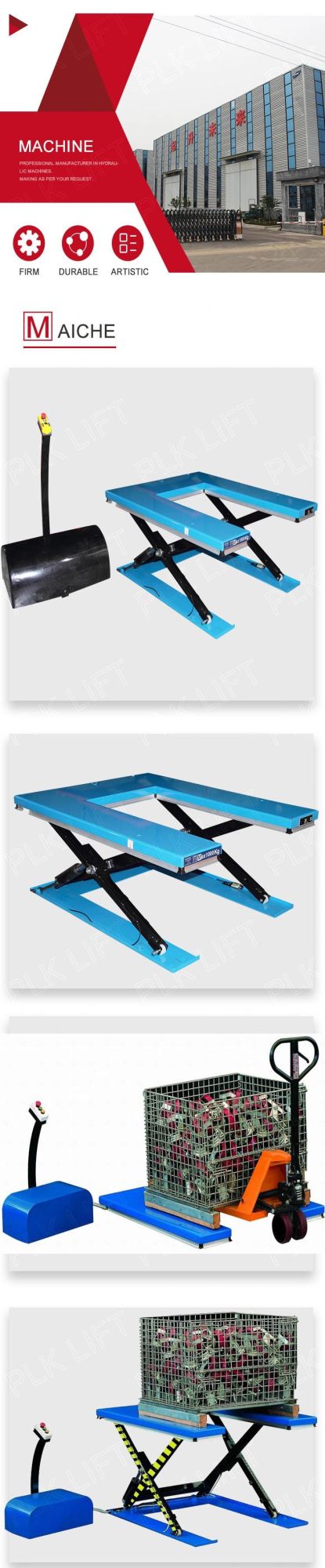

Product Show

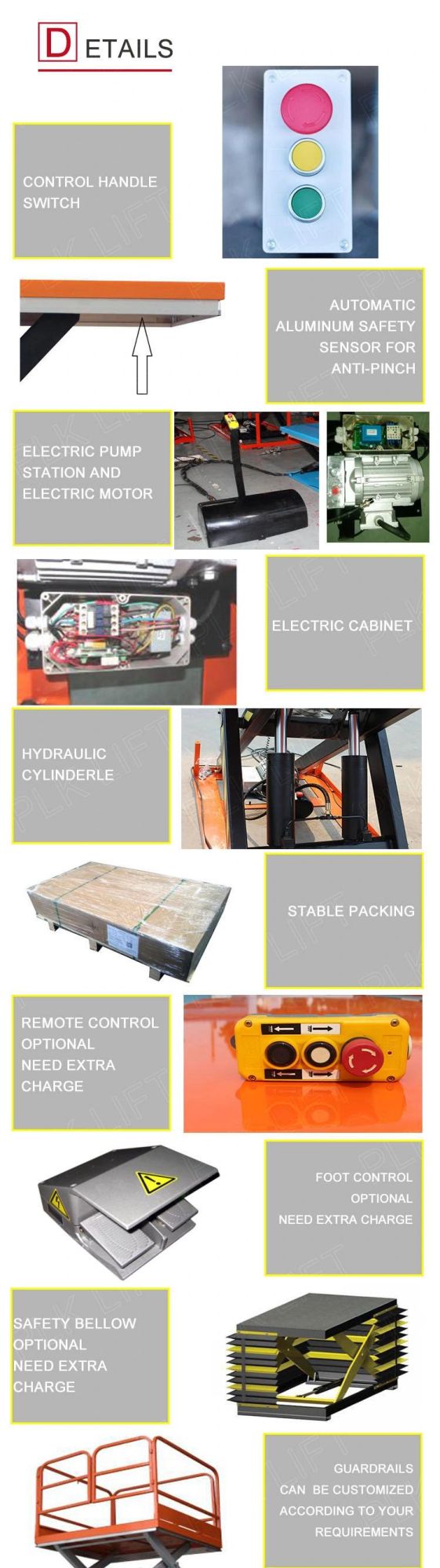

Details Show


Bulk Order Show


Factory Show
