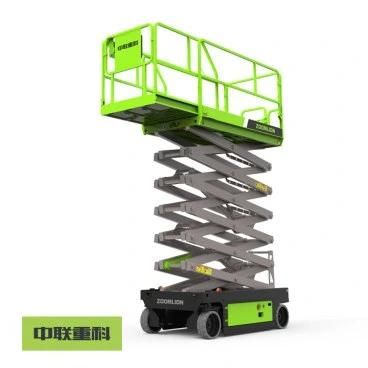

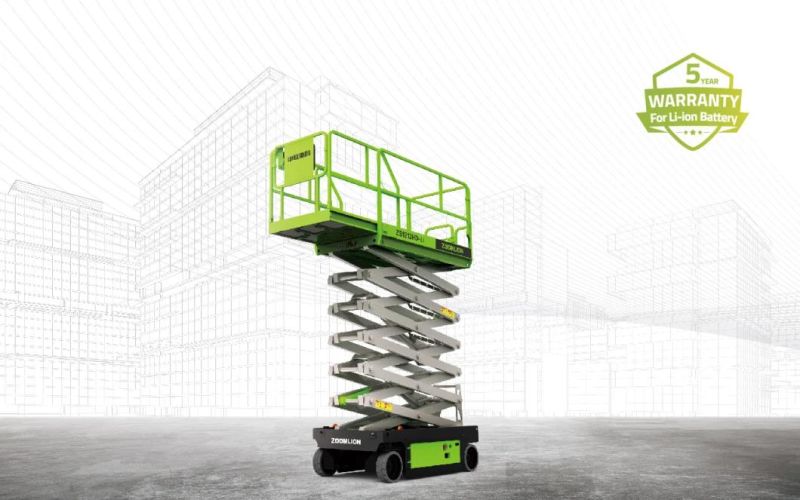

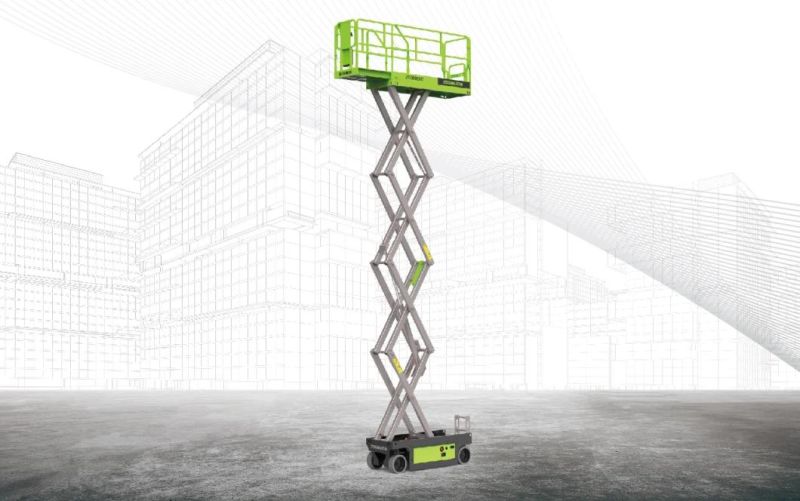

China Zoomlion Hydraulic Scissor Lifts Aerial Work Platform

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Application：Workshop Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Middle-Level
  • Moves：Moving
  • Driven Type：Hydraulic
  • Running Mode：Moving

Base Info

  • Model NO.：ZS1414HD
  • Certification：GS, CE, RoHS, ISO 9001
  • Transport Package：in Nude
  • Specification：2.87*1.4m*2.1m
  • Trademark：Zoomlion
  • Origin：China
  • Production Capacity：5000PCS,Year

Description

Comply with CE/ANSI/GB StandardModelZS1414HDSizeWork Height15.7mA - Platform   Height-Elevated13.7mB - Platform   Height-Stowed1.53mC - Platform   Length2.67mD - Platform Width1.12mPlatform Extension0.9mE - Overall Height (Rails Up)2.65mOverall Height (Rails Down)2.1mF - Overall Length2.87mG - Overall Width1.4mH - Wheelbase2.22mI - Ground Clearance (Stowed)0.11mJ - Ground   Clearance (Raised)0.02mPerformancePlatform Capacity260kgCapacity on Deck Extension113kgMax. Number of Workers2Drive Speed (Stowed)3.5km/hDrive Speed (Raised)0.8km/hTurning Radius (Inside)0.1mTurning Radius (Outside)2.6mUp/Down Drive Motor24V/4.5KWUp/Down Time88/60sGradeability25%Max. Working Slope (Lateral/Vertical)1.5°/3°ControlProportional   ControlDriveFront WheelsBrakeRear WheelsTire381mmX127mmPowerBattery4×12V/300AhCharger24V/30AWeightGross3540kg China Zoomlion Hydraulic Scissor Lifts Aerial Work Platform
