Hsz-CD Hand Chain Vertical Hoist, Manual Block, Hand Lift
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Small Crane
- Type：Chain Hoist
- Sling Type：Chain
- Certification：CE, ISO9001:2000, TUV, SGS
- Name：1 Ton Hand Chain Vertical Hoist Hsz-CD Blocks
- Factory：More Than 20 Years Manufactory Experience
Base Info
- Model NO.：HSZ-CD
- Brand Name：Hugo
- Hook：Forged
- Chain：G80
- Delivery Time：15 Days
- Warranty：2 Years
- Painting Color：as Your Wish
- Loading Port：Shanghai Port Tianjin Port
- After-Sales Service Provided：Overseas Services Peovided
- Transport Package：Packing by Carton, Woodon Case
- Specification：CE, ISO, TUV, SGS
- Trademark：HUGO
- Origin：China-Shanghai
- HS Code：8425190000
- Production Capacity：100000PC,Month
Description
Basic Info.
Model NO. HSZ-CD Brand Name Hugo Hook Forged Chain G80 Delivery Time 15 Days Warranty 2 Years Painting Color as Your Wish Loading Port Shanghai Port Tianjin Port After-Sales Service Provided Overseas Services Peovided Transport Package Packing by Carton, Woodon Case Specification CE, ISO, TUV, SGS Trademark HUGO Origin China-Shanghai HS Code 8425190000 Production Capacity 100000PC/MonthProduct Description
1 Ton Hand Chain vertical hoist HSZ-CD Block
The introduction of 1 Ton Hand Chain vertical hoist HS-CD Blocks
HSZ-CD chain hoist adapts Japanese technology, designed according to the need of market, driving more smoothly andavoiding chain block etc. It is more powerful and labor saving. Warmly welcomed by our clients home and abroad.

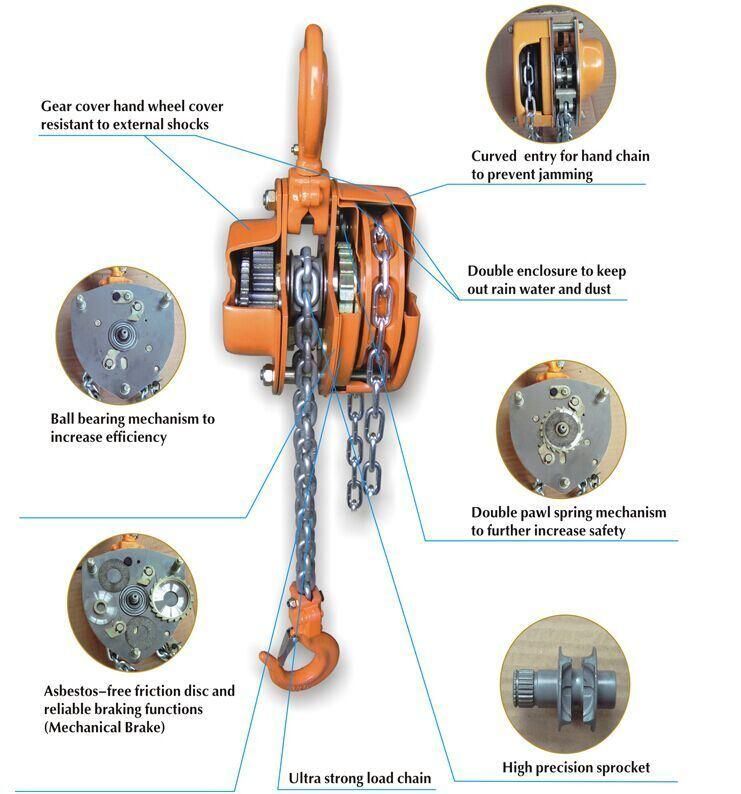

2. Feature
1) More labor saving, low noise
2) Light in Weight
3) Compact structure
4) Forged drop Hook
5)Ratchet type brake warrants, safe and dependable operation
6) G80 chain Long life
100% test before shipping
The pictures of 1 Ton Hand Chain vertical hoist HSZ-CD Block
| Model | HSZ-CD1/2 | HSZ-CD1 | HSZ-CD1 1/2 | HSZ-CD2 | HSZ-CD3 | HSZ-CD5 | HSZ-CD10 | HSZ-CD20 | HSZ-CD30 | HSZ-CD50 |
| Capacity T | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Standard liftng Height M | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 |
| Test load T | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | 27.5 | 62.5 |
| Min distance betweeb Hook mm | 270 | 270 | 368 | 444 | 486 | 616 | 700 | 890 | 980 | 1300 |
| Full Load Pull N | 225 | 309 | 343 | 314 | 343 | 383 | 392 | 392 | 450*2 | 450*2 |
| Chain Full | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | 12 | 22 |
| Dia of Chain mm | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | 10 | 10 |
| Gw kg | 12 | 13 | 20 | 17 | 28 | 45 | 83 | 193 | ||
| Packing size (L*W*H cm) | 28 × 21 × 17 | 30 × 24 × 18 | 34 × 29 × 20 | 33 × 25 × 19 | 38 × 30 × 20 | 45 × 35 × 24 | 62 × 50 × 28 | 70 × 46 × 75 | ||
| Extra weight per meter of extra lift kg | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 | 28.3 | 50 |
