High Quality China Telescopic Loader (HQ920T) with High Position Work Platform

Weifang Haiqin Top Machinery Co., Ltd.
  • Loading Weight：2000kg
  • Engine：Yunnei, Euro 5 , Cummins , EPA 4
  • Length：6000mm
  • Width：2050mm
  • Height：2750mm
  • Operation：Joystick Handle

Base Info

  • Model NO.：HQ920T
  • Transport Package：2 Units in a Hq40 Container
  • Specification：CE, ISO, SGS, ROPS & FORPS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：8000 Units , Year

Description

Basic Info.

Model NO. HQ920T Transport Package 2 Units in a Hq40 Container Specification CE, ISO, SGS, ROPS & FORPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 8000 Units / Year

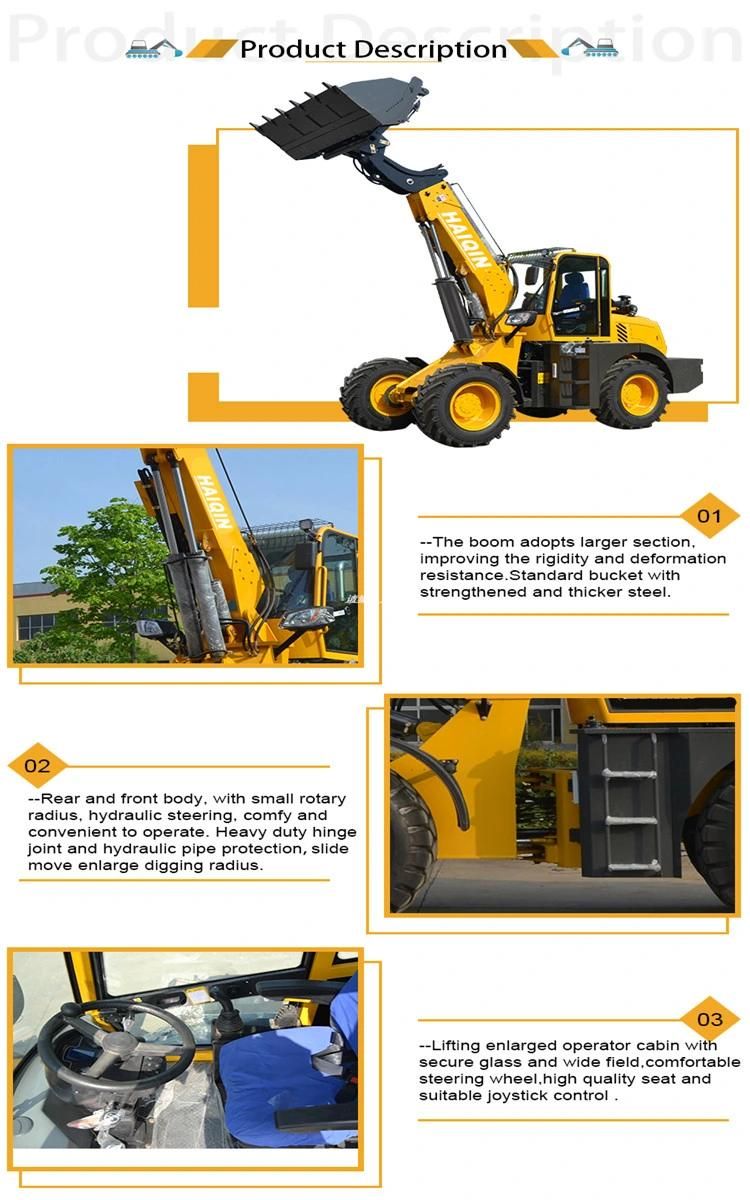

Product Description

Strong Telescopic forklift Loader (HQ920T) with Euro 5 engine
High Quality China Telescopic Loader (HQ920T) with High Position Work Platform




1, Details Specifications of HQ920T Telescopic forklift Loader

1.0 Engine Details
(1) Model:  Standard China YUNNEI engine ; Euro 5 or  Cummins or EPA 4 engine for option
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 65KW
(4) Rated Speed: 2400 r/p. Min (rpm)

2.0 Transmission System:Hydraulic converter + drive shaft + Big reduction axles

3.0 Bucket
(1) Bucket Capacity: 1.1 m3
(2) Bucket width: 2000mm
(3) Bucket type: Heavy-duty bolt on teeth
(5) Rated Load: 2000kg including attachment

4.0 Overall Dimensions
(1) Overall Length: 6000mm
(2) Overall Height: 2750mm
(3) Overall Width: 2050mm
(4) Max. Lifting Height: 5680mm

5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 5500mm
(3) Driving System: Hydraulic converter, four wheel drive
(4) Quick coupling system
(5) Joystick
(6) Self levering

6.0 Brake System
(1) Service Brake: Disc brake
(2) Parking Brake: Hand operated
7.0 Tyre Model: 16/70-20 .
8.0 Wheelbase: 2500mm
9.0 Track: 1600mm
10. System pressure: 20Mpa; Hydraulic output: 96L/min
11. Operation weight :5700kg

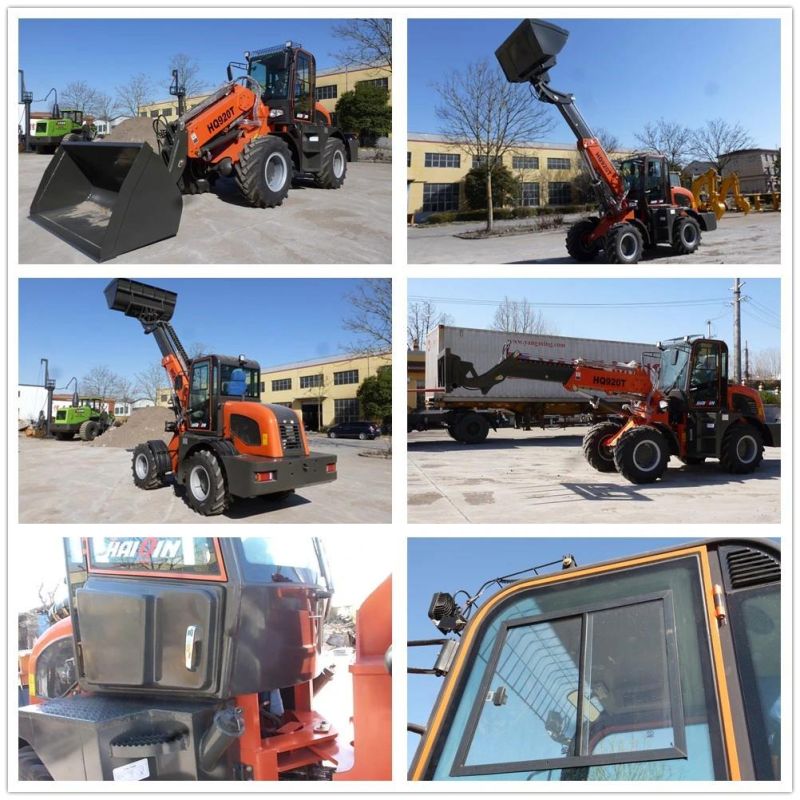

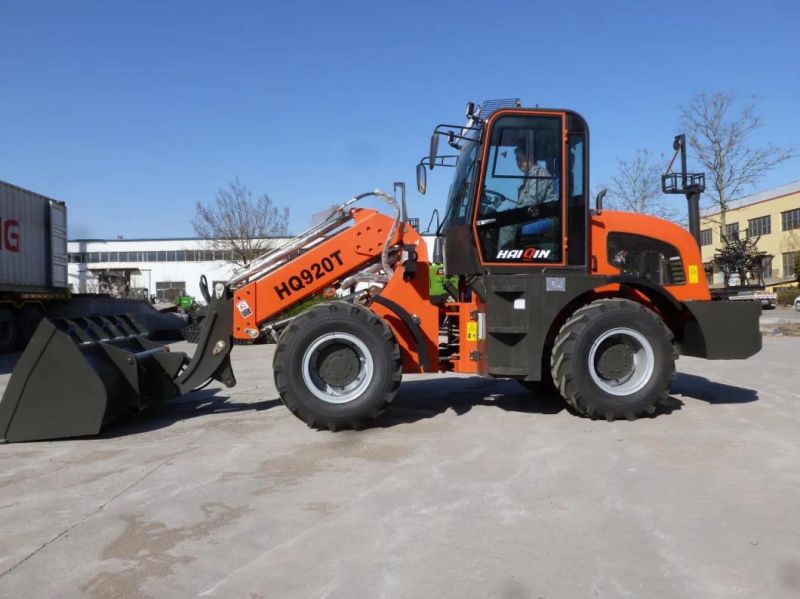

2, Details Photos of HQ920T Telescopic Loader

High Quality China Telescopic Loader (HQ920T) with High Position Work Platform

High Quality China Telescopic Loader (HQ920T) with High Position Work Platform

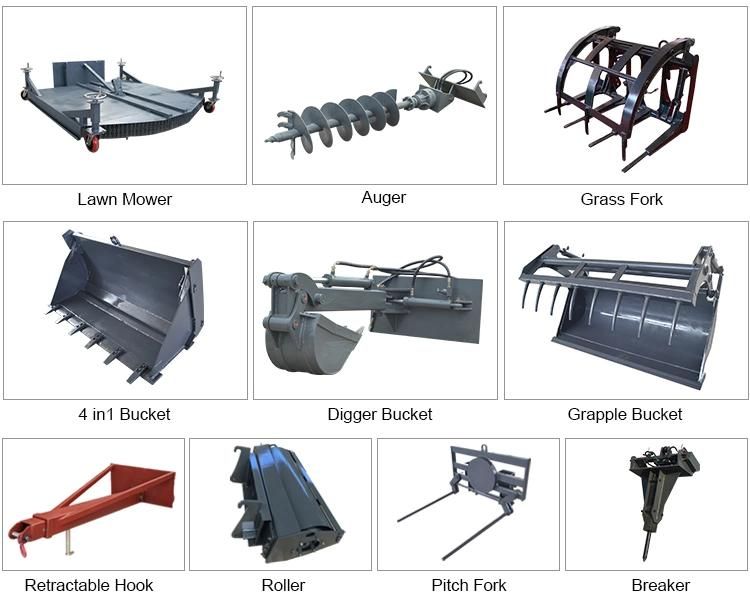

3, Optional Attachments for HQ920T Telescopic Loader

High Quality China Telescopic Loader (HQ920T) with High Position Work Platform

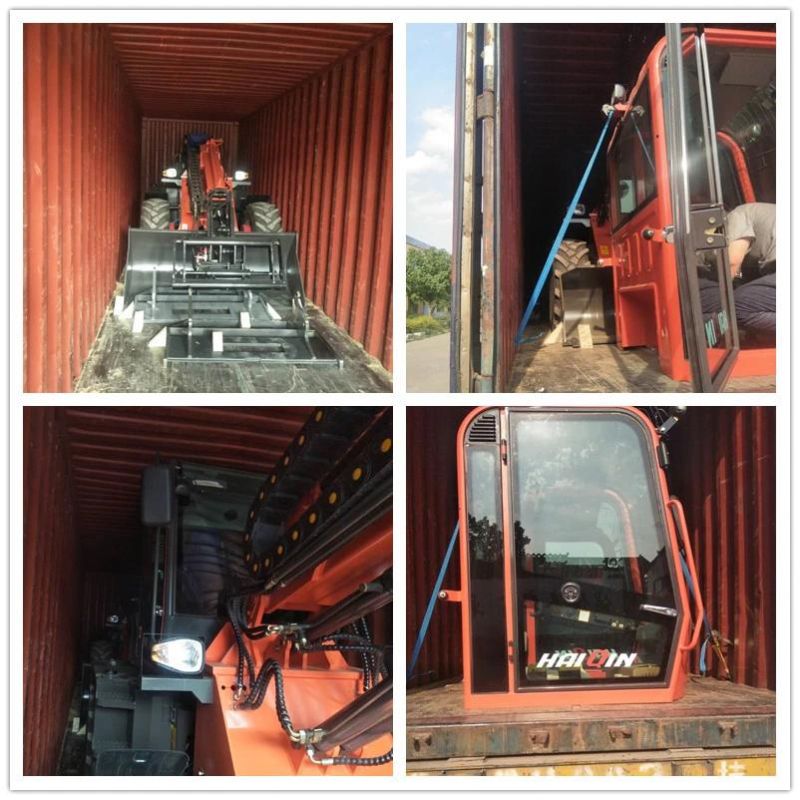

4, Professional Loading and Packing of HQ920T Telescopic Loader

High Quality China Telescopic Loader (HQ920T) with High Position Work Platform

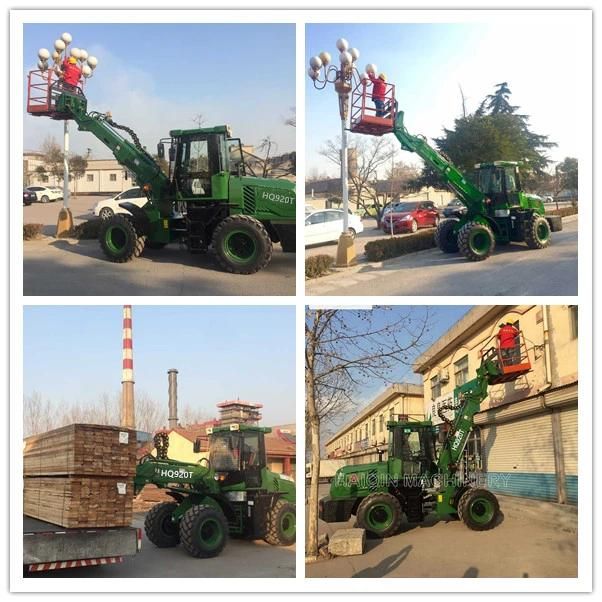

5, Working Case of Haiqin's Telescopic Loaders.
High Quality China Telescopic Loader (HQ920T) with High Position Work Platform

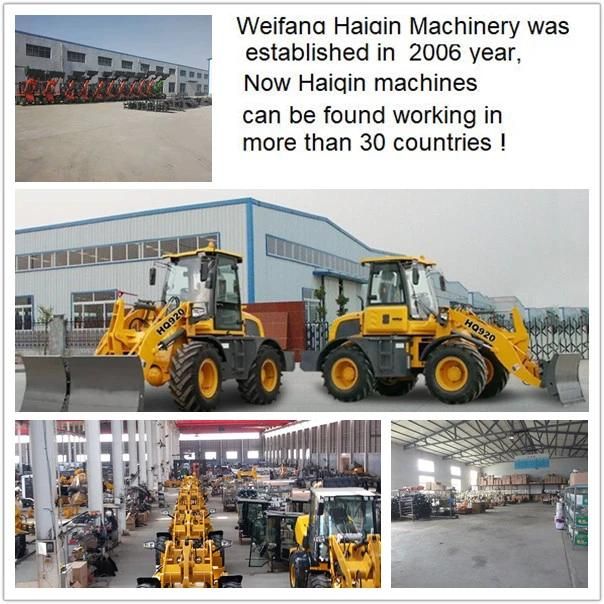

6, Factory introduction of Haiqin Machinery
High Quality China Telescopic Loader (HQ920T) with High Position Work Platform

7,HaiQin Machinery Participating in foreign Machinery Exhibitions
High Quality China Telescopic Loader (HQ920T) with High Position Work Platform

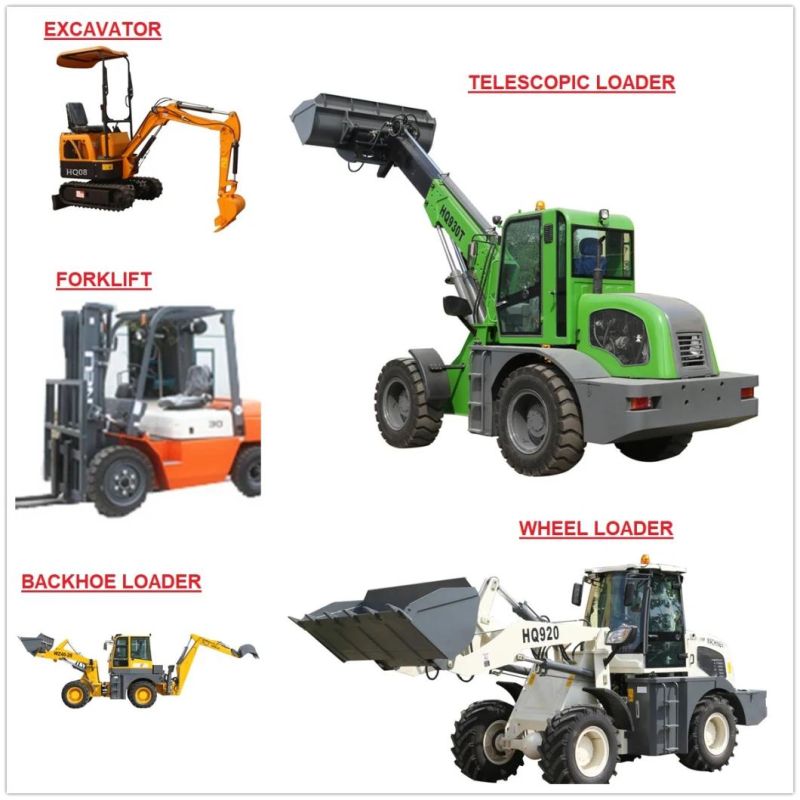

8, MORE PRODUCT CATEGORIES OF HAIQIN MACHINERY
High Quality China Telescopic Loader (HQ920T) with High Position Work Platform
9,Warranty and Service.

HAIQIN loader has One Year Warranty.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures and video, then we will send good/ new parts for your replacements.

Choose HAIQIN, and then better after-service will be guaranteed.

Contact us right now for more information!  Online 24 hours a day!
