• Model NO.：GL-HD-Z
• Drive Motor：24V,900W
• Suction Plate Size：Customized as Need
• Battery：2X12V,70ah to 2X12V,160ah, for Various Modes
• Operation Mode：Walking Type or Self Propelled Type
• Charger：24V,20A
• Working Principle：Hydraulic Lifting and Vacuum Sucking
• Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
• Lift Mechanism：Lift Chain
• Carrying Capacity：Weight Level
• Moves：Moving
• Driven Type：DC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Transport Package：Timer Box
• Specification：6CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：50000 Set Per Year

Basic Info.

Model NO. GL-HD-Z Drive Motor 24V/900W Suction Plate Size Customized as Need Battery 2X12V/70ah to 2X12V/160ah, for Various Modes Operation Mode Walking Type or Self Propelled Type Charger 24V/20A Working Principle Hydraulic Lifting and Vacuum Sucking Application Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane Lift Mechanism Lift Chain Carrying Capacity Weight Level Moves Moving Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Timer Box Specification 6CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 50000 Set Per Year

Product Description

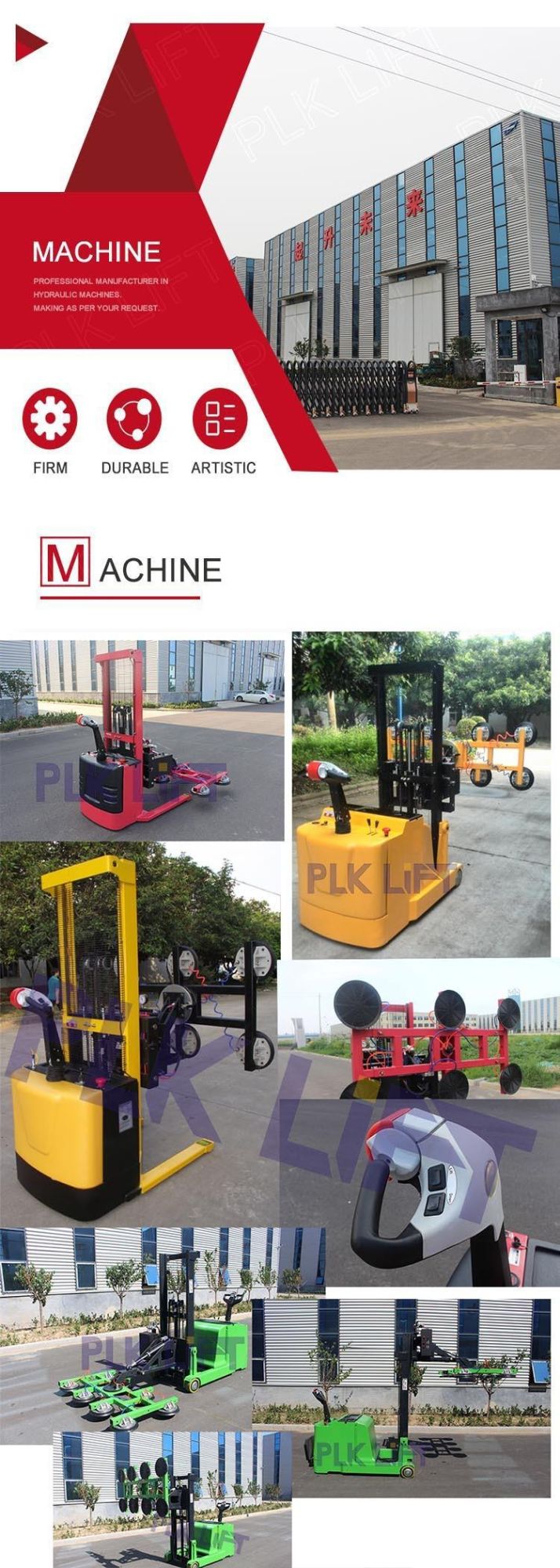

Electric Power Hydraulic Automatic Vacuum Lifter
Introduction:

The hydraulic vacuum lifter is specially design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.
We have standard two series LD models and HD models, with the similar hydraulic lifting system and vacuum sucking system, for different working demands.

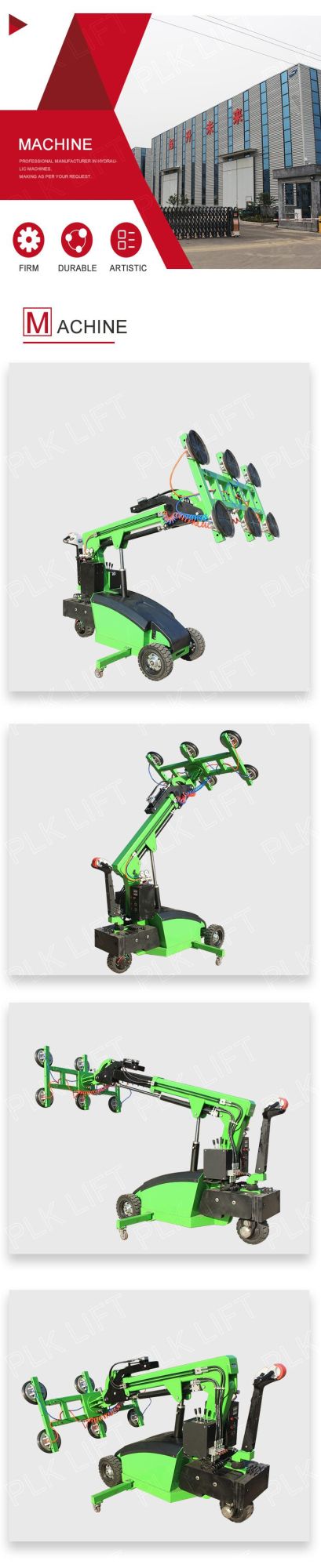

GL-LD series can reach a height of 3.6m,even being customized to 4m.Its boom arm is very flexible with 360° rollover and 180° tilt frame pad.So it's widely used for handle,moving and installing glass,windows,doors and other heavy panels etc. See the details specifications from the data table below.

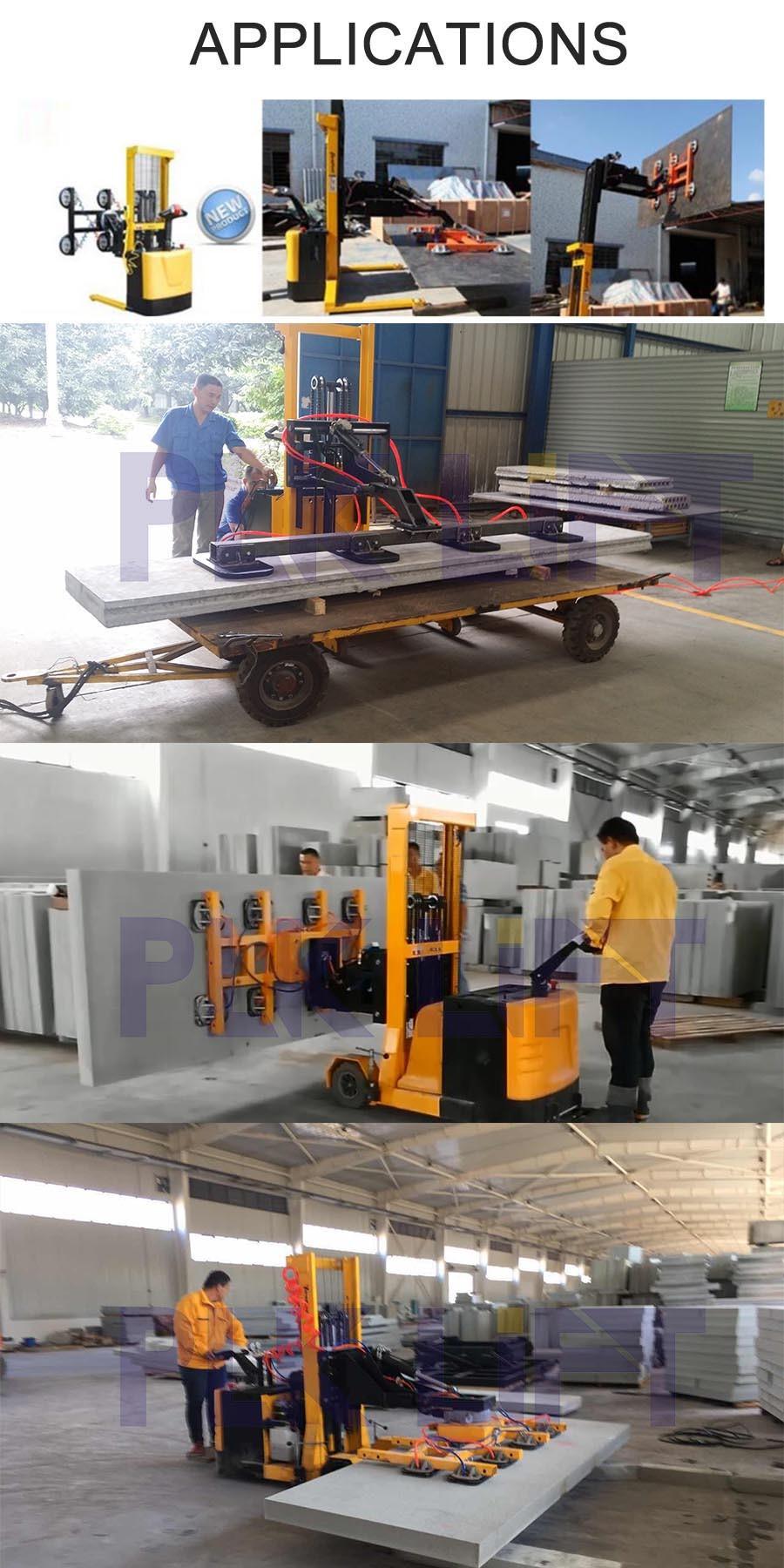

GL-HD series is of floor crane chasis. The 2pcs of front supporting legs can be customized to balance wheel, using in combine with a CNC machine. Its max lifting height is 1.6m to 2.6m with 90° vertical up/down .It's widely used to handle and move heavy panels in workshop and warehouse,like handle marbles to a CNC machine for cutting and move to another place.Price is economic. See the details specifications from the data table below.

LD Series:

Model Type	GL-LD-350	GL-LD-600
Loading Capacity	350kg (retract)/175kg(extend)	600kg (retract)/300kg(extend)
Lifting Height	3500mm	3500mm
Battery	2x12V/100AH	2x12V/120A
Controller	VST224-15	CP2207A-5102
Drive motor	24V/600W	24V/900W
Hydraulic power	24V/2000W/5L	24V/2000W/5L
Cap Diameter	Ø250mm/300mm	Ø250mm/300mm

HD Series:

Model	GL-HD-8015(6)	GL-HD-8025(8)	GL-HD-6015(4x30)	GL-HD-4015(4x30)
Max. Load Capacity	800kgs	800kgs	600kgs	400kgs
Safe Load Capacity	400kgs	400kgs	300kgs	200kgs
Lifting Height	1500mm	2500mm	1500mm	1500mm
QTY of Caps (customized)	6pcs	8pcs	4pcs	4pcs
Cap Diameter	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Plate Size (or customized)	3660x2440mm	3660x2440mm	2440x1830mm	1220x1830mm
Drive Motor	24V/900W	24V/900W	24V/700W	24V/500W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/160Ah	2x12V/160Ah	2x12V/100Ah	2x12V/70Ah
Charger	24V/20A	24V/20A	24V/15A	24V/10A

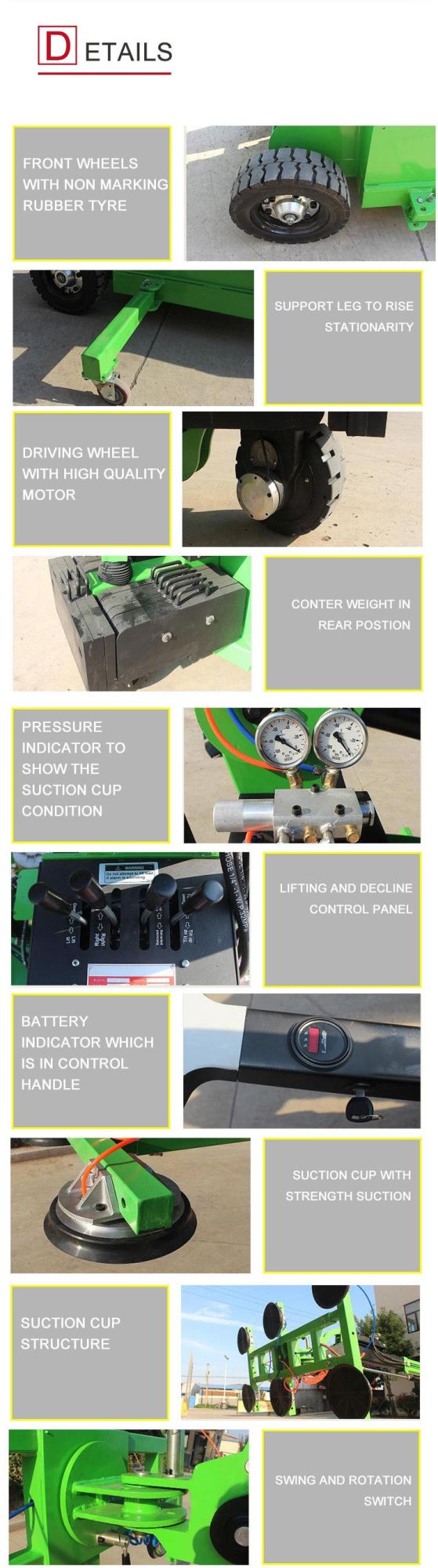

Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. Vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
