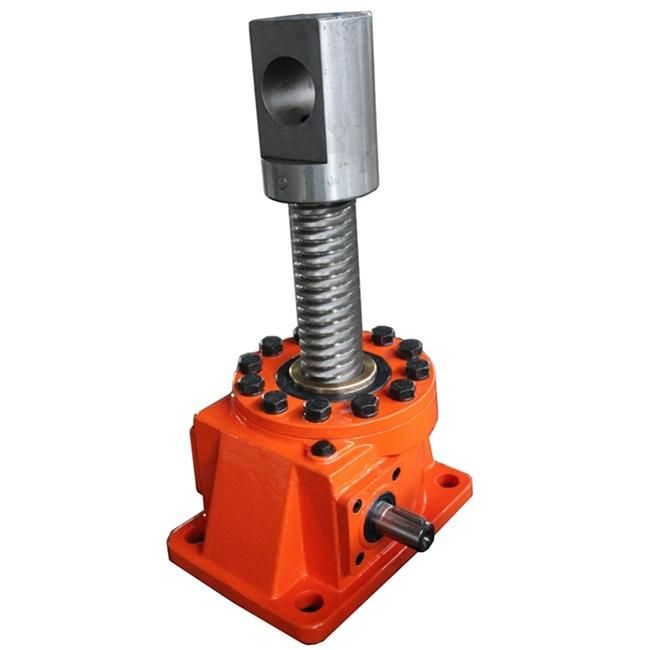

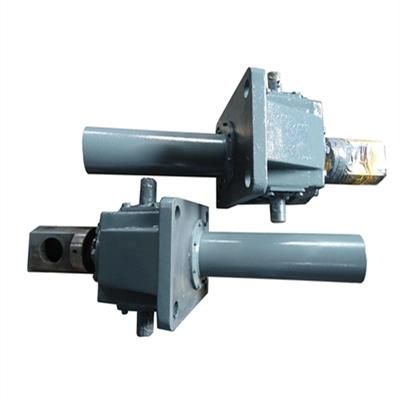

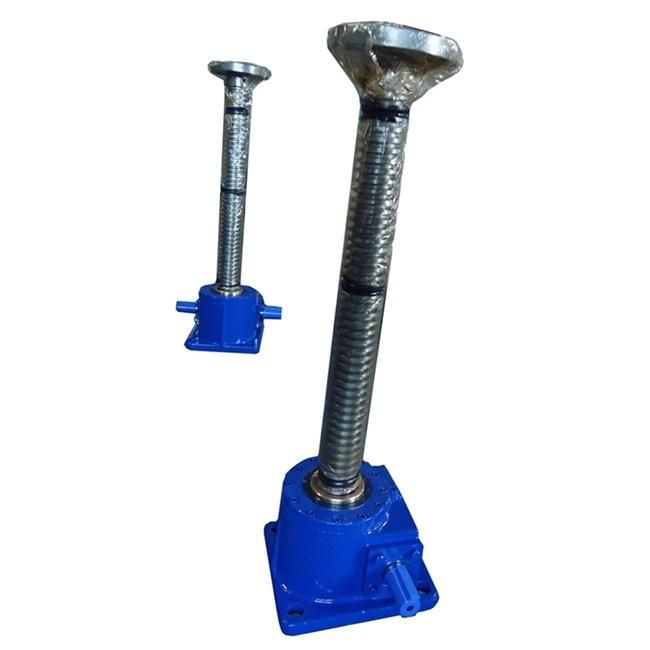

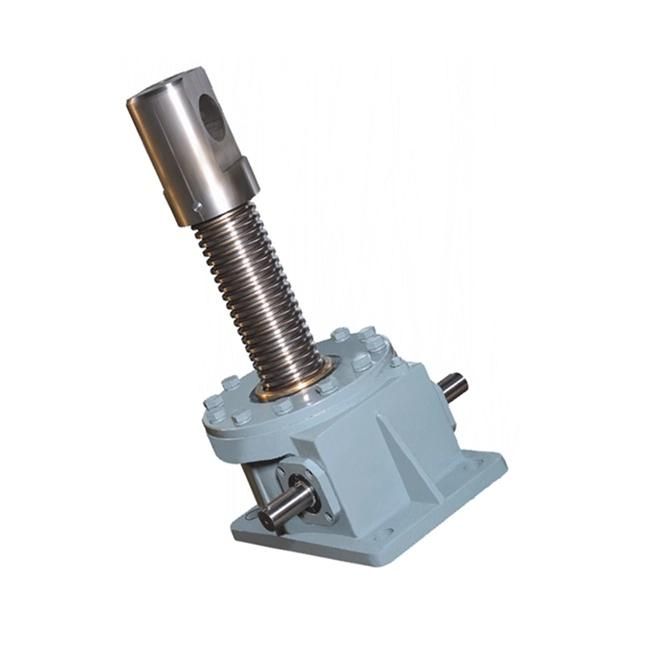

Worm Gear Screw Jack Reducer Machine Best Selling Manufacture Manual Base Rotating Reduction Lift Hand Table Lifting Sparepart Transmission Worm Gear Screw Jack
Hangzhou Xinlan Technology Co., Ltd.- Capacity (Load)：1-10T
- Certification：CE, ISO 9001:2000
- Condition：New
- Min Height：135mm
- Transport Package：Wooden Case
- Trademark：EPT
Base Info
- Model NO.：Worm Gear Screw Jack-YY
- Origin：Zhejiang China
- Production Capacity：60000000 Piece,Month
Description
Model QJC-1.5B QJC-3B QJC-5B QJC-10B QJC-16B QJC-20B
Rated capacityt 1.5 3 5 10 16 20
Test loadkN 18.4 36.8 61.3 122.5 196 245
Lifting heightmm 350 350 300 300 300 400
Min.start jacking height
Over-bracketmm 725 725 725 800 800 950
Under-bracketmm 70 75 75 85 95 110
Lifting height for the handle turn a ringmm 15 8.5 4.3 5.0 3.5 2.5
The handle pull to lift full loadN 280 310 350 680 680 700
The number of operatorPCS 1 1 1 2 2 2
The handle turning radius Rmm 250 250 250 300 300 300
Dimensions
mmA 125 185 192 242 285 376 B 293 304 330 485 492 505 B1 193 204 232 254 282 295 H 722 724 724 796 798 948 h 68 72 74 82 93 108 L 130 130 130 250 250 250 W 130 130 150 150 160 200 P 140 140 170 170 190 230
Net weightkg 14.5 21 30 49 68 93
