Zoomlion Zt26j Telescopic Boom Lifts 26m Working Height Aerial Working Platform
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Free Spare Parts
- Warranty：6 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Special Weight Level
- Moves：Vehicular
Base Info
- Model NO.：Zt26j
- Driven Type：Rack&Pinion
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Work Height：15.80m
- Platform Height：13.80m
- Horizontal Outreach：7.70m
- up and Over Height：7.55m
- a - Stowed Length：6.57m
- Wheelbase：2.36m
- Transport Package：Nude Package
- Specification：2276*1120*1254 mm
- Origin：China
- HS Code：8429510000
- Production Capacity：1000 Units,Year
Description
Basic Info.
Model NO. Zt26j Driven Type Rack&Pinion Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Work Height 15.80m Platform Height 13.80m Horizontal Outreach 7.70m up and Over Height 7.55m a - Stowed Length 6.57m Wheelbase 2.36m Transport Package Nude Package Specification 2276*1120*1254 mm Origin China HS Code 8429510000 Production Capacity 1000 Units/YearProduct Description
Rachel Gao
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Add: Suite 1811, Block A, Yihe International, No. 10 Hong Kong Middle Road, Qingdao, China.

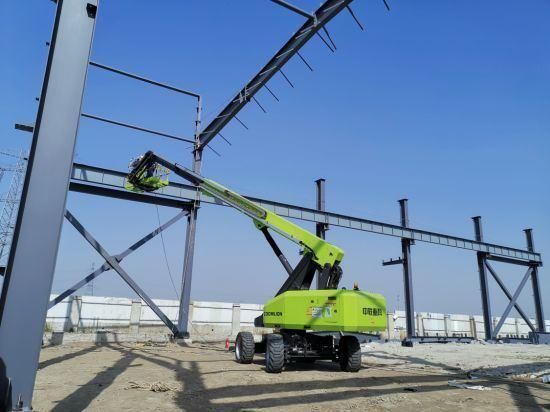

Zoomlion Zt26j Telescopic Boom Lifts on Sale

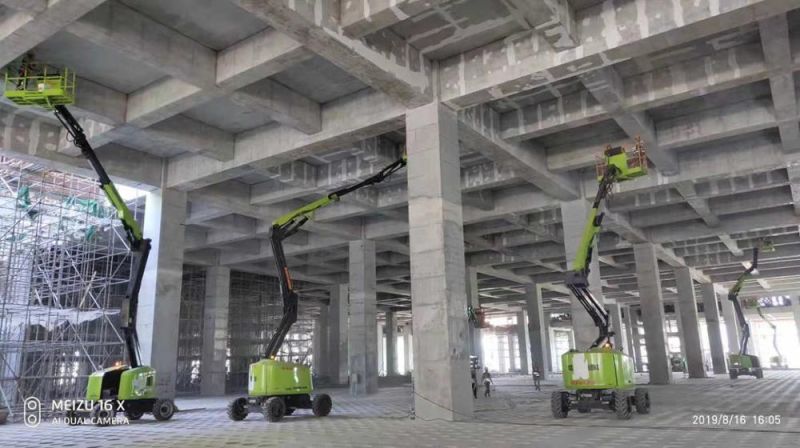

ZT26J features modularized design, light weight, commonalization and intelligence and provides a large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 45%, it is designed to easily maneuver in tight spaces on construction and industrial sites. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. Standard 2.44x0.91 m platform offers capacious and comfortable working space. Standard jib increases the maneuverability and provides a larger range of motion.| Model | ZT34J | ZT26J | ZT20J |
| Platform Capacity (Unrestricted/Restricted) | 300/454kg | 300kg/454kg | 300kg/454kg |
| Drive Speed (Working) | 5.5km/h | 5.5km/h | 6.0km/h |
| Gradeability | 45%(24°) | 45% (24°) | 45% (24°) |
| Turning Radius (Inside) | 2.80m | 3.66m | 2.4m |
| Turning Radius (Outside) | 5.70m | 6.86m | 5.4m |
| Turntable Swing | 360°continuous | 360°continuous | 360°continuous |
| Platform Rotation | ±90° | ±90° | ±90° |
| Tail Swing | 1.88m | 1.60m | 1.45m |
| Jib (Range of Articulation) | 130°(-55°~75°) | 130°(-55°~75°) | 135°(-60°~75°) |
| Max. Working Slope | 3° | 3° | 3° |
