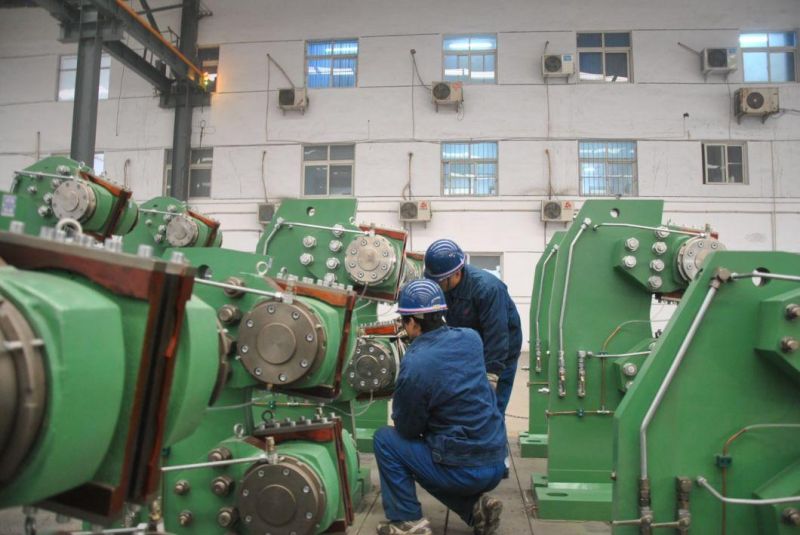

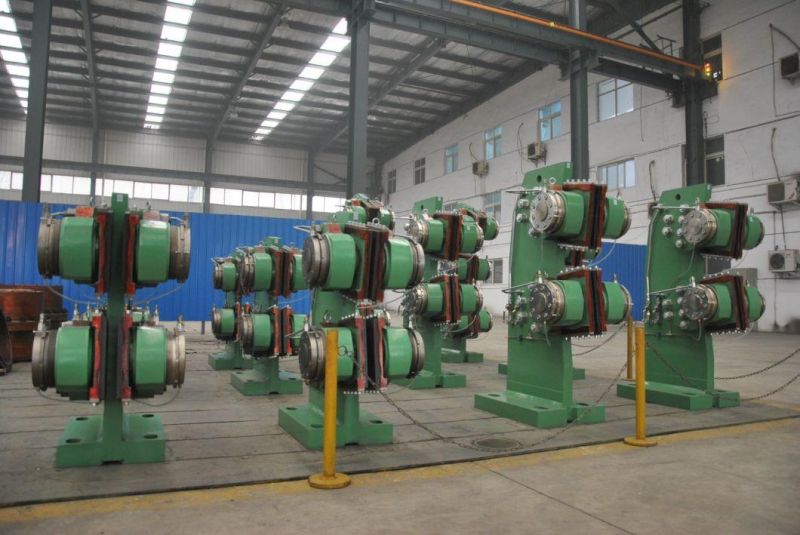

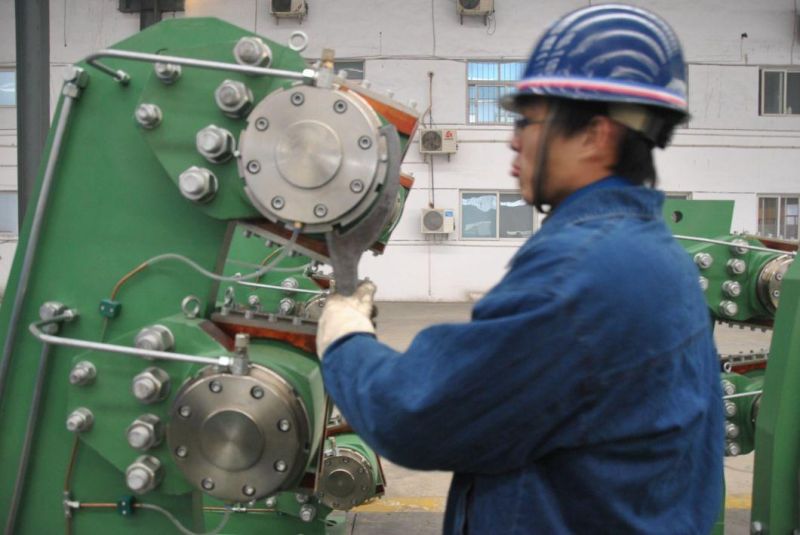

Disc Brake of Mine Lifter
CITICIC Luoyang Heavy Machinery Co., Ltd.- Condition：New
- Color：According to The Customer′s Requirement
- Environmental Asbestos Free Brake Shoe：Series of Brakes
- Transport Package：Seaworthy Packing or as Required
- Trademark：CIC
- Origin：China
Base Info
Description
Product Description
Positive working pressure of disc brake device includes 4 tons, 6.3 tons, 8 tons, 10 tons etc. New environmental asbestos free brake shoe is sealed tightly, working reliably and easy to remove, which is equipped with detector devices of brake shoe opening & closing and spring fatigue. Disc brake device is used in explosion-proof and non explosion-proof environment and be equipped on the single-rope and multi-rope friction hoists of diameter 1.6m~6m.| Technical Parameter Model | TP1 4.0 | TP1 4.0 | TP1 6.3 | TP1 8.0 | TP1 10.0 |
| Max. Positive Pressure, KN | 40 | 40 | 63 | 80 | 100 |
| Oil Pressure, Mpa | 5.6 | 6.3 | 6.3 | 5.6 | 5.6 |
| Coefficient of Friction | 0.4 | ||||
| Piston Area, cm2 | 93.5 | 94.2 | 138 | 84.2 | 94.2 |
| Pressure Ratio of Brake Shoe, N/cm2 | 84 | ||||
| Temperature increased of Brake Shoe, ºC | 210 | ||||
| Remarks | TS220 | TS216 | TS215 | TS222 | TS223 |
