• Model NO.：HL500, HL750, HL1000, HL1500
• Feature：Lifting
• Certification：GS, CE
• Material：Steel
• Transport Package：1PC,Wooden Case
• Specification：CE
• Trademark：NU-LIFT
• Origin：Jiangsu, China(Mainland)
• HS Code：8427900000
• Production Capacity：1000PCS, Month

Basic Info.

Model NO. HL500, HL750, HL1000, HL1500 Feature Lifting Certification GS, CE Material Steel Transport Package 1PC/Wooden Case Specification CE Trademark NU-LIFT Origin Jiangsu, China(Mainland) HS Code 8427900000 Production Capacity 1000PCS/ Month

Product Description

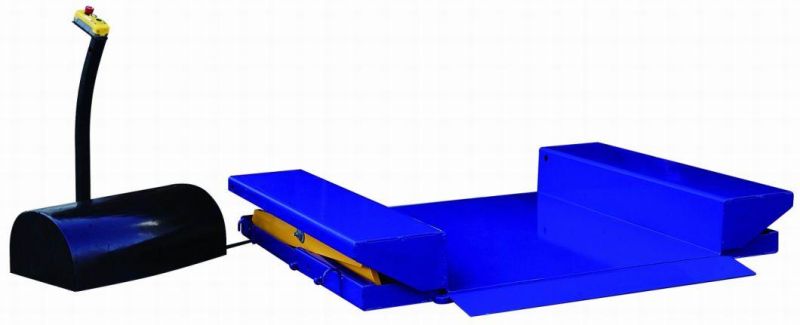

Closed height only 10mm, no ramp needed for pallet.
Mechanical safety chocks for maintenance.
These tables achieve a super low closed height, eliminating the need for a pit installation.
They are manufactured to all European safety standards including EN1570: 1999.
Remote power pack with pedestal and controls, protected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting hooks to facilitate handling and installation of the lift table.

Model	HL500	HL750	HL1000	HL1500
Capacity (kg)	500	750	1000	1500
Max. height H(mm)	810	810	810	810
Min. height h(mm)	10	10	10	10
Platform L×W(mm)	1270x1100	1270x1100	1270x1100	1270x1100
Lifting Time (second)	25~35	25~35	25~35	25~35
Power Pack (KW)	380V/50Hz, AC0.75KW	380V/50Hz, AC0.75KW	380V/50Hz, AC0.75KW	380V/50Hz, AC1.5KW
Net Weight (kg)	207	250	280	380
