• Model NO.：DG425A
• Feature：Insulating
• Rated Load (Kg)：425
• Net Weight (Kg)：72
• Load Center Distance：1150
• Minimum Height of Jaw：495
• Maximum Height of Jaw：720
• Transport Package：Pallet
• Trademark：CHEESON
• Origin：China

Basic Info.

Model NO. DG425A Feature Insulating Rated Load (Kg) 425 Net Weight (Kg) 72 Load Center Distance 1150 Minimum Height of Jaw 495 Maximum Height of Jaw 720 Transport Package Pallet Trademark CHEESON Origin China

Product Description

    Product Description

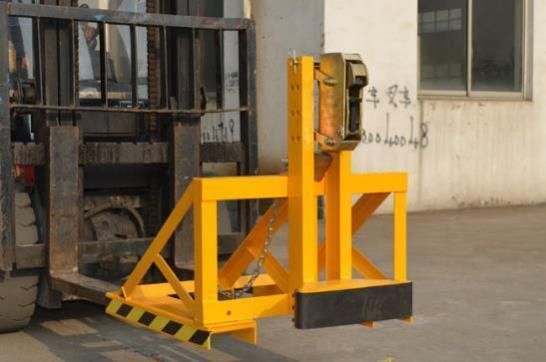

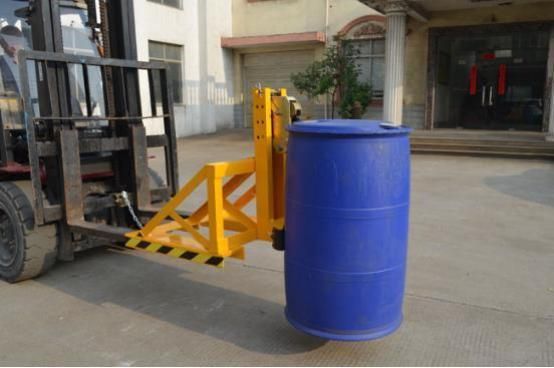

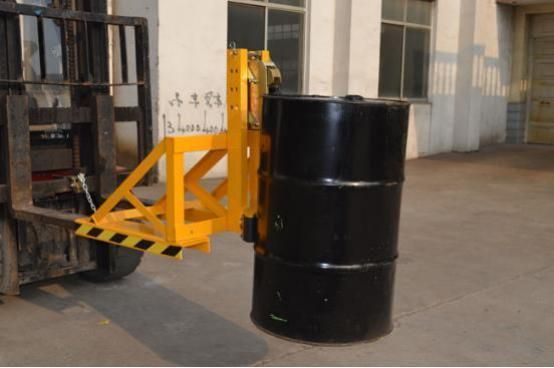

★The light single olecranon and single oil barrel clamp designed with pure mechanical structure can be easily matched with the forklift. It only relies on the action of the forklift and does not require other power. It can automatically carry 1 barrel at a time.
★It can handle more types of barrels, including steel and plastic; it can load and unload barreled materials in a small environment such as a container, which can greatly improve the space utilization rate.
★Fully automatic mechanical operation to adapt to barrels of different specifications.
★The way of connecting with the fork can be a safety chain connection or an automatic locking buckle control device.
★Recommended for applications where more than 800 barrels are processed per month.
technical parameter
Type number DG425A HL
Rated load (kg) 425
Net weight (kg) 72
Dimensions (mm) 1010×770×884
Load center distance (mm) 1150
Minimum height of jaw (mm) 495
Maximum height of jaw (mm) 720
Middle height of the jaws (mm) 675~600
Fork hole (L×W) (mm) 150×55
Inner width of forklift leg (mm) 360
Outer width of forklift legs (mm) 660
Forklift leg length (mm) 600
