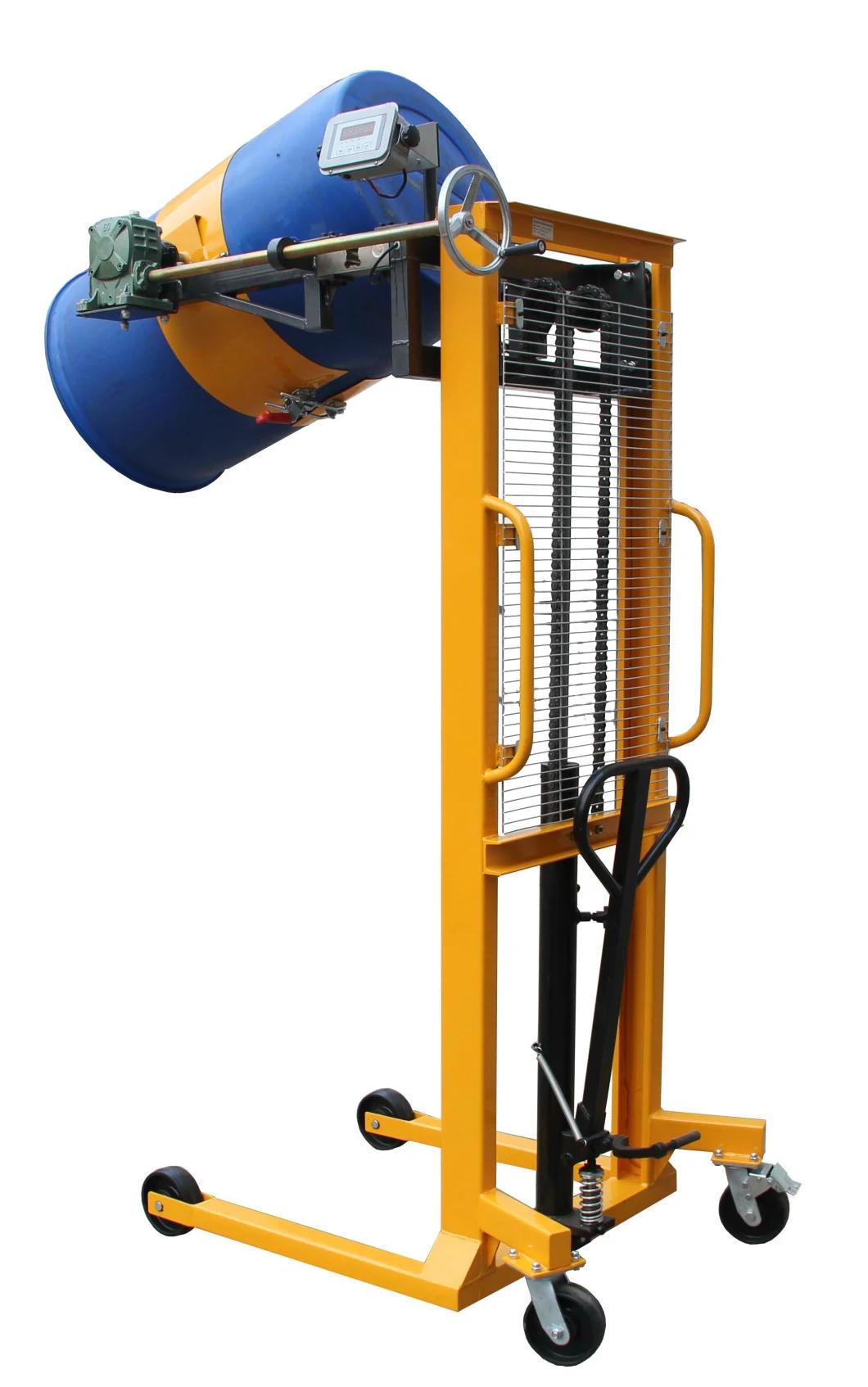

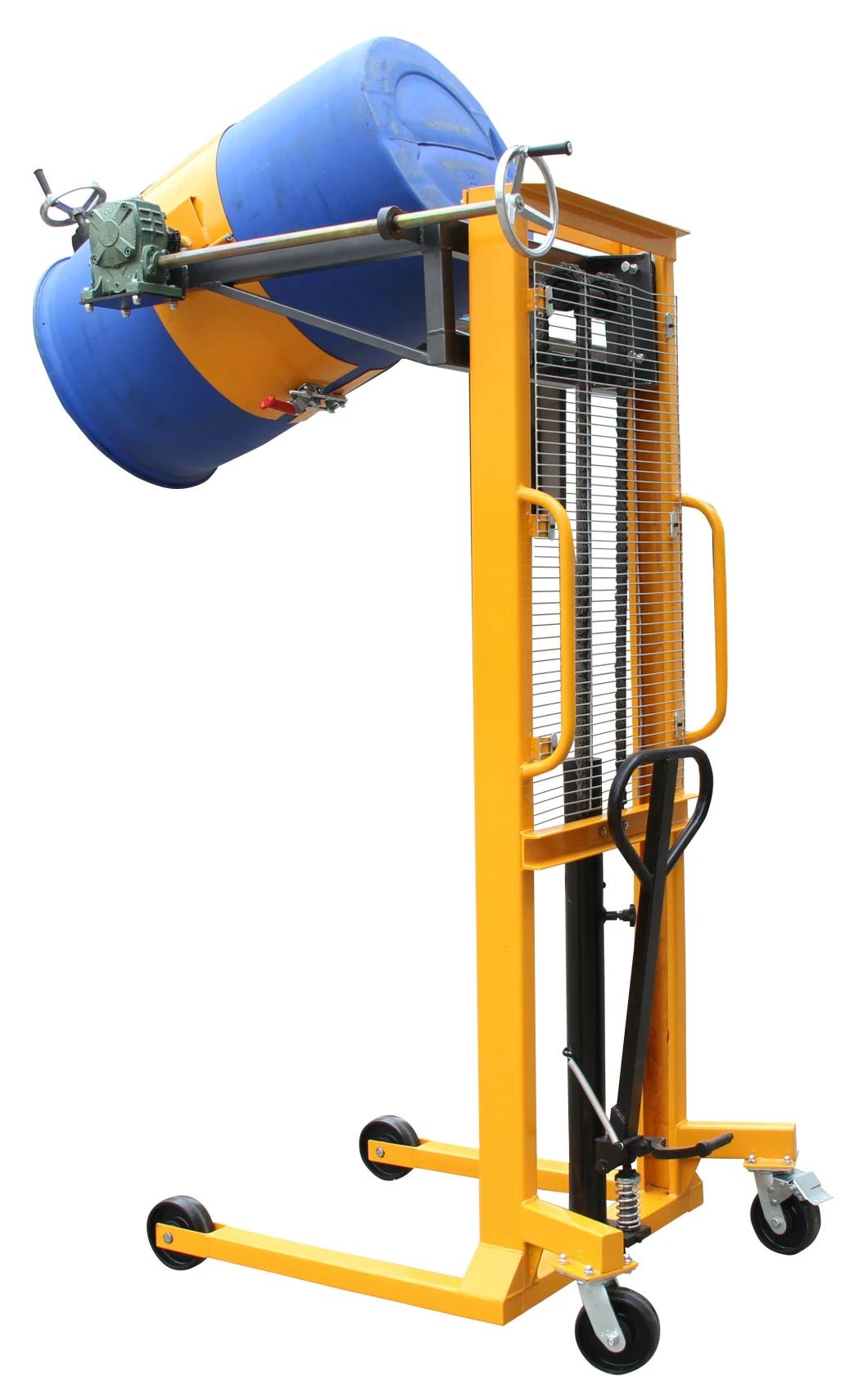

Da400A Multi-Function Drum Truck
Changzhou Cheeson Machinery Co., Ltd.- After-sales Service：One Year
- Warranty：One Year
- Lift Mechanism：Manual Dual-Use Operation
- Carrying Capacity：Middle-Level
- Moves：Moving
- Driven Type：AC
Base Info
- Model NO.：DA400A
- Feature：Insulating
- Rated Load (Kg)：400
- Net Weight (Kg)：170
- Length of Front Leg (mm)：730
- Minimum Turning Radius (mm)：1850
- Maximum Lifting Height (mm)：1600
- Transport Package：Pallet
- Trademark：CHEESON
- Origin：China
Description
Basic Info.
Model NO. DA400A Feature Insulating Rated Load (Kg) 400 Net Weight (Kg) 170 Length of Front Leg (mm) 730 Minimum Turning Radius (mm) 1850 Maximum Lifting Height (mm) 1600 Transport Package Pallet Trademark CHEESON Origin ChinaProduct Description
Product Description★The 6mm "C" type door frame manufactured by special rolling process is firm and safe.
★The design of the multifunctional oil drum truck is simple and lightweight, and the operation is simple and labor-saving.
★High-quality oil cylinder, pedal and manual dual-purpose operation, fast lifting speed, lifting height can reach 1600mm, manual 360-degree turning.
★Suitable for handling, loading and unloading, dumping, etc. of liquid liquids such as chemical industry, food workshop, dyes, coatings, adhesives, petroleum, cooking oil, etc.
technical parameter
Type number DA400A
Rated load (KG) 400
Net weight (KG) 170
Hydraulic pressure rises √
Manual flip √
Hoop type √
Front wheel specification (nylon wheel) (mm) 150×50
Rear wheel specification (nylon wheel) (mm) 150×50
Inner and outer width of front leg (mm) 640, 800
Length of front leg (mm) 730
Whole vehicle (length×width×height) (mm) 1500×950×2060
Minimum turning radius (mm) 1850
Maximum lifting height (mm) 1600
