• Model NO.：CD1
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Blue
• Name：Electric Wire Rope Hoist
• Easy Lift：Yes
• Volt：220-440 V
• Rope Guide：Yes
• Over Load Limit：Available
• Wireless Control：Yes
• Single Speed：Yes
• Warranty：1 Year
• Heat Sink：Yes
• 2 Motors：Yes
• Transport Package：Wooden Case or Pallets
• Specification：CE, ISO, TUV, SGS
• Trademark：HUGO
• Origin：Shanghai
• HS Code：8425110000
• Production Capacity：50000sets,Month

  Product parameters

1.Reducer: adopt third-class dead axel helical gear transmission structure gear

and geaaxel are made of heat treated alloy steel

2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.4.Protection grade: IP54, work grade: M35.Over load limit is available. Hook is widen and thicken 6.Power-Off protection, Emergency stop system.

Model

CD1-0.25

CD1-0.5

CD1-1

CD1-2

CD1-3

CD1-5

CD1-10

Capacity(t)

0.25

0.5

1

2

3

5

10

Standard lift(m)

3-9

6-12

6-30

6-30

6-30

6-30

9-30

Lifting speed(m/min)



88/0.8

88/0.8

88/0.8

88/0.8

88/0.8

77/0.7

Running speed(m/min)

20(30)

20(30)

20(30)

20(30)

20(30)

20(30)

20(30)

Wire rope type



6x37-4.8-180

6x37-7.4-180

6x37-11-155

6x37-13-170

6x37-15-200

6x37-17.5-200

I Beam track type

16-22b

16-28b

16-28b

20a-32c

20a-32c

25a-63c

28a-63c

Motor

Power(KW)

04

0.8

1.5

3.0

4.5

7.5

13

R.P.M(r/min)

1400

1380

1380

1380

1380

1380

1380

Voltage(V)

380

380

380

380

380

380

380

Frequency(Hz)

50

50

50

50

50

50

50

Phase

3

3

3

3

3

3

3

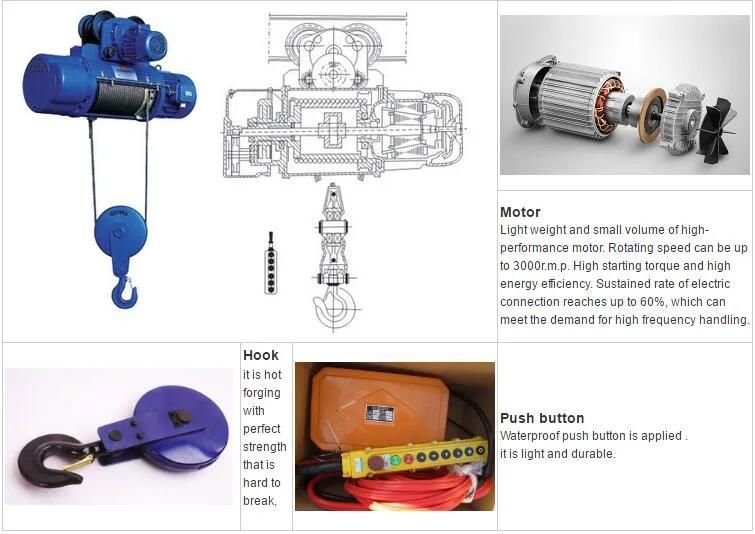

CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox

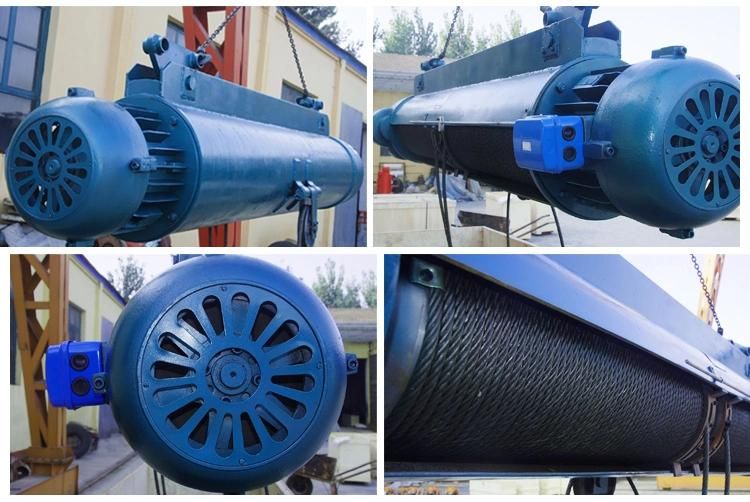

CD1 Model wire rope electric hoist Material object

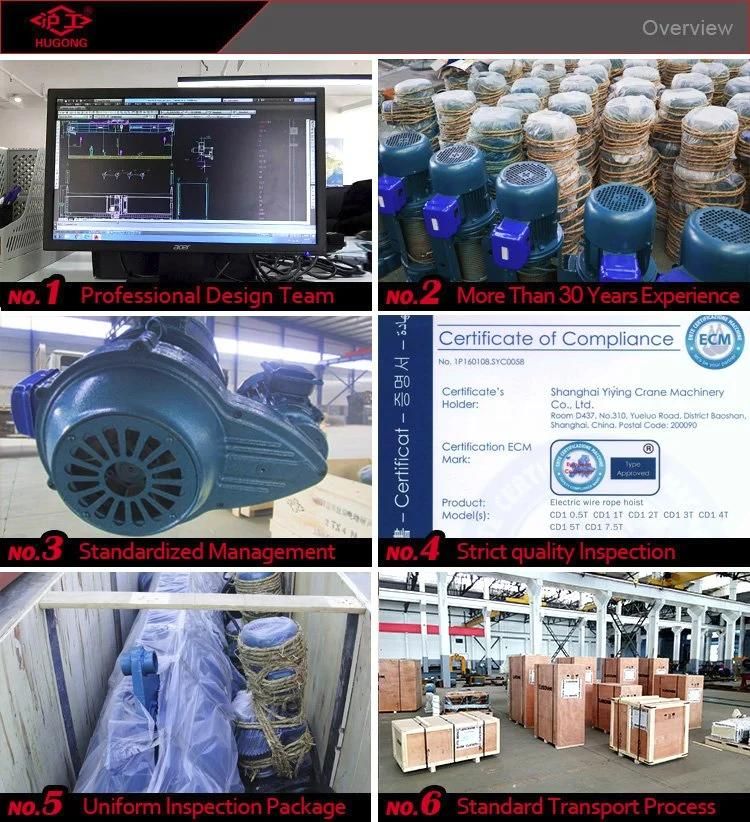

CD1 Model wire rope electric hoist lifting block production process

Certificate
