• Model NO.：HX500, HX1000, HX1500
• Feature：Explosion-Proof
• Certification：CE
• Capacity：500kg, 1000kg, 1500kg
• Min. Height：10mm
• Max. Height：810mm
• Table Size：1270*1100mm
• Lift Time：25-30s
• Color：Customizable
• Net Weight：315-470kg
• Certificate：Ce Approved
• Scissor：Single Scissor Lift Table
• Type：Stationary Lift Table
• Transport Package：1PC,Wooden Case
• Specification：customizable
• Trademark：Buytool
• Origin：Made in China
• HS Code：8427900000
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. HX500, HX1000, HX1500 Feature Explosion-Proof Certification CE Capacity 500kg, 1000kg, 1500kg Min. Height 10mm Max. Height 810mm Table Size 1270*1100mm Lift Time 25-30s Color Customizable Net Weight 315-470kg Certificate Ce Approved Scissor Single Scissor Lift Table Type Stationary Lift Table Transport Package 1PC/Wooden Case Specification customizable Trademark Buytool Origin Made in China HS Code 8427900000 Production Capacity 1000PCS/Month

Product Description

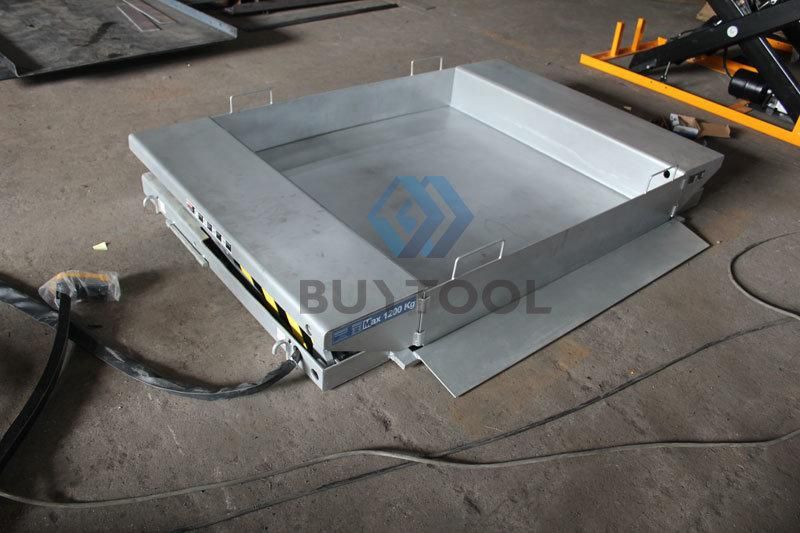

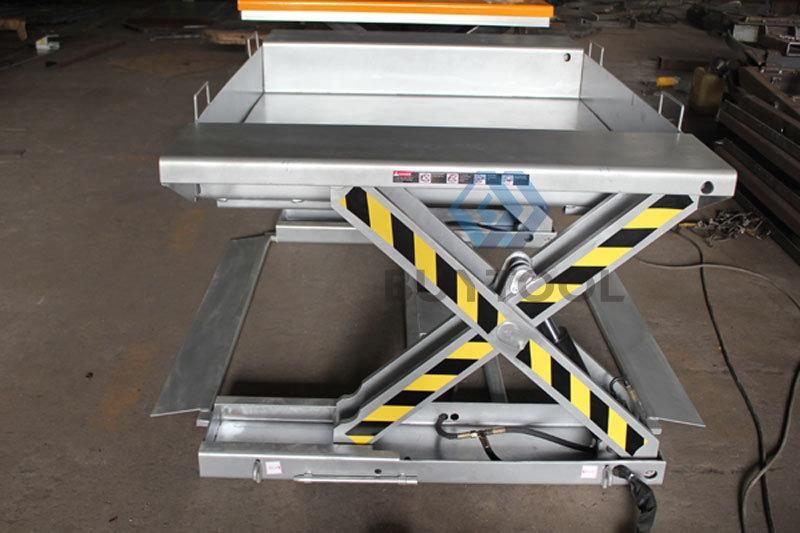

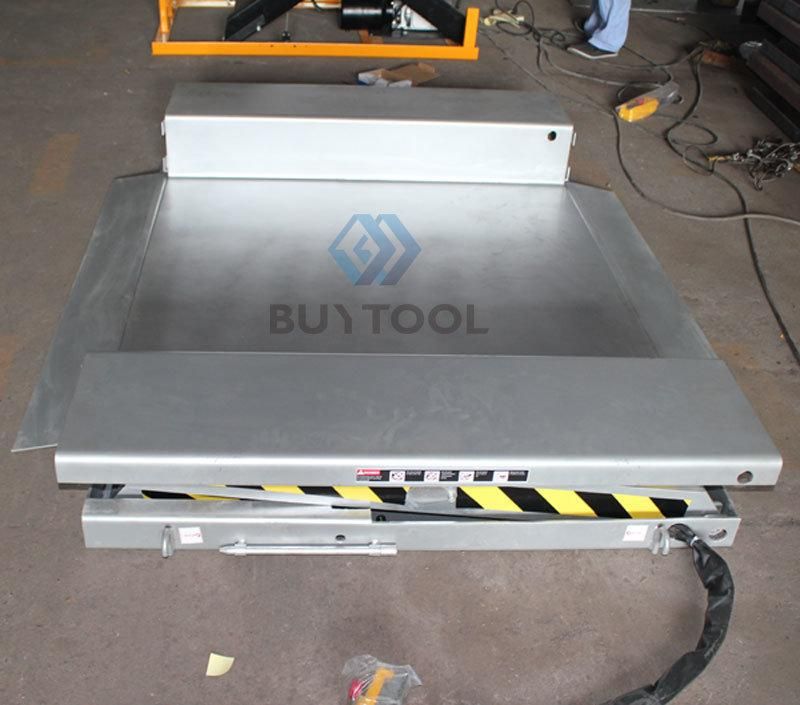

Closed height only 10mm, no ramp needed for pallet.
Mechanical safety chocks for maintenance.
These tables achieve a super low closed height, eliminating the need for a pit installation.
They are manufactured to all European safety standards including EN1570: 1999.
Remote power pack with pedestal and controls, protected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting hooks to facilitate handling and installation of the lift table.

Model	HX500	HX750	HX1000	HX1500
Capacity (kg)	500	750	1000	1500
Max. height H(mm)	800	800	800	800
Min. height h(mm)	25	25	25	35
Platform L×W(mm)	1270x1100	1270x1100	1270x1100	1270x1100
Lifting Time (second)	25~35	25~35	25~35	25~35
Power Pack (KW)	380V/50Hz, AC0.75KW	380V/50Hz, AC0.75KW	380V/50Hz, AC0.75KW	380V/50Hz, AC1.5KW
Net Weight (kg)	207	250	280	380

FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
