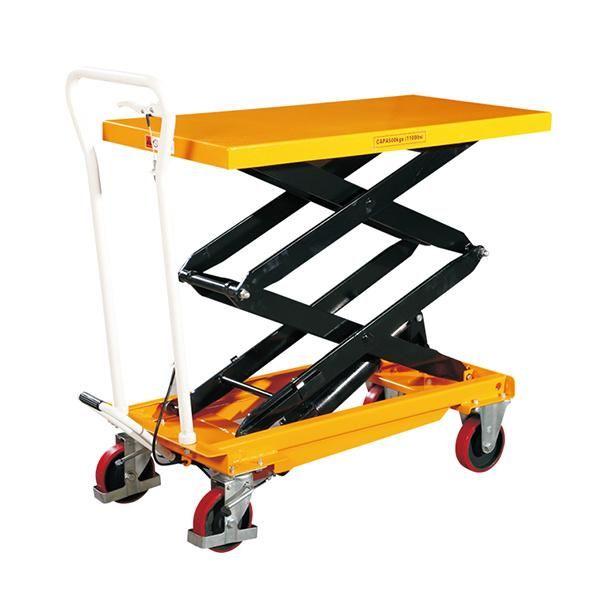

Manual Mobile Double Scissor Lift Table
Wuxi Buytool Industrial Equipment Co., Ltd.- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism:Scissor Lift
- Carrying Capacity:Middle-Level
- Moves:Moving
- Driven Type:Hydraulic
- Running Mode:Moving
Base Info
- Model NO.:TA35D
- Certification:CE, ISO 9001
- Capacity:350kg
- Min. Height:435mm
- Max. Height:1585mm
- Table Size:1010*520mm
- Handle Height:1060mm
- Color:Customizable
- Net Weight:150kg
- Type:Mobile Lift Table
- Certificate:Ce Approved
- Transport Package:1PC,Wooden Case
- Specification:customizable
- Trademark:Buytool
- Origin:Made in China
- HS Code:8427900000
- Production Capacity:3000PCS,Month
Description
Basic Info.
Model NO. TA35D Certification CE, ISO 9001 Capacity 350kg Min. Height 435mm Max. Height 1585mm Table Size 1010*520mm Handle Height 1060mm Color Customizable Net Weight 150kg Type Mobile Lift Table Certificate Ce Approved Transport Package 1PC/Wooden Case Specification customizable Trademark Buytool Origin Made in China HS Code 8427900000 Production Capacity 3000PCS/MonthProduct Description
Features:1.Ideal material conveying platform used in the assembly line;
2.Pedal hydraulic lift allows the table to rise to any desired height;
3.Accurately lower the table by pinch drop mode.
4.Foldable handle, easy to disassembling and handling.
Model | Unit | TA35D | TA50D | TA80D |
Capacity | kg | 350 | 500 | 800 |
Min. height | mm | 435 | 440 | 470 |
Max. height | mm | 1585 | 1575 | 1410 |
Platform dimensions | mm | 1010×520 | 1010×520 | 1010×520 |
Wheel diameter | mm | Ø150×40 | Ø150×40 | Ø150×40 |
Net weight | kg | 150 | 168 | 165 |
Packing dimensions | mm | 1100×560×435 | 1100×560×445 | 1180×560×475 |
Cylinder diameter | mm | Ø40 | Ø50 | Ø50 |
Handle height | mm | 1060 | 1120 | 1120 |


FAQ:
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
