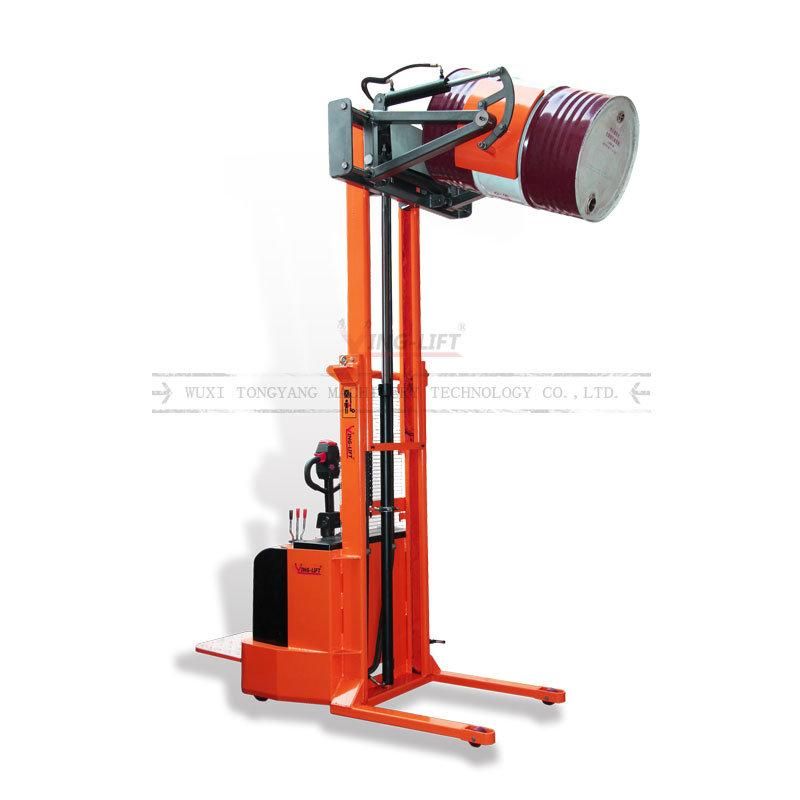

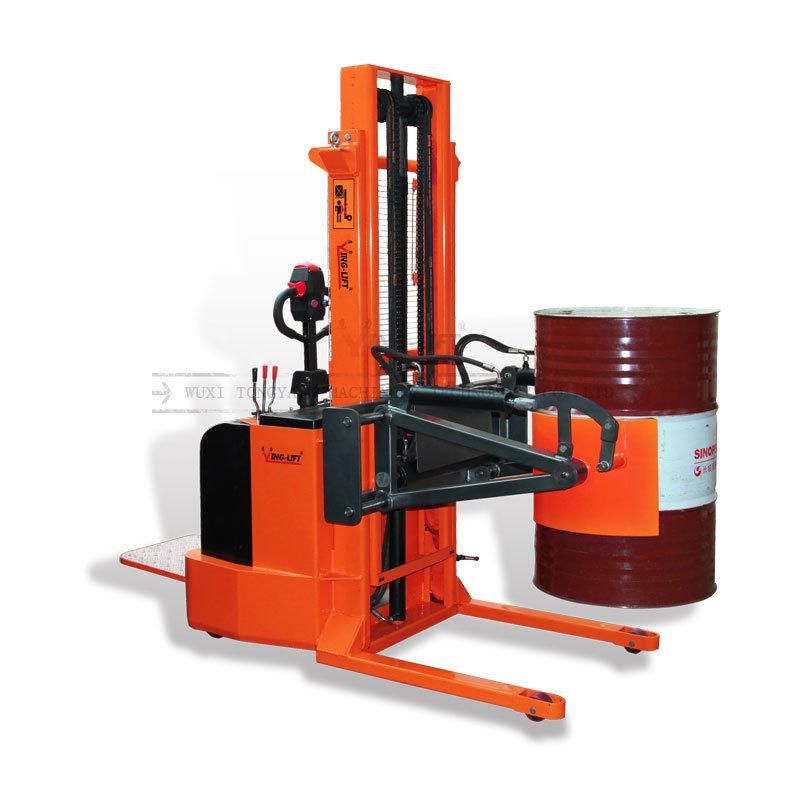

Lifting Height 2400mm and Loading Capacity 600kg Full Electirc Drum Handling Equipment

WUXI TONGYANG MACHINERY TECHNOLOGY CO., LTD.
  • After-sales Service：12 Months
  • Warranty：12 Months
  • Type：Gantry Stacker & Reclaimer
  • Load Capacity：600kg
  • Drive Type：Electric
  • Operation Type：Standing Steer Type

Base Info

  • Model NO.：YL600
  • Lifting Heigth：2400mm
  • Total Heigth：1870mm
  • Total Length：2290mm
  • Total Width：1180mm
  • Driving Wheel Size：250mm*80mm
  • Tire：Polyurethane
  • Turning Radius：1840mm
  • Transport Package：Pallets
  • Specification：7 cube
  • Trademark：Yinglift
  • Origin：China
  • HS Code：8427900000
  • Production Capacity：50 PCS ,Month

Description

ModelYL600Drive typeFull electricOperating typeStanding operationRated load capacity600kgLifting height2400mmTuring radius1840mmMax. Grade ability (Fully-loaded/no-loaded)3/5Driving wheel sizeØ250*80mmTirePolyurethaneControlling typeElectromagnetic brakingDrive motor power1.2kwLifting motor power2.2kwNoise level<70b(A)Battery voltage/capacity24/210V/AhCharger24/30V/ANet weight890kgRotating range135°

Lifting Height 2400mm and Loading Capacity 600kg Full Electirc Drum Handling EquipmentLifting Height 2400mm and Loading Capacity 600kg Full Electirc Drum Handling Equipment


Lifting Height 2400mm and Loading Capacity 600kg Full Electirc Drum Handling EquipmentLifting Height 2400mm and Loading Capacity 600kg Full Electirc Drum Handling Equipment
Lifting Height 2400mm and Loading Capacity 600kg Full Electirc Drum Handling EquipmentFAQ:
1.Q.Are you factory?
   A.Yes.Our factory mainly produce drum handling equipment,drum stacker,drum truck,aluminum hand trolley ,kinds lift table ,forklift attachment and shop crane with CE approved, pasted Third-party certification(SGS/ISO9001).
2.Q.Can I place mix order?
   A.Yes.You can mix different models as your request.
3.Q.Can we order products?
   A.Yes. Customers can option size,color,weighing,panel etc.Welcome ODM/OEM orders.
4.Q.Can we visit your factory?
   A.Welcome anytime .Our factory address:No. 38, Yansheng Road, Yanqiao Industrial Park,Huishan District,Wuxi,Jiangsu,China (Mainland) .You can take the plane, high-speed rail, motor car, train, car.
5.Q.Are the products covered by a warranty?
   A.Yes.All our machines carry a full 1 year major parts warranty.

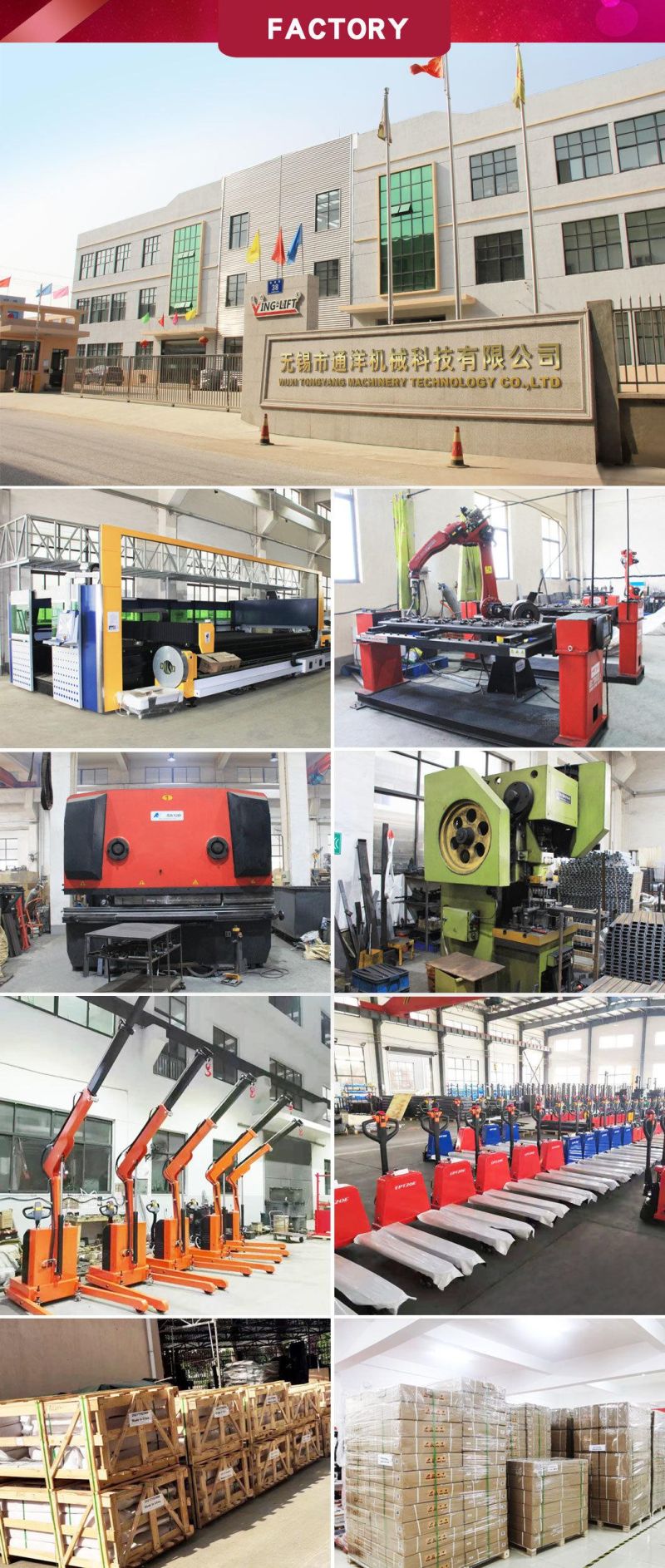

Quality Control in our Wuxi Tongyang:
The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1) Strict quality control system on the whole process of production
2) Imported key arts to ensure the high quality of our products
3) Advanced equipment and tools for examination and quality control
4) 100% strict examining products before shipment
5) All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
