Lifting Tools Full Electric Oil Drum Lifter with Clamp 180 Degrees Rotate Yl420

WUXI TONGYANG MACHINERY TECHNOLOGY CO., LTD.
  • After-sales Service：12 Months
  • Warranty：12 Months
  • Type：Gantry Stacker & Reclaimer
  • Drive Type：Electric
  • Operation Type：Standing Steer Type
  • Load Capacity：420kg

Base Info

  • Model NO.：YL420
  • Turning Radius：2150mm
  • Driving Wheel Size：250mm*80mm
  • Wheel：Polyurethane
  • Drive Motor Power：1.2kw
  • Lifting Motor Power：2.2kw
  • Lifting Height：2400mm
  • Net Weight：1100kg
  • Transport Package：Steel Pallets
  • Specification：8 cube
  • Trademark：YINGLIFT
  • Origin：China
  • HS Code：8427900000
  • Production Capacity：20 PCS,Month

Description

Basic Info.

Model NO. YL420 Turning Radius 2150mm Driving Wheel Size 250mm*80mm Wheel Polyurethane Drive Motor Power 1.2kw Lifting Motor Power 2.2kw Lifting Height 2400mm Net Weight 1100kg Transport Package Steel Pallets Specification 8 cube Trademark YINGLIFT Origin China HS Code 8427900000 Production Capacity 20 PCS/Month

Product Description

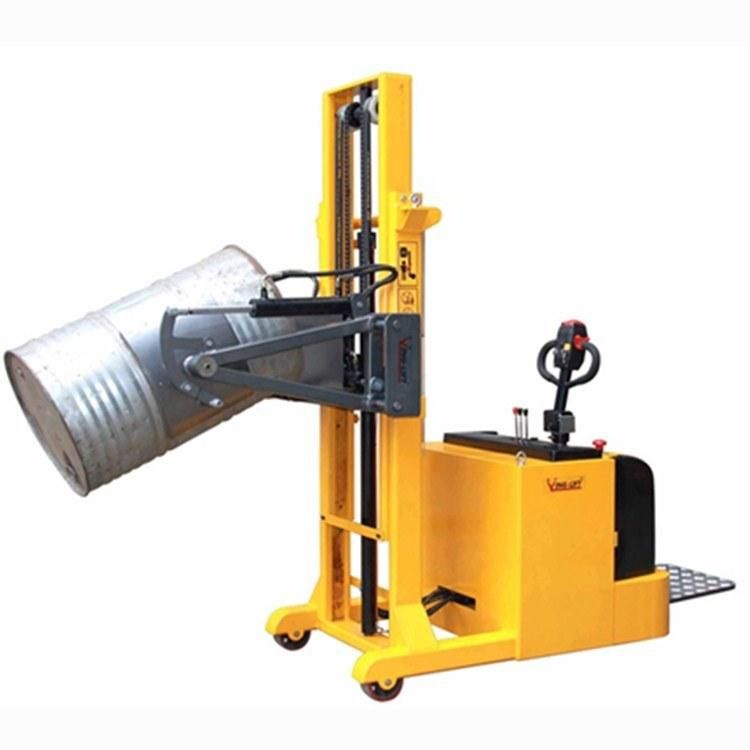

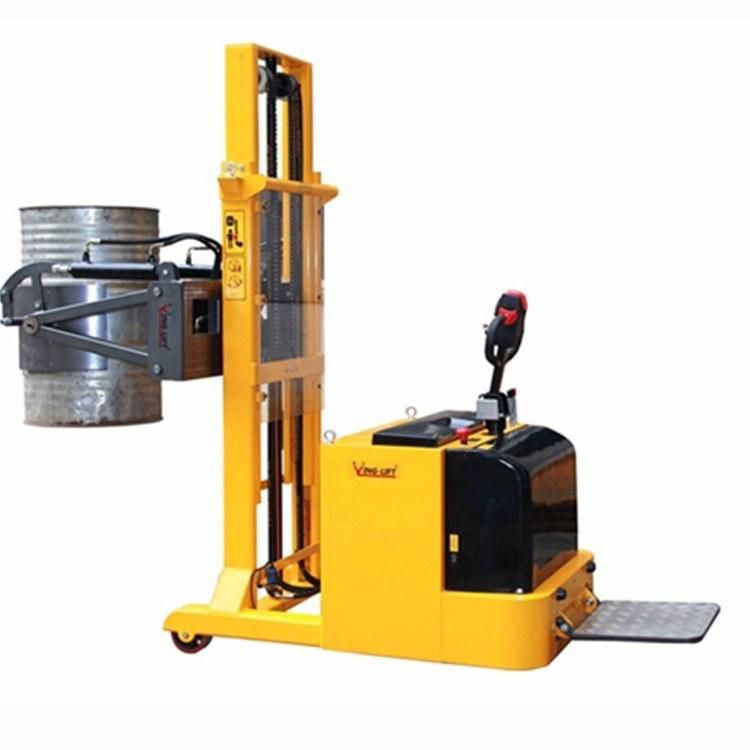

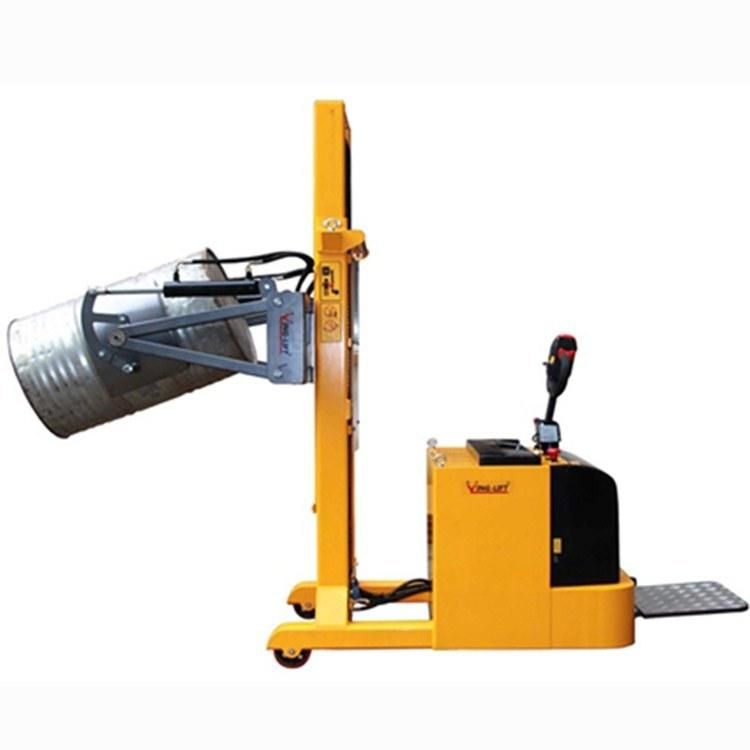

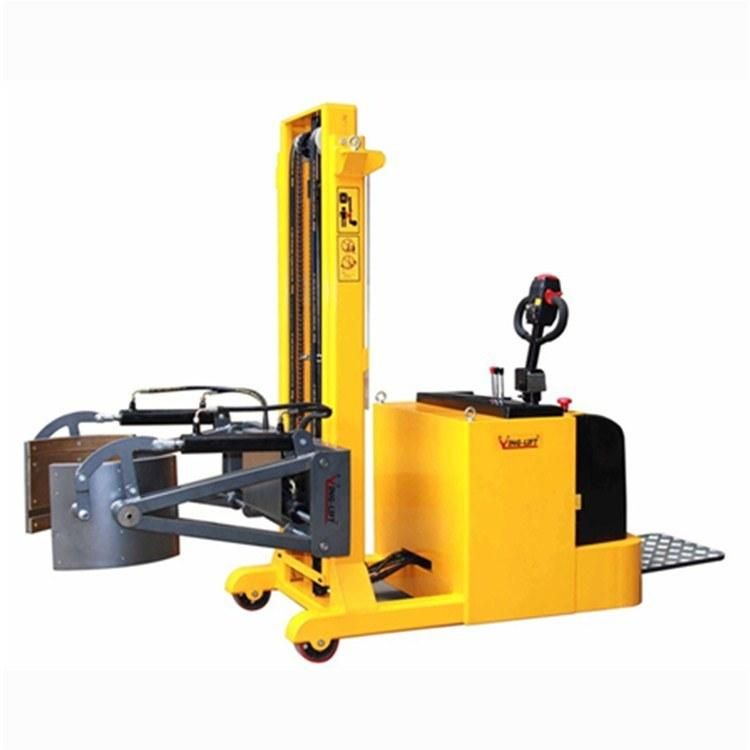

China factory Lift, rotate, and transport 55 gallon steel drums with these portable drum lifter/rotator/transporters YL420
Introduction:
1.This equipment is suitable for handling, lifting, loading and unloading of 55 gallon steel drums. The equipment adopts a dedicated walking control system for imported electric vehicles. Stable walking, lightweight and flexible, it can be operated by one person.
2.Man-machine multi-function control handle, walking stepless speed governor, high power reversing switch, integrated hydraulic pump station, high power walking drive wheel.
Loaded pedals reduce operator fatigue
3.Electro-hydraulic holding clamp, electro-hydraulic flip
Model YL420
Drive Type Electric Motor
Capacitykg420
Lifting Heightmm2400
Overall Lengthmm2840
Overall Widthmm1180
Turning Radiusmm2150
Grade Ability%3
Wheel sizemmφ250*80
Material of Wheel/PU
Brake Type Electromagnetism brake
Drive Motorkw1.2
Lifting Motorkw2.2
NoiseDb(A)<70
Battery voltage/volumeV/A24/210
Weightkg1100
Rotation Angle 180°

Lifting Tools Full Electric Oil Drum Lifter with Clamp 180 Degrees Rotate Yl420Lifting Tools Full Electric Oil Drum Lifter with Clamp 180 Degrees Rotate Yl420Lifting Tools Full Electric Oil Drum Lifter with Clamp 180 Degrees Rotate Yl420Lifting Tools Full Electric Oil Drum Lifter with Clamp 180 Degrees Rotate Yl420


  Lifting Tools Full Electric Oil Drum Lifter with Clamp 180 Degrees Rotate Yl420Lifting Tools Full Electric Oil Drum Lifter with Clamp 180 Degrees Rotate Yl420

FAQ:
1.Q.Are you factory?
   A.Yes.Our factory mainly produce drum handling equipment,drum stacker,drum truck,aluminum hand trolley ,kinds lift table ,forklift attachment and shop crane with CE approved, pasted Third-party certification(SGS/ISO9001).
2.Q.Can I place mix order?
   A.Yes.You can mix different models as your request.
3.Q.Can we order products?
   A.Yes. Customers can option size,color,weighing,panel etc.Welcome ODM/OEM orders.
4.Q.Can we visit your factory?
   A.Welcome anytime .Our factory address:No. 38, Yansheng Road, Yanqiao Industrial Park,Huishan District,Wuxi,Jiangsu,China (Mainland) .You can take the plane, high-speed rail, motor car, train, car.
5.Q.Are the products covered by a warranty?
   A.Yes.All our machines carry a full 1 year major parts warranty.

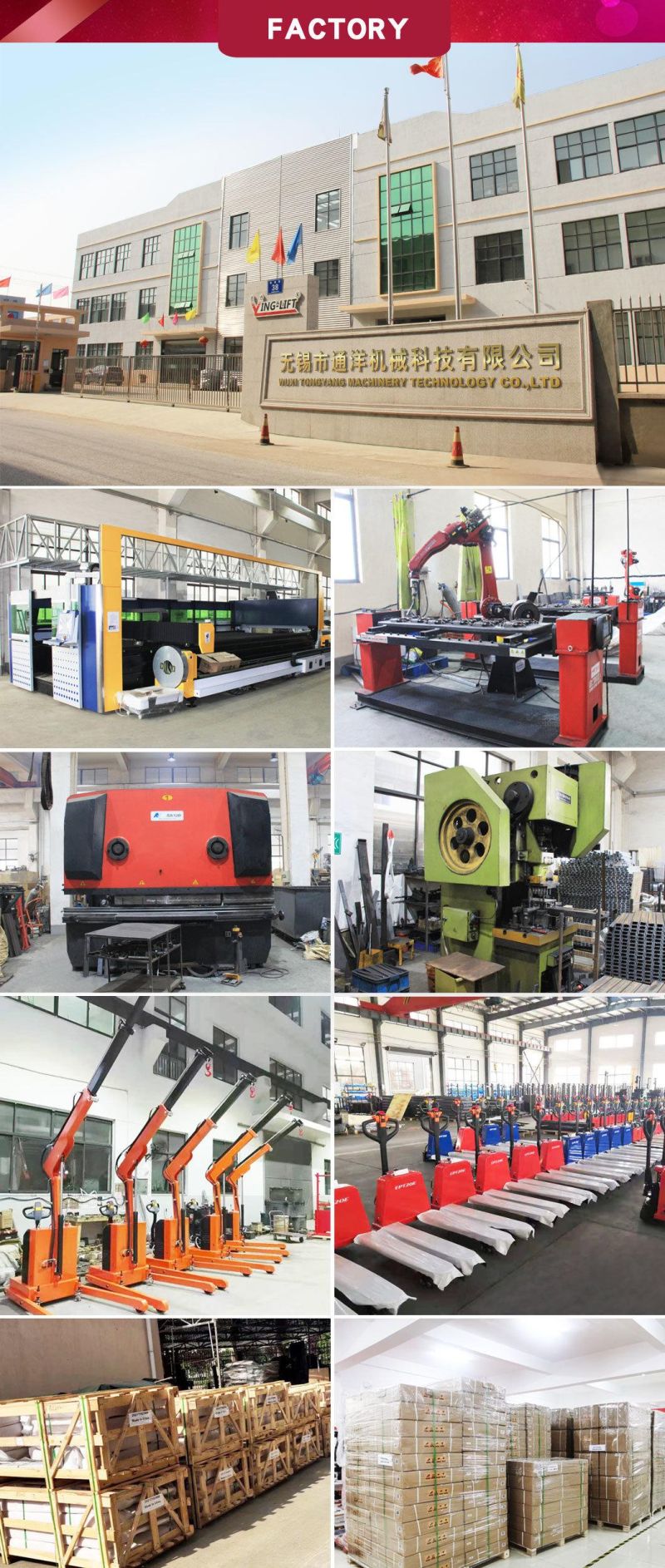

Quality Control in our Wuxi Tongyang:
The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1) Strict quality control system on the whole process of production
2) Imported key arts to ensure the high quality of our products
3) Advanced equipment and tools for examination and quality control
4) 100% strict examining products before shipment
5) All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
