• Model NO.：ZT26J
• Driven Type：AC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, ISO 9001
• Color：Yellow
• Work Height：28.20m
• Platform Height：26.20m
• Horizontal Outreach：22.71m
• Turning Radius (Inside)：3.66m
• Turning Radius (Outside)：6.86m
• Tail Swing：1.60m
• Max. Wind Speed：12.5m,S

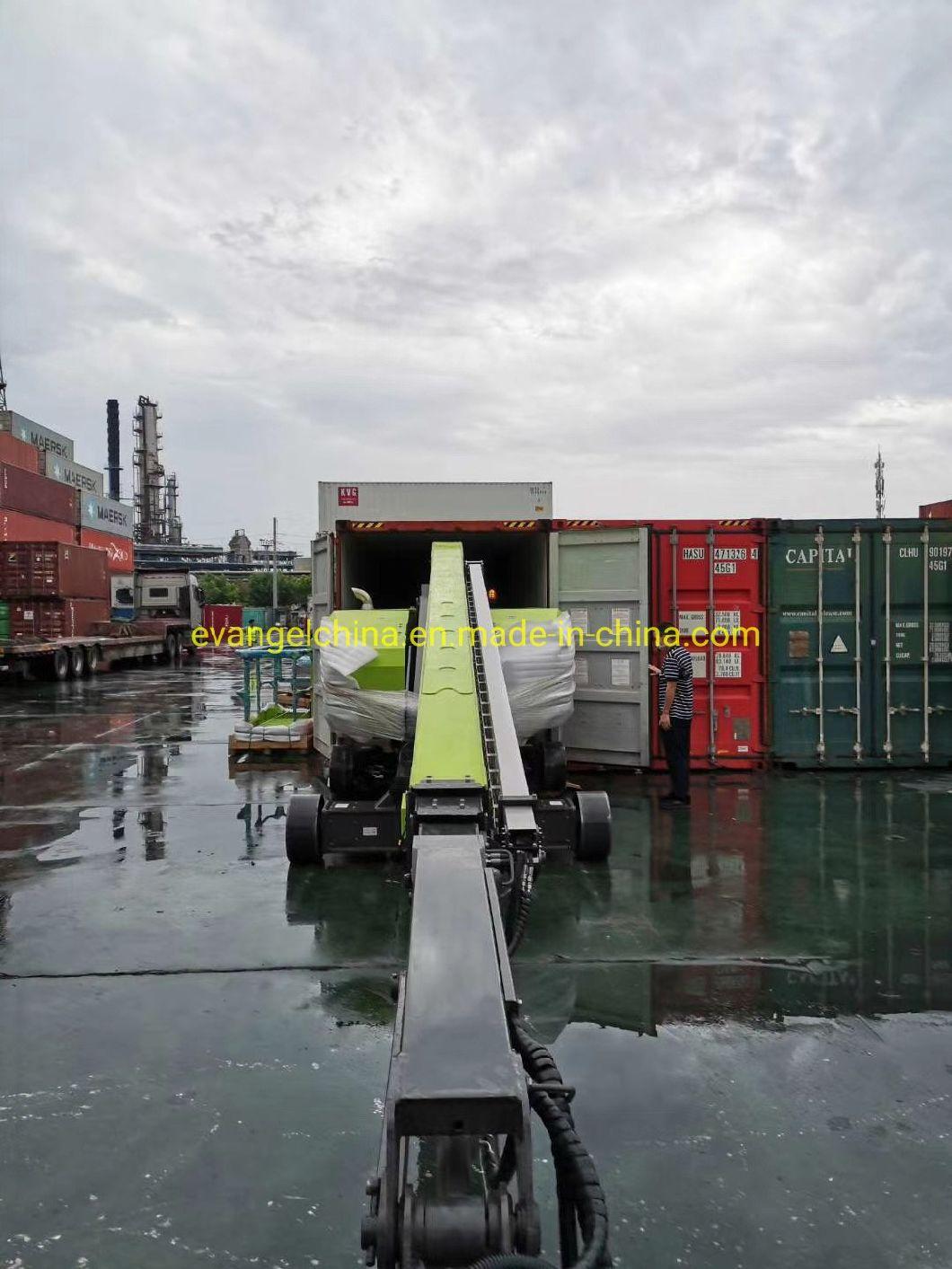

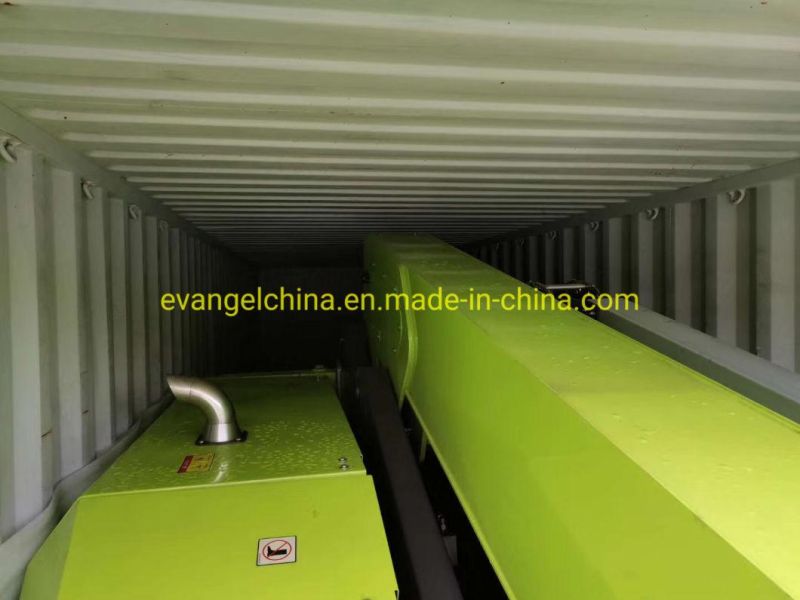

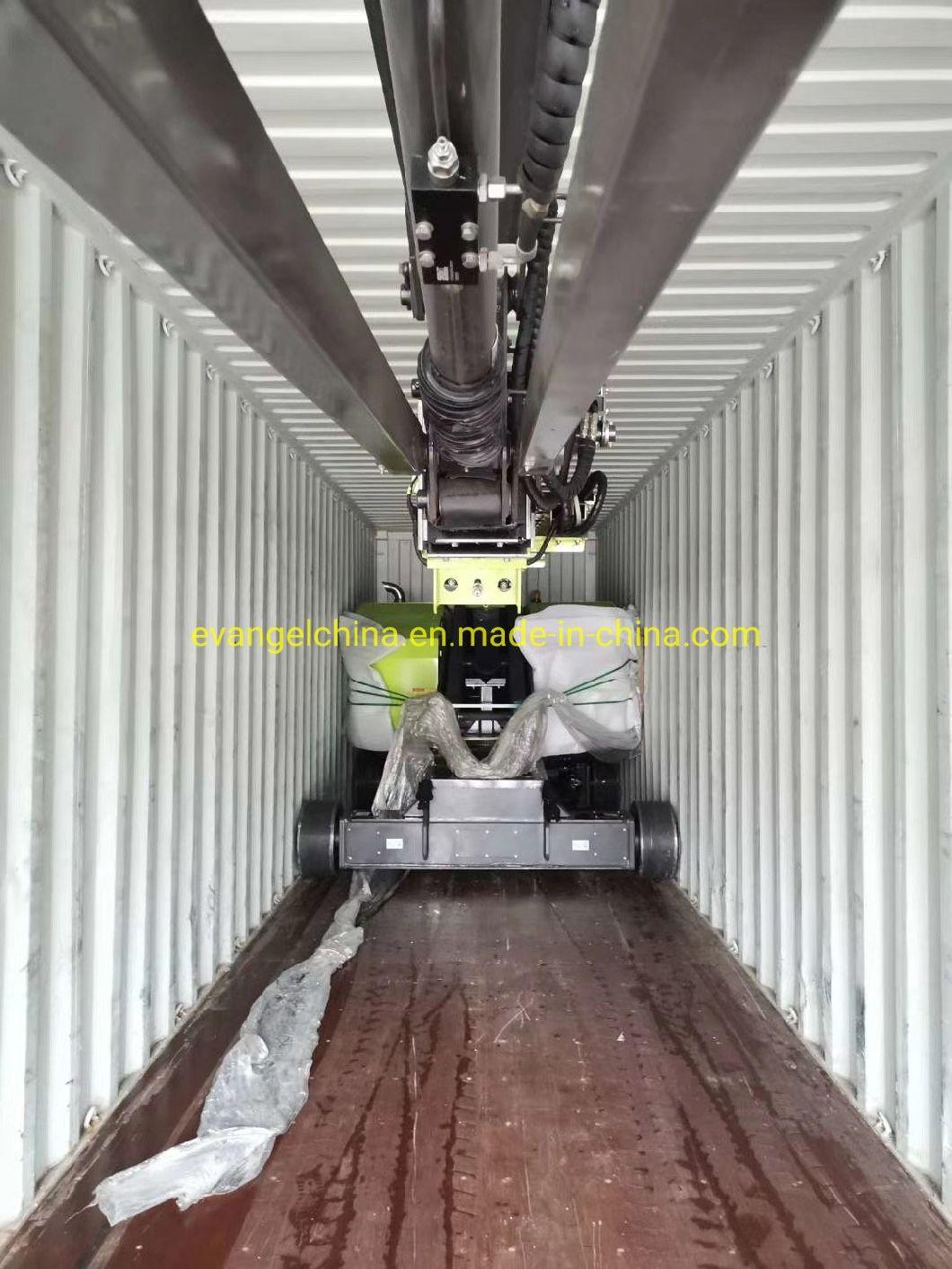

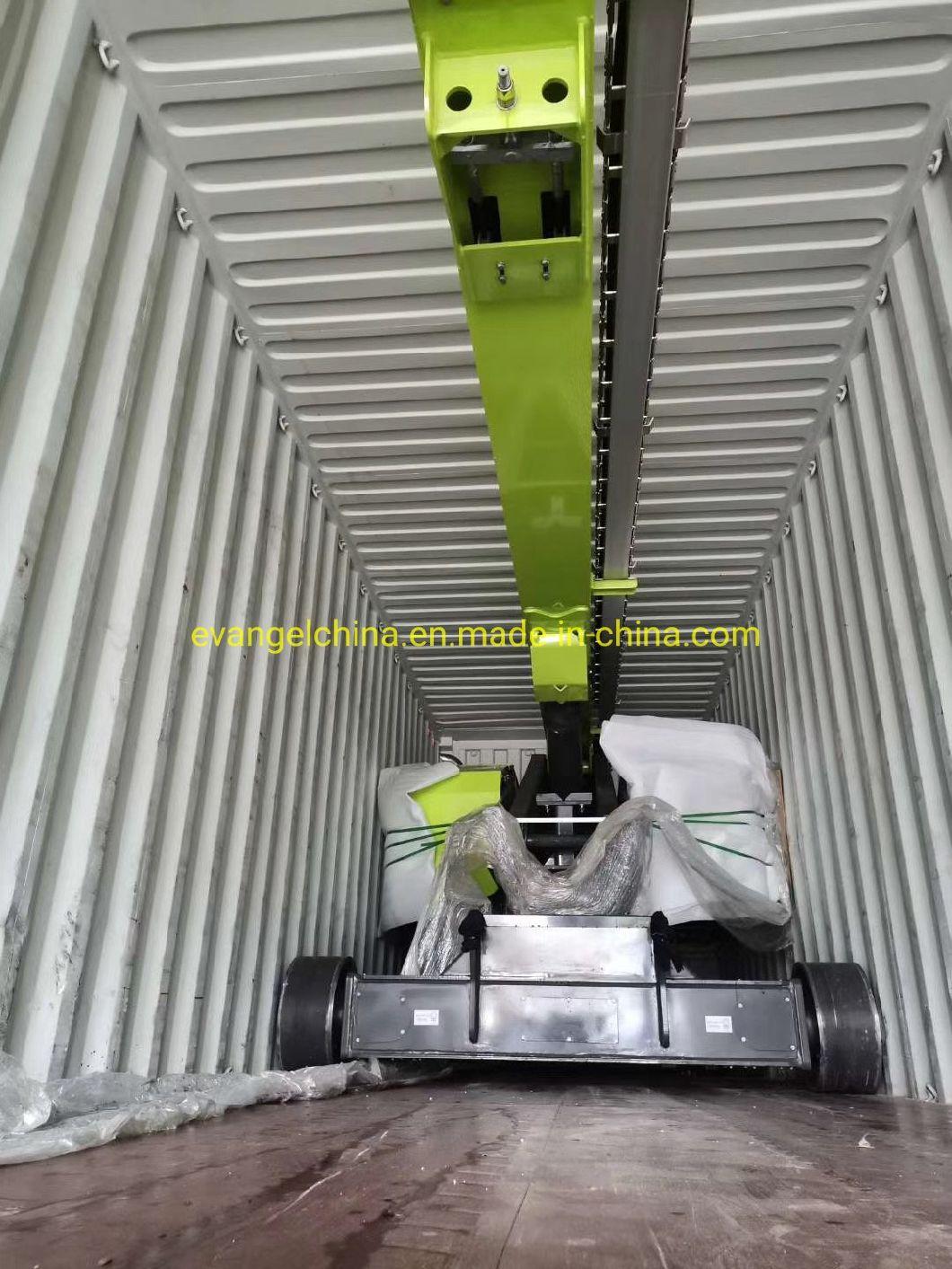

• Transport Package：Nude Packing
• Specification：12.5m*2.49m*2.78m
• Trademark：ZOOMLION
• Origin：China
• Production Capacity：200units,Month

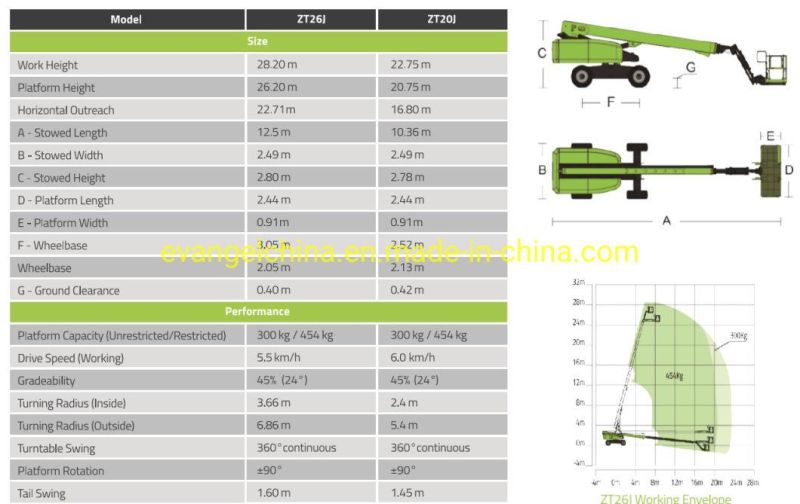

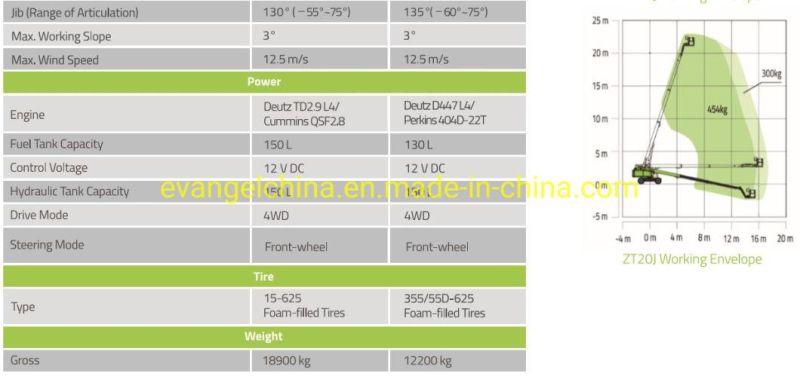

Main Specs of Telescopic Boom LiftsComply with CE/ANSI/GB StandardModelZT34JZT26JZT20JSizeWork Height36m28.20m22.75mPlatform Height34m26.20m20.75mHorizontal Outreach23.50m22.71m16.80mA - Stowed Length13.50m12.5m10.36mB - Stowed Width2.49m2.49m2.49mC - Stowed Height3m2.80m2.78mD - Platform Length2.44m2.44m2.44mE - Platform Width0.91m0.91m0.91mF - Wheelbase3.80m3.05m2.52mWheelbase2.05/3.41m2.11m2.13mG - Ground Clearance0.41m0.40m0.42mPerformancePlatform Capacity (Unrestricted/Restricted)300/454kg300kg/454kg300kg/454kgDrive Speed (Working)5.5km/h5.5km/h6.0km/hGradeability45%(24°)45%   (24°)45%   (24°)Turning Radius (Inside)2.80m3.66m2.4mTurning Radius (Outside)5.70m6.86m5.4mTurntable Swing360°continuous360°continuous360°continuousPlatform Rotation±90°±90°±90°Tail Swing1.88m1.60m1.45mJib (Range of Articulation)130°(-55°~75°)130°(-55°~75°)135°(-60°~75°)Max. Working Slope3°3°3°Max. Wind Speed12.5m/s12.5m/s12.5m/sPowerEngineKohler   KDI2504TCRDeutz TD2.9 L4/Cummins QSF2.8Deutz D447 L4/Perkins 404D-22TFuel Tank Capacity200L150L130LControl Voltage12V   DC12V   DC12V   DCHydraulic Tank Capacity250L150L150LDrive Mode4WD4WD4WDSteering ModeFront-wheel/Rear-wheel/CrabFront-wheelFront-wheelTireTypeIN445/50D710

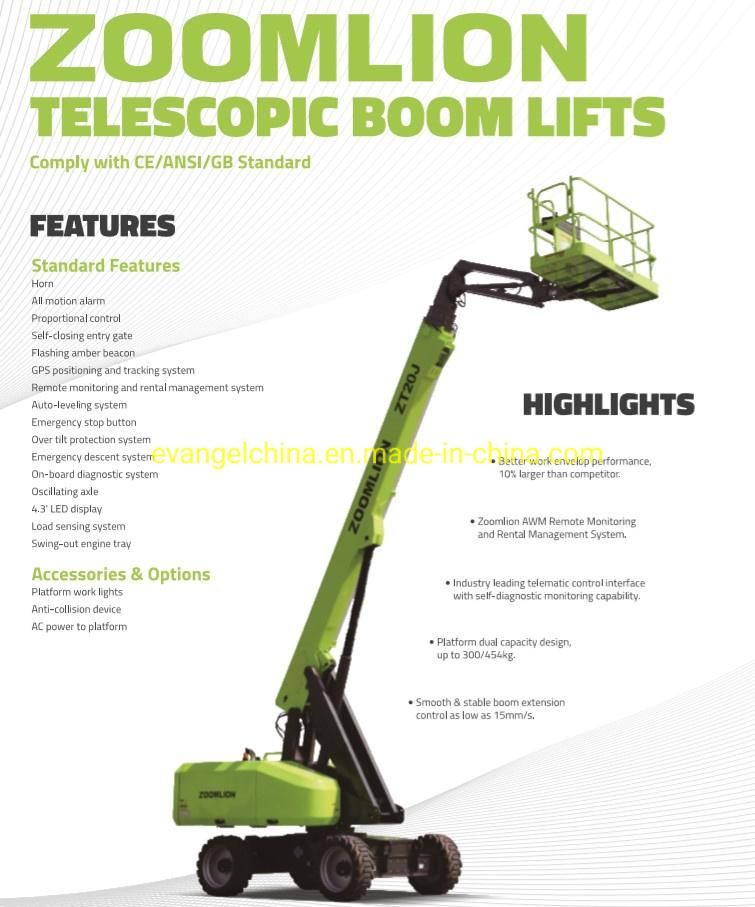

Foam-filled Tires15-625 Foam-filled Tires355/55D-625   Foam-filled TiresWeightGross19200kg18900kg12200kgHighlightsBetter work envelop performance, 10% larger than competitorZoomlion AWM Remote Monitoring and Rental Management SystemSmart telematic control interface with self-diagnostic monitoring capabilityPlatform dual capacity design, up to 300/454 kgSmooth & stable boom extension technique controls the minimum stable extending speed at 0.015 m/sFeaturesStandard Features All motion alarmHornSelf-closing entry gateProportional controlGPS positioning and tracking systemFlashing amber beaconAuto-leveling systemRemote monitoring and rental management systemOver tilt protection systemEmergency stop buttonOn-board diagnostic systemEmergency descent system4.3' LED displayOscillating axleSwing-out engine trayLoad sensing systemAccessories & OptionsPlatform work lightsAnti-collision deviceAC power to platform
