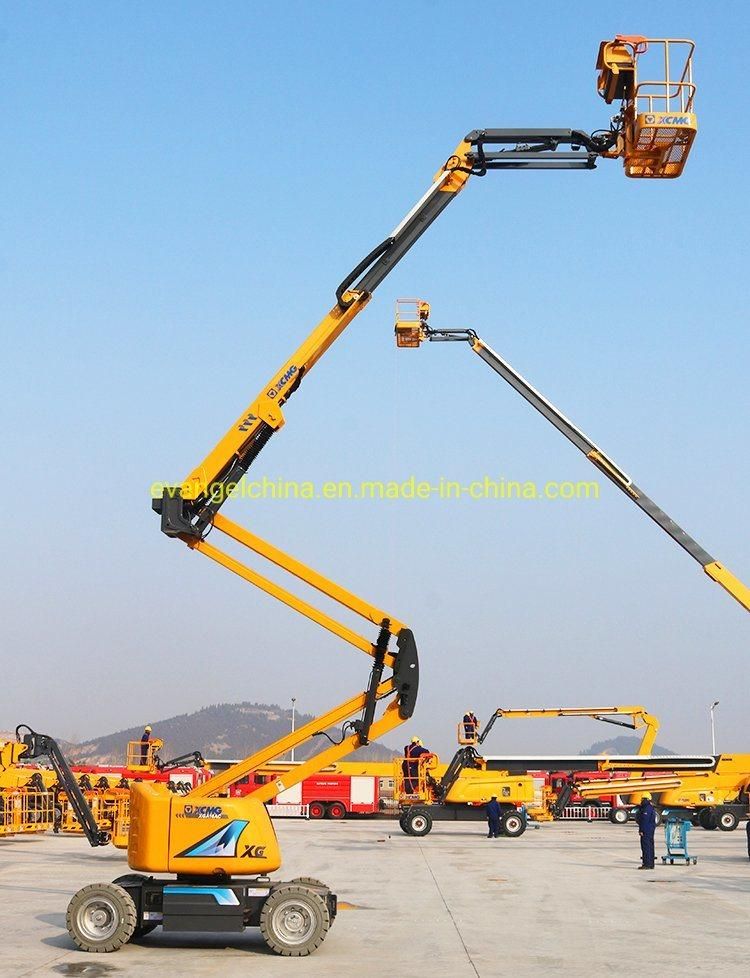

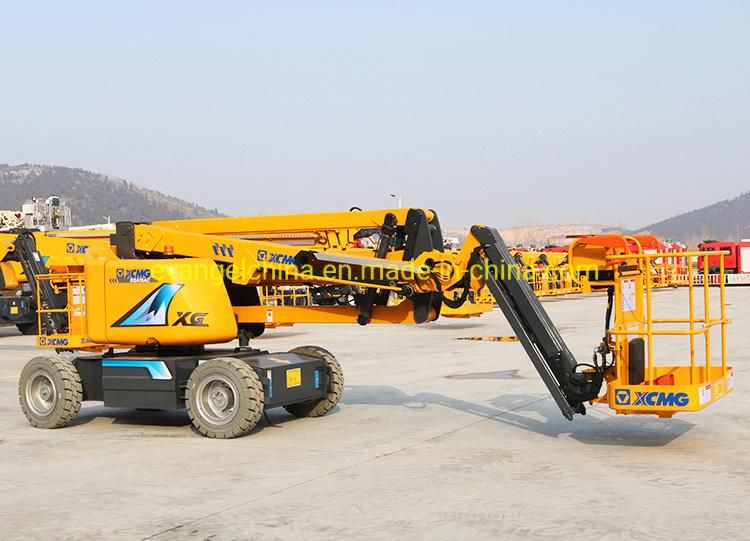

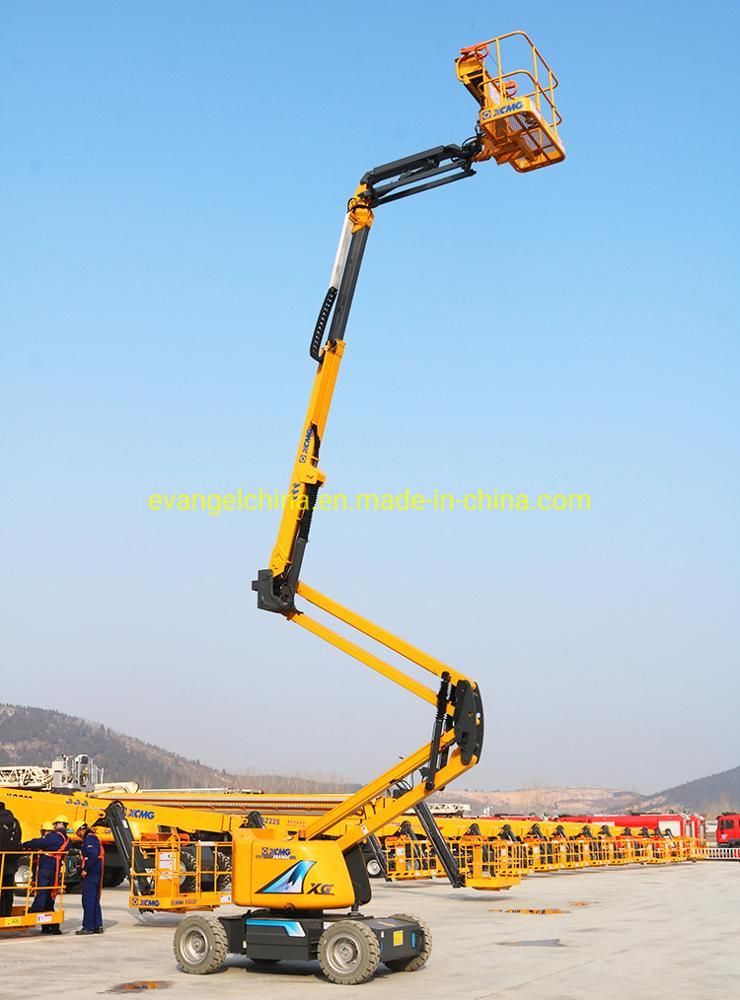

20m 4X4 Articulated Mobile Elevating Work Platform Xga20
Evangel Industrial (Shanghai) Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Articulated Lift
- Carrying Capacity：Middle-Level
- Moves：Moving
- Driven Type：AC
- Running Mode：Moving
Base Info
- Model NO.：XGA20
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Color：Yellow
- Wheelbase：2500mm
- Max. Working Height：20.4m
- Max. Platform Height：18.4m
- Max. Working Range：11.9m
- Max. Carrying Weight：230kg
- Dimension of Platform：1830*760*1150mm
- Transport Package：Nude Packing
- Specification：9080*2490*2680mm
- Trademark：EVANGEL
- Origin：China
- Production Capacity：200units,Month
Description
ItemUnit Parameter Overall length of complete machine mm 9080 Overall width of complete machine mm 2490 Overall height mm 2680 Wheelbase mm 2500 Max. working height m 20.4 Max. platform height m 18.4 Max. working range m 11.9 Max. carrying weight kg 230 Scope of luffing of No.1 arm ° 0~+70 Scope of luffing of Boom No.2 ° 0~+75 Crank arm luffing range ° -65~70 Slewing angle of turntable ° 360 Max. Tail swing mm 0 Dimension of platform mm 1830×760×1150 Slewing angle of platform ° 160 Overall weight kg 10600 Max. traveling speed km/h 6 Min. turning radius m 6 Min. ground clearance mm 230 Max. gradeability % 45 Specification of tire 355/55D625 Engine model Perkins 404D-22 Engine rated power kW/(r/min) 38/(3000)
