• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Rated Loading Capacity：250kg 300kg or Customize
• Min. Platform Height：80mm - 200mm
• Max. Platform Height：1m - 5m
• Platform Size：1430X1000mm or Customize
• Warranty：12 Months
• Main Structure：Scissors with Hydraulic Working System
• Control Mode：Automatic Travel Switch
• Machine Weight：500-1000kg
• Enter/Exit Way：90 or 180 Degree Direction
• Voltage：110V, 220V, 240V, 380V, 400V Customize
• Motor Power：1.1kw - 2.2kw
• Lifting Speed：4m - 6m,Min
• Control Voltage：24V DC
• Drive System：Hydraulic Pump Station and Electric Motor
• Safety：with Safety Bellow Water Oil Dust Proof
• Transport Package：Wooden Box
• Specification：2000*1430*1300mm
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

Basic Info.

Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Rated Loading Capacity 250kg 300kg or Customize Min. Platform Height 80mm - 200mm Max. Platform Height 1m - 5m Platform Size 1430X1000mm or Customize Warranty 12 Months Main Structure Scissors with Hydraulic Working System Control Mode Automatic Travel Switch Machine Weight 500-1000kg Enter/Exit Way 90 or 180 Degree Direction Voltage 110V, 220V, 240V, 380V, 400V Customize Motor Power 1.1kw - 2.2kw Lifting Speed 4m - 6m/Min Control Voltage 24V DC Drive System Hydraulic Pump Station and Electric Motor Safety with Safety Bellow Water Oil Dust Proof Transport Package Wooden Box Specification 2000*1430*1300mm Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 1000

Product Description

Hydraulic Scissor Lift Handicap Elevator for Outdoor Indoor with CE
Wheelchair lift is special designed for disabled and elderly people,so it very stable and safety.
The wheelchair lift is designed with scissors and cyliners, which is covered with high quality black protective curtains around, It is safe and easy to use.

We mainly produce the wheelchair lift from 1m-6m,the load capacity is 250kg, and the platform size can be customized.If you have a special requirements for color,we can also design according to your request.

1. Data Sheet, we produce this scissor type handicap lift according to your required loading capacity, lifting height and platform size. Please tell us if you need to use this wheelchair lift.

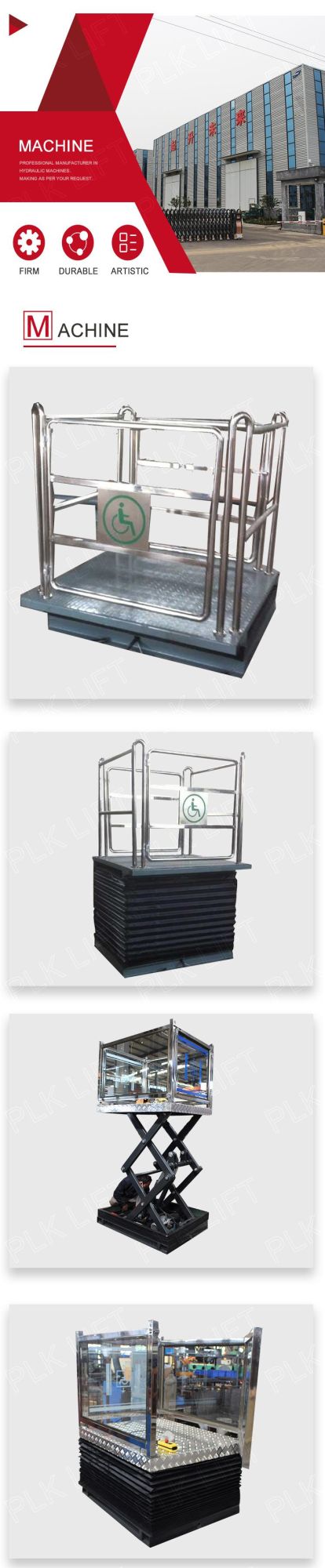

2. Photos Review:



Features and Advantages:
1. Aluminum Alloy material with great anti corrossion function.
2. High quality pump station make the wheelchair lifts and falls very stably.
3. Automatical Safety sensor at bottom stop lowering when come accorss barrier.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.

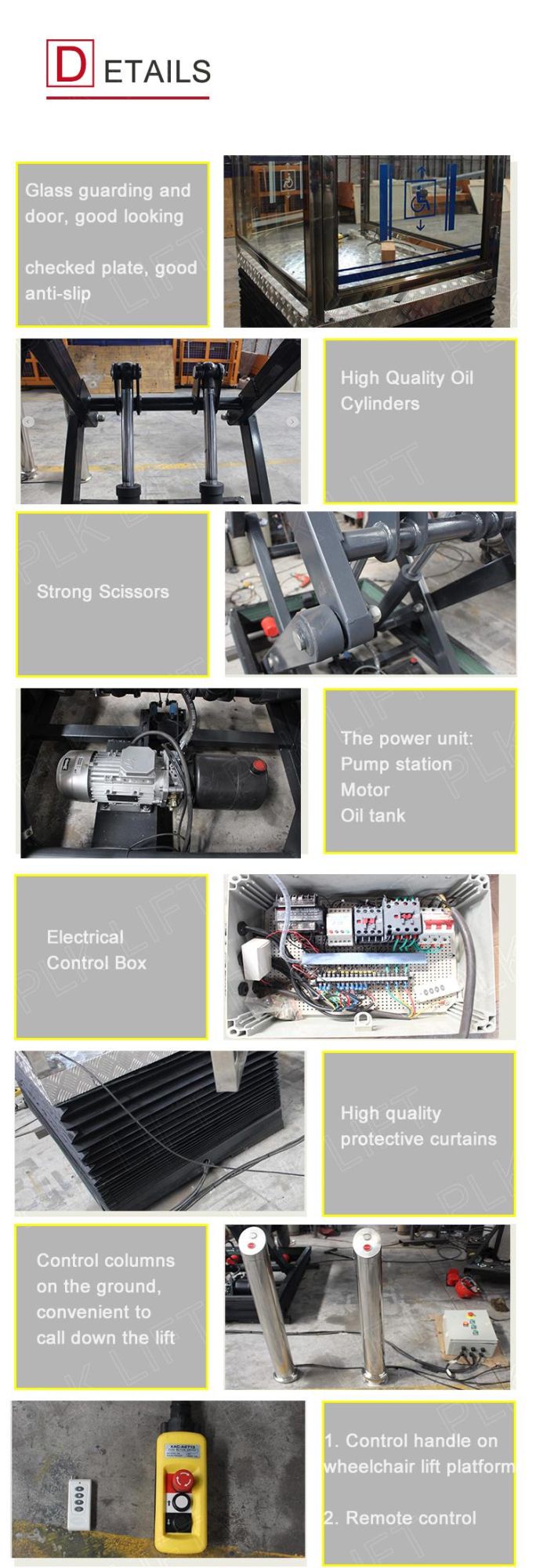

3. Details Display:

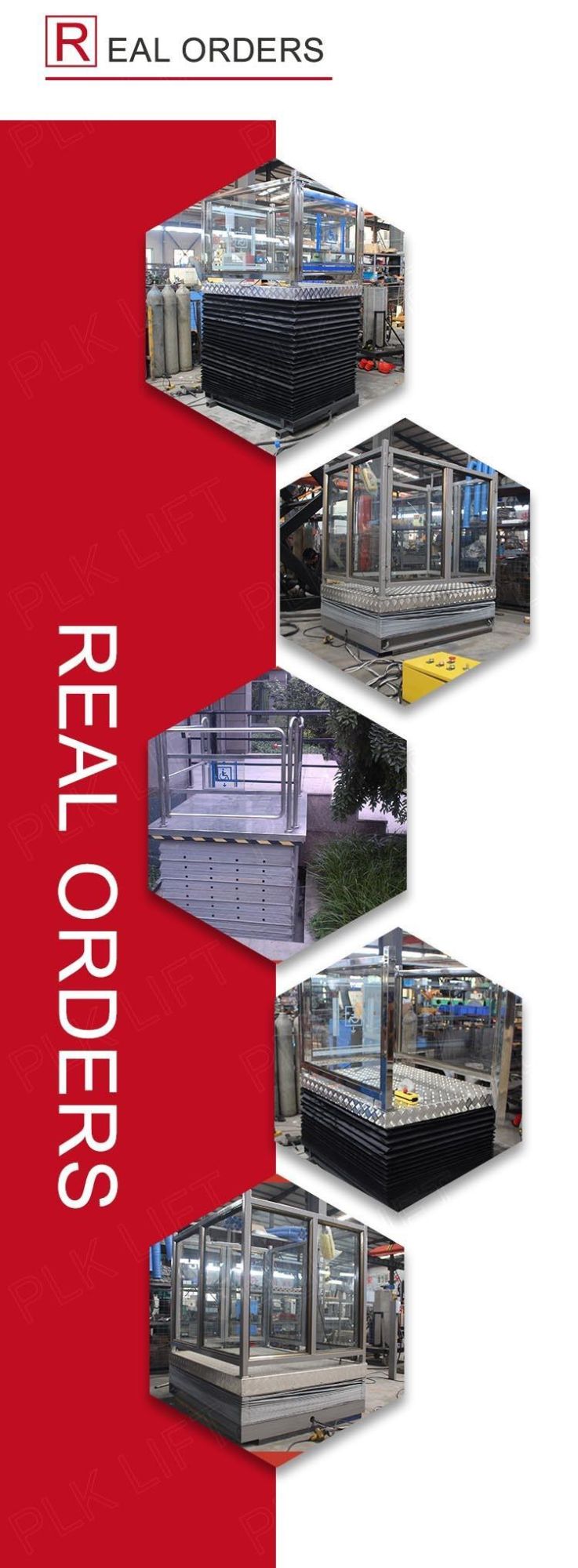

4. Real Orders Show: (We produce our wheelchair lift for both home and abroad, quality is good.)


5. Welcome to visit our factory and place the order with us.


6. All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
