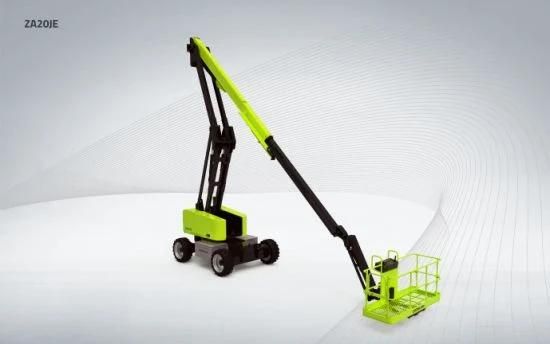

Electric Articulating Boom Lifts |
Comply with CE/ANSI/GB Standard |
Model | ZA20JE GB | ZA20JE CE |
Size |
Work Height | 21.45m | 21.50m |
Platform Height | 19.45m | 19.50m |
Horizontal Outreach | 11.45m | 11.45m |
Up and Over Height | 8.25m | 8.30m |
A - Stowed Length | 8.72m | 8.72m |
B - Stowed Width | 2.49m | 2.49m |
C - Stowed Height | 2.52m | 2.56m |
D - Platform Length | 1.83m | 1.83m |
E - Platform Width | 0.76m | 0.76m |
F - Wheelbase | 2.52m | 2.52m |
G - Ground Clearance | 330mm | 375mm |
Performance |
Platform Capacity | 250kg | 250kg |
Drive Speed | 6.1km/h | 6.1km/h |
Gradeability | 45% | 45% |
Axles Oscillation | 200mm | 200mm |
Turning Radius (Inside) | 2.78m | 2.78m |
Turning Radius (Outside) | 5.49m | 5.49m |
Swing | 400° non-continuous | 360° continuous |
Platform Rotation | ±90° | ±90° |
H-Tail Swing | 0.6m | 0.6m |
Max. Working Slope | 3/5° | 3/5° |
Max. Wind Speed | 12.5m/s | 12.5m/s |
Power |
Battery | 8×6V/420Ah | 8×6V/420Ah |
Charger | 48V/35A | 48V/60A |
Drive Motor | AC 32V/3.3kw | AC 32V/3.3kw |
Lift Motor | AC 32V/10kw | AC 32V/10kw |
Auxiliary Power | Manual Pump | 12V DC |
Hydraulic Tank Capacity | 75L | 75L |
Tire |
Type | 33x12 D610 Foam-filled Tires | 355/55 D625 Foam-filled Tires |
Weight |
Gross | 9200kg | 9200kg |
Highlights |
ZA20JE GB | ZA20JE CE |
Provide a work height of 21.45 m and lift capacity of 250 kg | Provide a work height of 21.50 m and lift capacity of 250 kg |
Fast lift system directly lowers the boom from the highest position to the ground without folding the boom | Fast lift system directly lowers the boom from the highest position to the ground without folding the boom |
Accurate and efficient traveling AC drive system and on-board motion AC drive system provide strong power, stable control and maintenance-free motor. | Accurate and efficient traveling AC drive system and on-board motion AC drive system provide strong power, stable control and maintenance-free motor. |
Independent auxiliary power system for more secure applications | Independent auxiliary power system for more secure applications |
Features |
Standard Features | Accessories & Options |
Proportional control | AC power to platform |
All motion alarm | Airline to platform |
Flashing amber beacon | 2.44×0.91m work platform |
Self-closing entry gate | Non-marking tire |
Emergency descent system | Platform work lights |
Emergency stop button |
Auto-leveling system |
On-board diagnostic system |
Over tilt protection system |
Oscillating axle |
Load sensing system |
4.3' LED display |
Horn |
