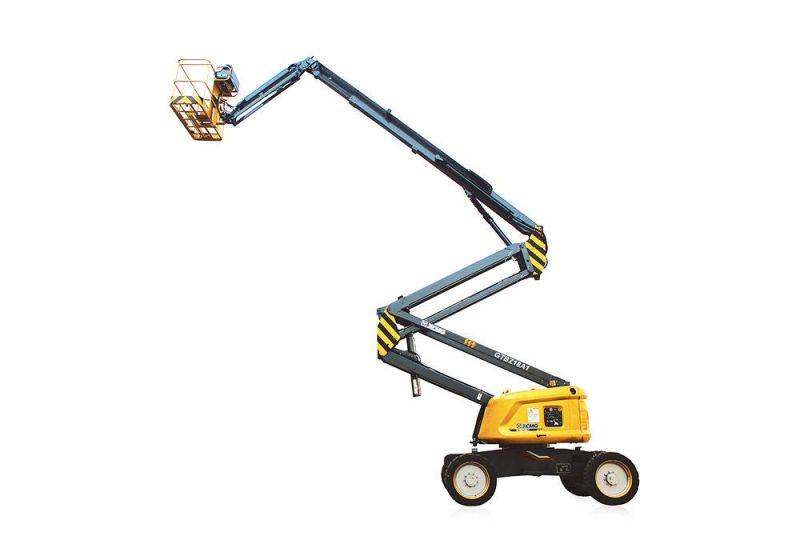

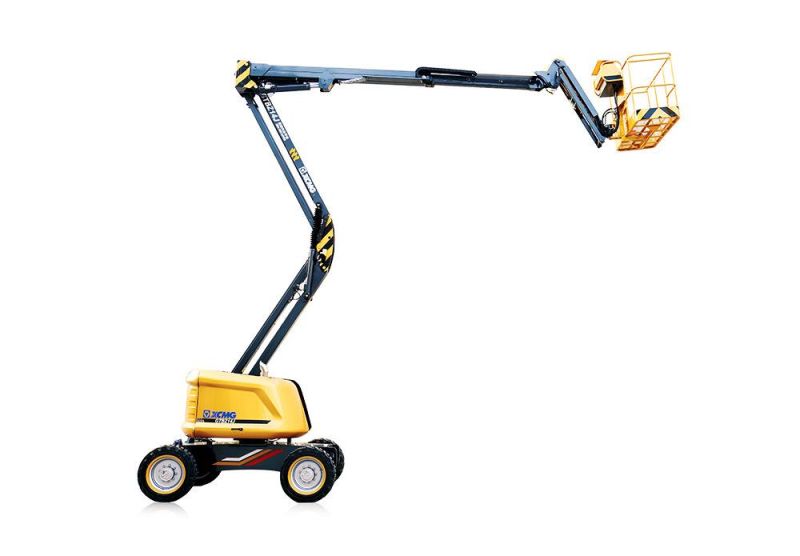

X C M G Gbtz28 28m Ce Certificated 300kg Diesel Mobile Construction Platform Lift

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Screw Lift
  • Carrying Capacity：Middle-Level
  • Moves：Vehicular
  • Driven Type：Diesel
  • Running Mode：Moving

Base Info

  • Model NO.：GBTZ28
  • Feature：Explosion-Proof, Insulating
  • Certification：GS, CE, RoHS, ISO 9001
  • Max. Working Height：28m
  • Max. Allowable Cargo：480kg
  • Max. Horizontal Reach：12.10m
  • Transport Package：Nude
  • Specification：28m
  • Trademark：DINGLI
  • Origin：China
  • HS Code：8705905900
  • Production Capacity：100units Per Month

Description

ItemUnitParametera Overall Lengthmm13380b Overall Width (shaft retracts/stretches)mm2490/3800c Overall Heightmm3070d Wheel Basemm3800Maximum Working Heightm32.2Maximum Platform Height m30.5Maximum Working Rangem23.1Maximum Load Capacitykg480Boom Luffing Range°-11~+75Rotation Angle of Rotating Platform°360°Maximum Tail Wagging(shaft retracts/stretches)mm2085/1430Platform Sizemm2400×900Rotation Angle of Platform°180Total Weightkg18300Maximum Travel Speedkm/h5Minimum Turning Radius(shaft retracts/stretches)m10.8/8.2(Two-turn)6.8/5.8(Four -turn)Minimum Ground Clearancemm260Maximum Grade Ability%45Tire Specification-385/65D22.5Engine Model-Perkins 1104D-44TRated Power of EnginekW/(r/min)55.5/2400X C M G Gbtz28 28m Ce Certificated 300kg Diesel Mobile Construction Platform Lift
