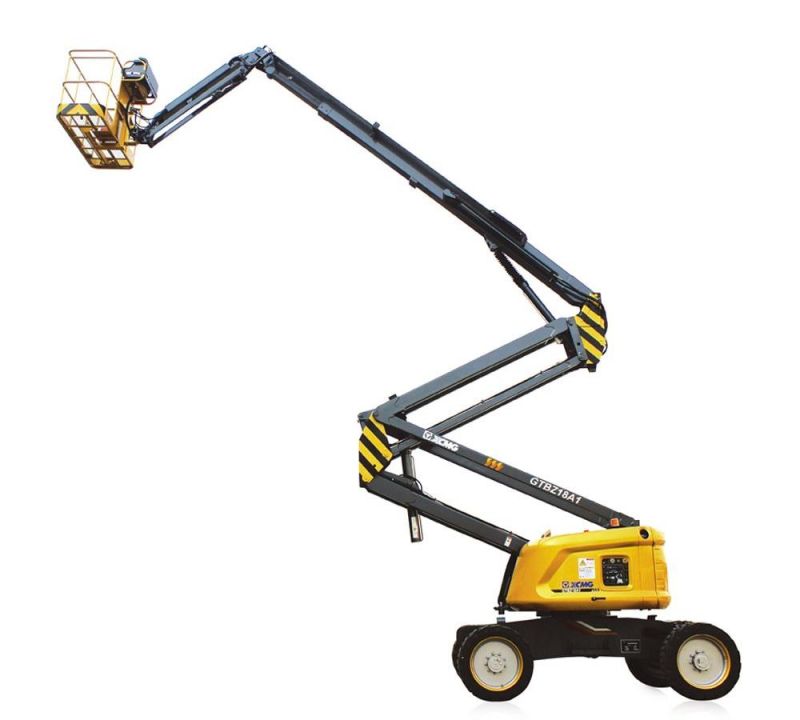

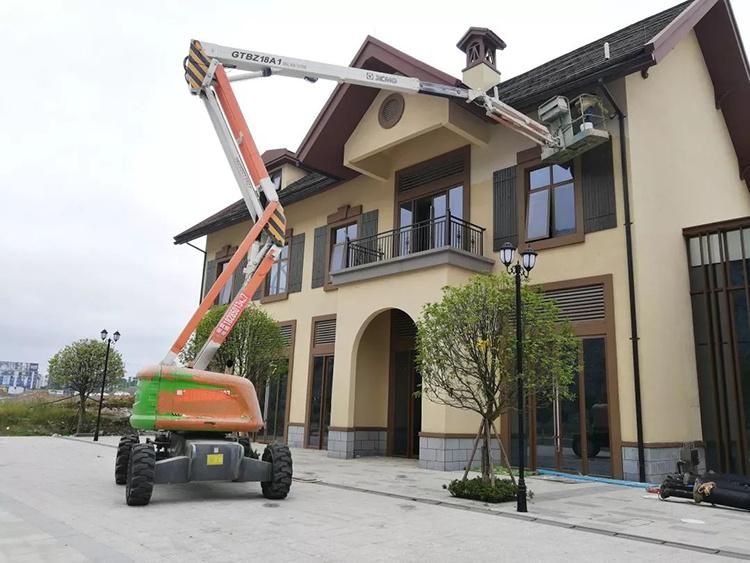

XCMG Gtbz18A1 Hydraulic Boom Lift 18m-Level Articulating Aerial Work Platform for Sale
Xuzhou Construction Machinery Group Co., Ltd.- Maximum Working Height：20.1m
- Maximum Platform Height：18.4m
- Maximum Load Capacity：230kg
- Total Weight：10600kg
- Power：38,(3000)kW,(r,min)
- Transport Package：Comply with Export Packaging Requirements
Base Info
- Model NO.：GTBZ18A1
- Specification：9080*2490*2680mm
- Trademark：XCMG
- Origin：Jiangsu, China
- HS Code：87059091
- Production Capacity：1000,Year
Description
Overview
Product ParametersItem Unit Parameters Overall Length mm 9080 Overall Width mm 2490 Overall Height mm 2680 Wheel Base mm 2500 Maximum Working Height m 20.1 Maximum Platform Height m 18.4 Maximum Working Range m 11.9 Maximum Load Capacity kg 230 1st Boom Luffing Range ° 0~+70 2nd Boom Luffing Range 0~+75 Crank Arm Luffing Range -65~+70 Rotation Angle of Rotating Platform ° 360 Maximum Tail Wagging mm 0 Platform Size mm 1830×760 Platform turning angle ° 180 Total Weight kg 10600 Maximum Travel Speed km/h 6.0 Minimum Turning Radius m 6.0 Minimum Ground Clearance mm 230 Maximum Grade Ability % 45 Tire Specification - 355/55D625 Engine Model - Perkins 404D-22 Rated Power of Engine kW/(r/min) 38/(3000)
Company Profile
FAQ
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
