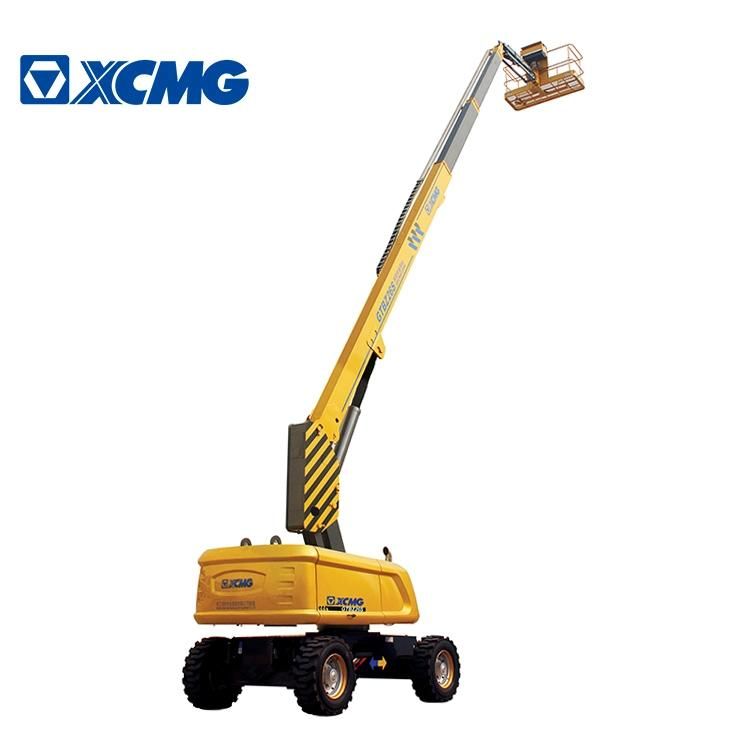

XCMG 26m Telescopic Boom Lift Gtbz26s Aerial Work Platform Price
Xuzhou Construction Machinery Group Co., Ltd.- Maximum Working Height：27.9m
- Maximum Platform Height：26.2m
- Maximum Working Range：23.2m
- Maximum Load Capacity：340kg
- Total Weight：16600kg
- Maximum Travel Speed：6.1km,H
Base Info
- Model NO.：GTBZ26S
- Transport Package：Container
- Specification：12100*2490*3050mm
- Trademark：XCMG
- Origin：Jiangsu, China
- HS Code：87059091
- Production Capacity：10000 Unit,Units , Year
Description
| Item | Unit | Parameter |
| a Overall Length | mm | 12100 |
| b Overall Width | mm | 2490 |
| c Overall Height | mm | 3050 |
| d Wheel Base | mm | 3000 |
| Maximum Working Height | m | 27.9 |
| Maximum Platform Height | m | 26.2 |
| Maximum Working Range | m | 23.2 |
| Maximum Load Capacity | kg | 340 |
| Boom Luffing Range | ° | -5~+75 |
| Crank Arm Luffing Range | ° | -65~+70 |
| Rotation Angle of Rotating Platform | ° | 360 |
| Maximum Tail Wagging | mm | 1400 |
| Platform Size | mm | 2.4×0.9/1.8×0.8 |
| Rotation Angle of Platform | ° | 180 |
| Total Weight | kg | 16600 |
| Maximum Travel Speed | km/h | 6.1 |
| Minimum Turning Radius | m | 6.7 |
| Minimum Ground Clearance | mm | 320 |
| Maximum Grade Ability | % | 45 |
| Tire Specification | - | 385/65-22.5 |
| Engine Model | - | Foton CumminsQSF2.8-71HP |
| Rated Power of Engine | kW/(r/min) | 53/(2200) |
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
