Morn 10m Height Trailer Cherry Picker Tow-Behind Boom Man Lift
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Tree Care and Maintance
- Lift Mechanism：Articulated Lift
- Carrying Capacity：Middle-Level
- Moves：Vehicular
- Driven Type：AC
- Running Mode：Moving
Base Info
- Model NO.：ATB0.2-10
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Working Height：12m
- Outreach：4.5m
- Load Capacity：200kg
- Lift Power：AC,Battery, or Petrol Engin or Bi-Engine
- Moving：by Car or Truck Tow
- Transport Package：Film Packed and Load in One 20FT Container
- Specification：5400*1600*1900mm
- Trademark：MORN BRAND
- Origin：China
- HS Code：8428909090
- Production Capacity：10 Sets Per Month
Description
Double brake system
One brake
One brake line connect to the truck, if the truck stop, boom lift will stop against inertia
One brake by electric, if the truck brake light work, boom lift wheel brake work.
Emergency down
Emergency down by manul valve. If powe cut off, in order to guanartee worker safety, boom lift could be down by mnual.
Boom lock
Towable boom lift, prevent boom sway.

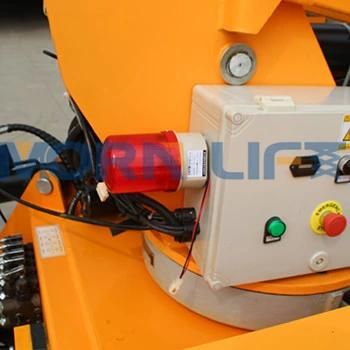

Emergency stop
Each controller with one emergency stop, we could stop the boom lift work under any emergency situation.

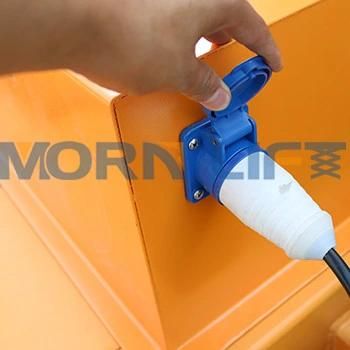

Optional Lift Power
Electric lift power, battery lift power, petrol engine/diesel lift power
Lift power also could be double lift power, eg: Battery lift powre and electric lift power, towable boom lift working indoor use electric lift, outdoor use battery lift power.
Model List
| Model | Platform Size (m) | Lifting Height (m) | Capacity (kg) | Working Radius (m) | Overall Size (m) | Weight (kg) |
| ATB-8 | 0.9*0.7 | 8 | 200 | 4.5 | 5.4*1.6*1.9 | 1600 |
| ATB-10 | 0.9*0.8 | 10 | 200 | 4.5 | 5.4*1.6*1.10 | 1600 |
| ATB-12-1 | 0.9*0.9 | 12 | 200 | 7 | 5.8*1.8*2.2 | 1800 |
| ATB-12-2 | 0.9*0.10 | 12 | 200 | 7 | 5.8*1.8*2.3 | 1800 |
| ATB-14 | 0.9*0.11 | 14 | 200 | 8 | 6.55*1.66*2.13 | 2500 |
| ATB-16 | 0.9*0.12 | 16 | 200 | 8 | 7.0*1.8*2.25 | 2800 |
| ATB-18 | 0.9*0.13 | 18 | 200 | 8 | 7.2*1.8*2.3 | 3800 |

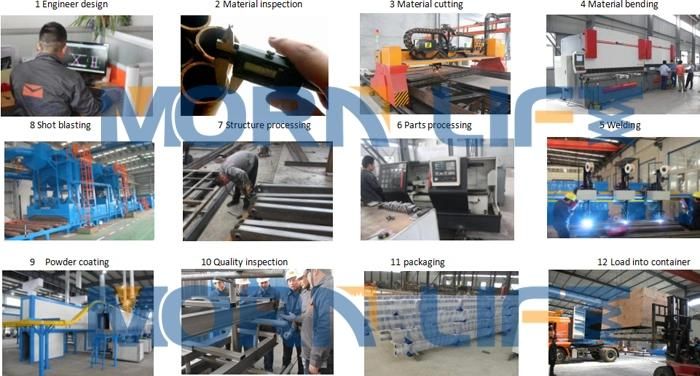

Manufacturing Technology & Process
1. MORN production process is controlled by strict Inner Quality Control System.
2. Apply to CE standard.
3. Full set of CNC manufacturing equipment, standard production lines and fast delivery with sufficient stocks.
MORN service:
1) Installation drawing and manual will be provided after the order.
2) All the machines will be full tested before shipment.
3) The total machine guarantee is 12 moths.
4) 24 Hours technical support, email, telephone or video online.
5) User-friendly English manual for machine using and maintaining.
6) Several sets wearing parts will be free for you.
Contact Us for More Work Video and Photoes of Boom Lift
