CE Scissor Electric Wheelchair Lifts for Bus Loading 350kg
Changzhou Xinder-Tech Electronics Co., Ltd.- Application:Bus Wheelchair Lift
- Carrying Capacity:300kg
- Driven Type:Hydraulic
- Running Mode:Stationary
- Feature:Scissor Lift
- Certification:CE
Base Info
- Model NO.:WL-UVL-1300
- Platform Size:1220*751mm,1220*800mm
- Loading Capacity:300kg
- Max Lifting Height:1400 Mm
- Overall Length:1867-2015mm
- Overall Width:1135mm
- Overall Height:133mm
- Door Width Required:1100mm
- Option:Handrail
- Safety:Anti-Skip Platform
- Transport Package:Wooden Box
- Specification:CE certificate, 180kg
- Trademark:xinder
- Origin:Jiangsu. China
- HS Code:84289090
- Production Capacity:100 PCS,Month
Description
Basic Info.
Model NO. WL-UVL-1300 Platform Size 1220*751mm/1220*800mm Loading Capacity 300kg Max Lifting Height 1400 Mm Overall Length 1867-2015mm Overall Width 1135mm Overall Height 133mm Door Width Required 1100mm Option Handrail Safety Anti-Skip Platform Transport Package Wooden Box Specification CE certificate, 180kg Trademark xinder Origin Jiangsu. China HS Code 84289090 Production Capacity 100 PCS/MonthProduct Description

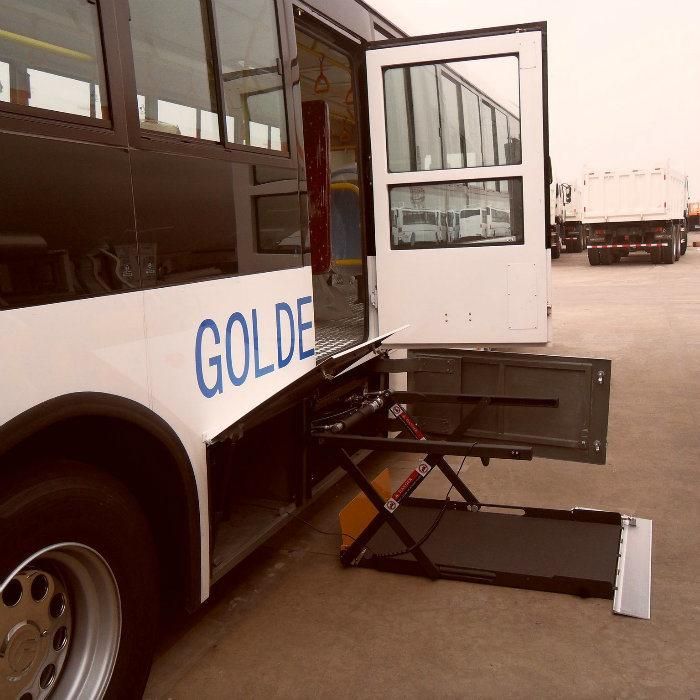

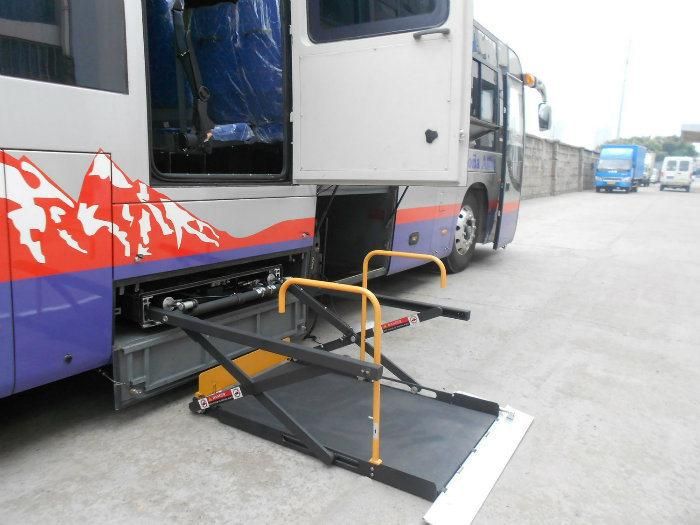

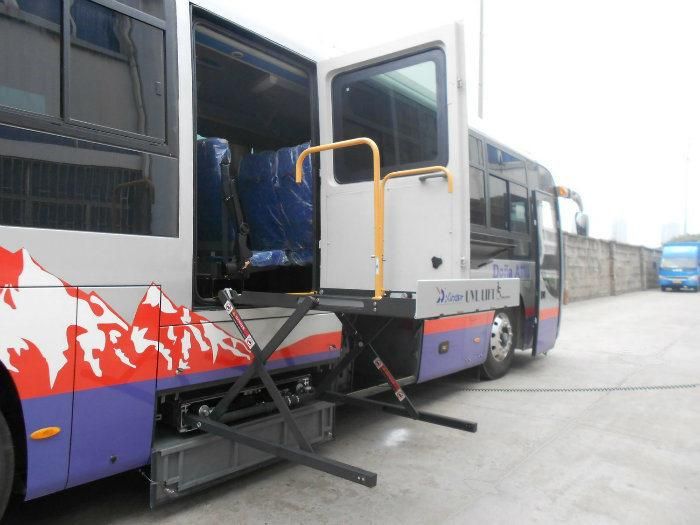

1. INFORMATIONWL-UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 300KG. The wheelchair occupant, attendant or driver can operate it by operating switches.

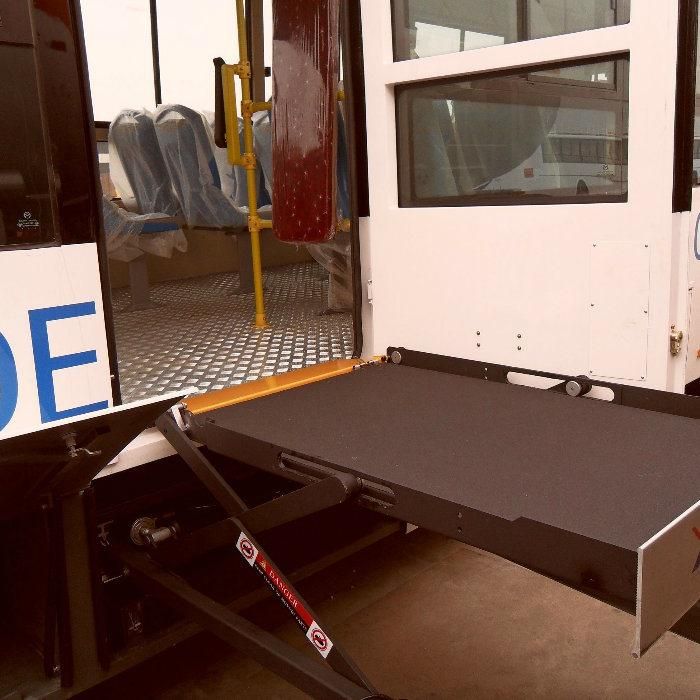

This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.
2. ADVANTAGES
Electric outboard rollstop and automatic inboard rollstop
Super thin compact design
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup system
3. TECHNICALS
Raise lift platform: motor drive, hydraulic function;
Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;
Raise platform manually: operate manual pump;
Lower platform manually: rotate button of manual pressure release valve with specialized tool;
Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);
Model & Capacity of hydraulic oil: L-HV46
model | platform | dimension | max up stroke | max down stroke | loading capacity | volt | MAX LIFTING HEIGHT |
WL-UVL-1300 | 751*1297 | 2015*1135*167 | 760 | 655 | 300KG | 12-24V | 1415mm |
WL-UVL-1300-S | 751*1297 | 1887*1135*167 | 760 | 655 | 300KG | 12-24V | 1415mm |
WL-UVL-1300II | 751*1297 | 1974*1135*167 | 540 | 750 | 300KG | 12-24V | 1290mm |
