• Model NO.：LD-3T
• Certification：CE
• Condition：New
• Color：Blue
• Name：Double Ended Shear Beam
• Factory：More Than 20 Years Manufactory Experience
• Brand Name：Hugo
• Loading Port：Shanghai Port,Tianjin Port
• Warranty：1 Years
• Painting Color：as Your Order
• Quality Control：According to EU Standard
• Standard Speed：20m,Min
• Payment Term：T,T L,C
• After-Sales Service：Overseas Srevice Provided
• Transport Package：Packing by Carton, Woodon Case
• Specification：CE ISO, TUV, SGS
• Trademark：HUGO
• Origin：China-Shanghai
• HS Code：8425110000
• Production Capacity：100000PCS ,Month

Basic Info.

Model NO. LD-3T Certification CE Condition New Color Blue Name Double Ended Shear Beam Factory More Than 20 Years Manufactory Experience Brand Name Hugo Loading Port Shanghai Port,Tianjin Port Warranty 1 Years Painting Color as Your Order Quality Control According to EU Standard Standard Speed 20m/Min Payment Term T/T L/C After-Sales Service Overseas Srevice Provided Transport Package Packing by Carton, Woodon Case Specification CE ISO, TUV, SGS Trademark HUGO Origin China-Shanghai HS Code 8425110000 Production Capacity 100000PCS /Month

Product Description

380v 3t double ended shear beam with ce certificate

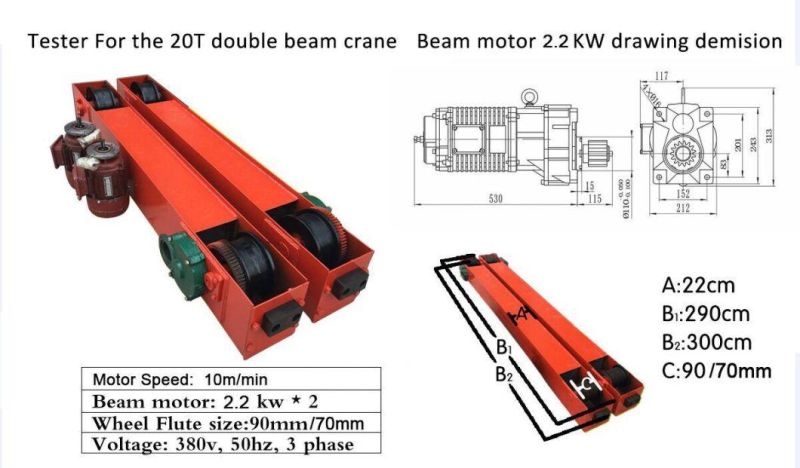

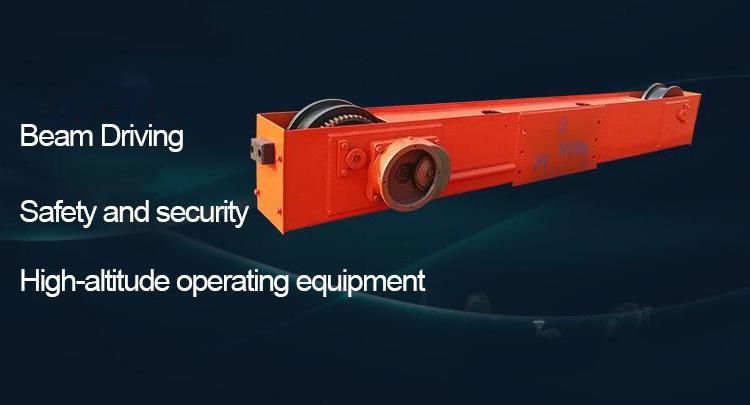

Description Of overhead traveling crane beam

End carriage of European single girder crane using rectangular steel tube as components, NC boring milling customized machine , completes opening , boring , milling ,and F series reducer, hollow shaft drive. High work level, wide range of speed regulation, follow the word trend.

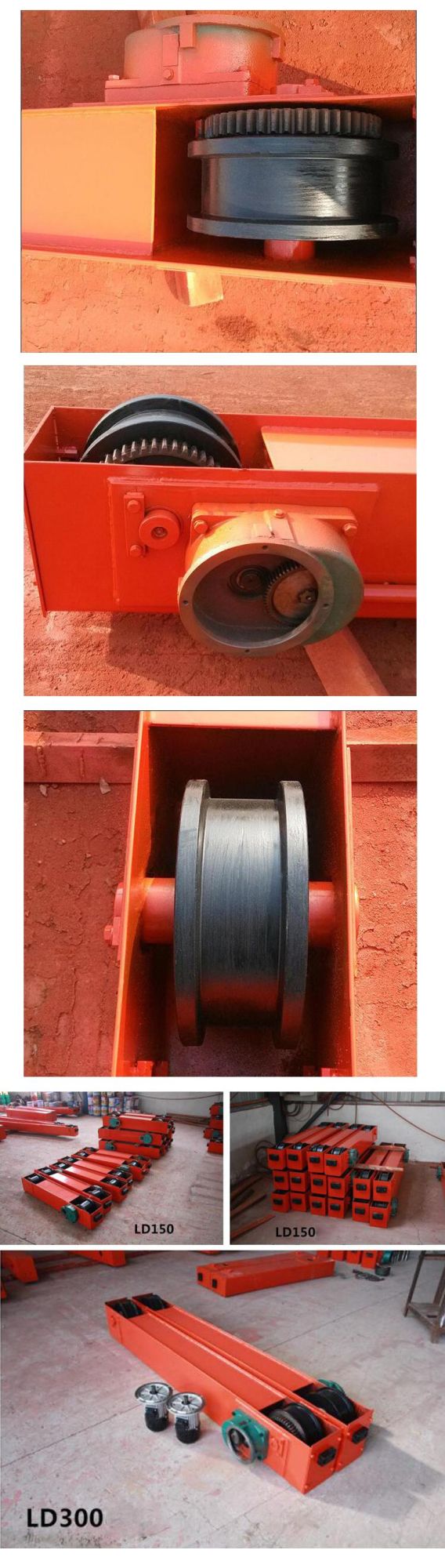

A complete set of end carriage including wheels, motors, main beam connecting plates, main beam connecting bolts, stamping plates , polyurethane buffers and so on.

Our end carriages are compact, rail-mounted travel units for direct connection to crane girders and other load-bearing structures. The end carriages consist of a torsionally rigid box section, wheel blocks and one of our geared motors. They offer excellent travel characteristics - also for high loads

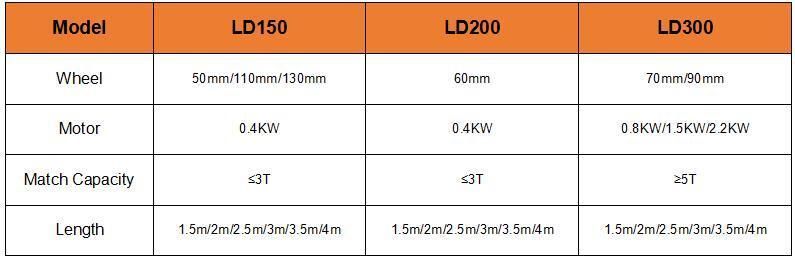

Spec. For 380v 3t double ended shear beam with ce certificate :

Features Of  380v 3t double ended shear beam with ce certificate :

• optimum travel characteristics
• smooth starting thanks to matching drive solutions
• high operating reliability
• easy assembly and accessibility

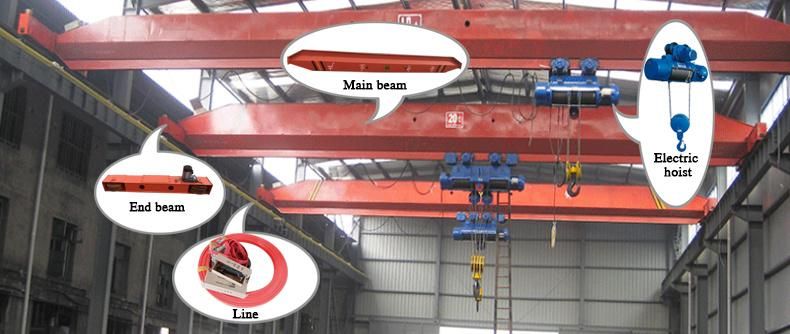

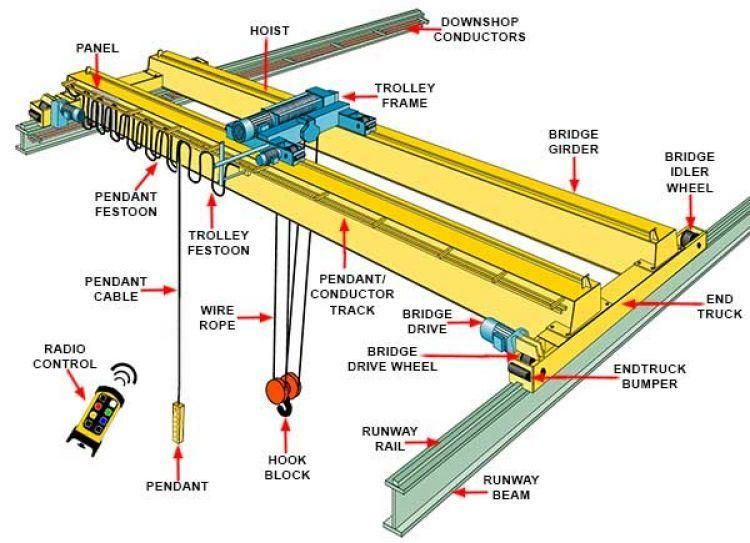

• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.





Using For 380v 3t double ended shear beam with ce certificate :




Main Features:

1.High rigidity

2.Torsionally rigid, enclosed box-section profile (reinforced connection, welded diaphragm plate)

3.Engineering tolerances in the crane girder connection area

4.Optimum travel characteristics thanks to precise travel wheel axle arrangement and exact adjustment of the crane span dimension

5.Low wear

6.Maintenance-free travel drives thanks to anti-friction bearings lubricated for life and travel wheels made of spheroidal-graphite cast iron
