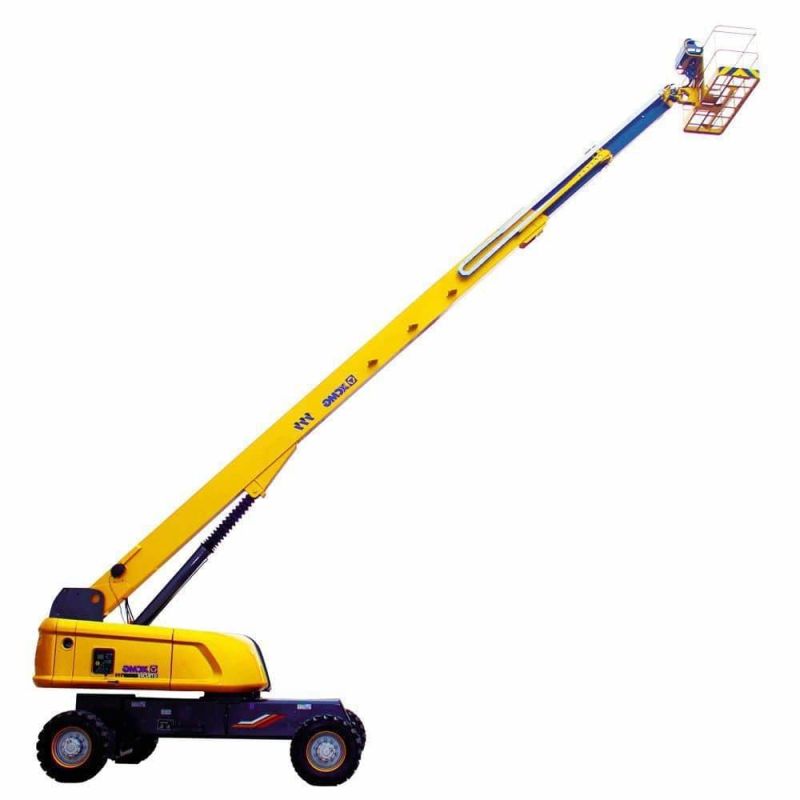

32m Mobile Aerial Work Platform Boom Lifter Cherry Picker for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Application：Workshop Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Middle-Level
- Moves：Moving
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info

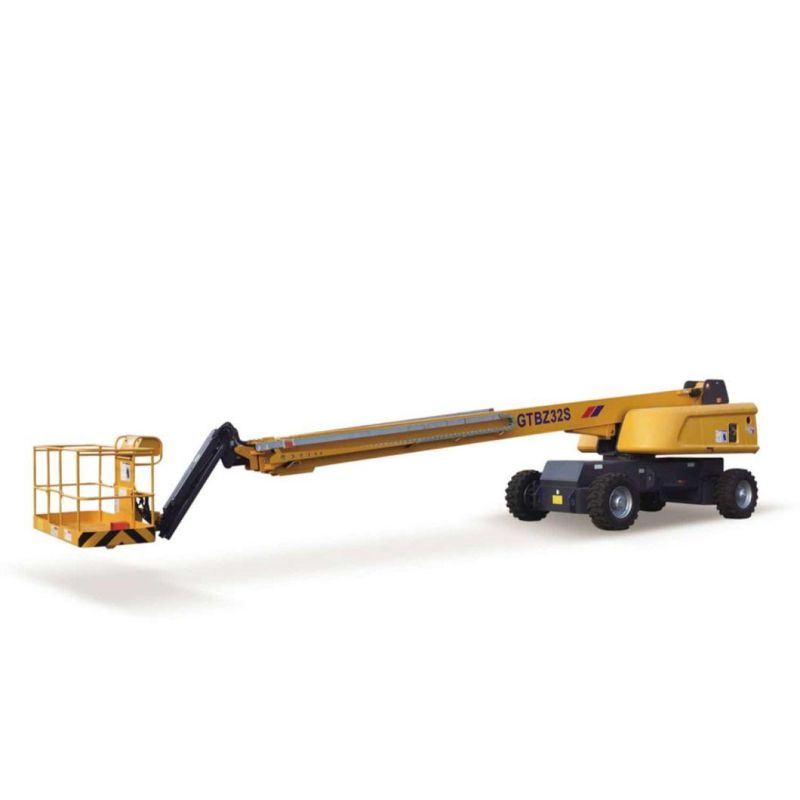

- Model NO.：GTBZ32S
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Work Height：32m
- Transport Package：in Nude
- Specification：6690*2260*2130MM
- Trademark：ORIEMAC
- Origin：China
- Production Capacity：5000PCS,Year
Description
6690
Overall width
mm
2260
Overall Height
mm
2130
Wheel Base
mm
2100
Maximum Working Height
m
15.75
Maximum Platform Height
m
14.05
Maximum Working Range
m
8.22
Maximum Load Capacity
kg
230
1stBoom luffing Range
°
0~+60
2ndBoom luffing Range
°
-8~+75
Crank Arm Luffing Range
°
-60~+80
Rotation Angle of Rotating Platform
°
355
Maximum Tail Wagging
mm
0
Platform Size
mm
1830×760×1150
Platform turning angle
°
180
Total Weight
kg
6900
Maximum Travel Speed
km/h
6.1
Minimum Turning Radius
m
4.5
Minimum Ground Clearance
mm
250
Maximum Grade Ability
%
45
Tire Specification
315/55D20
Engine Model
Perkins
404D-22
Rated Power of Engine
kW/(r/min)
38/(3000)
