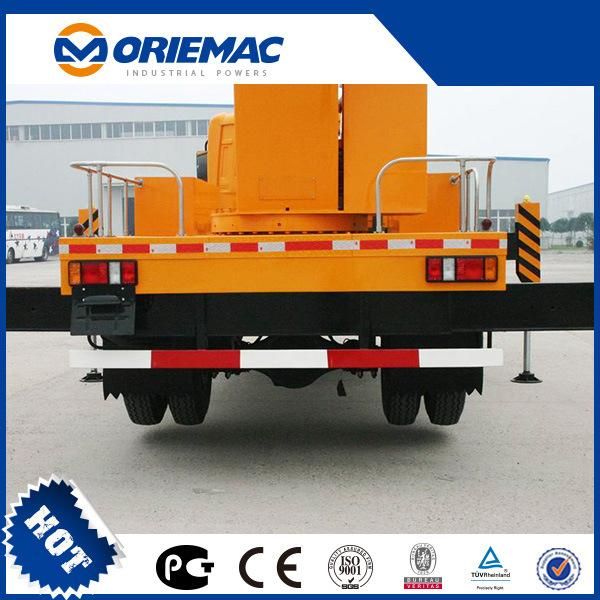

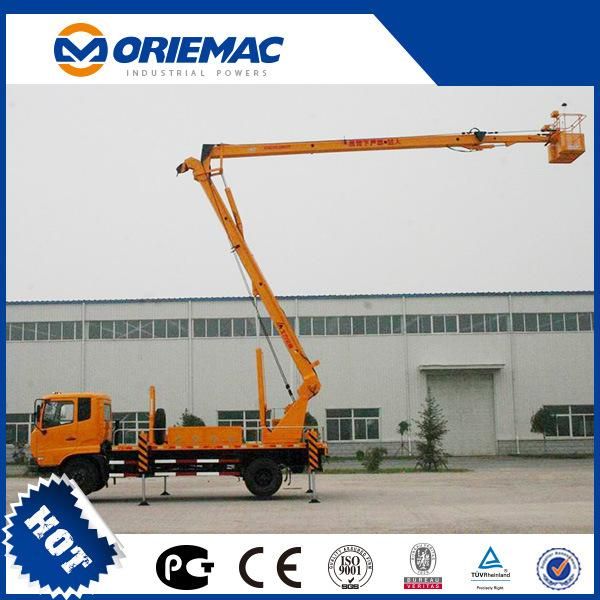

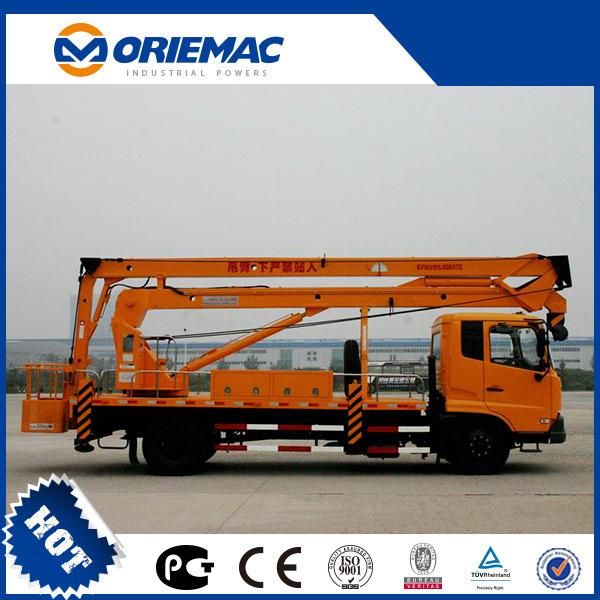

32m Composite Boom (ISUZU) Aerial Working Platform
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism:Telescoping Lift
- Carrying Capacity:Middle-Level
- Moves:Moving
- Driven Type:Hydraulic
- Running Mode:Moving
Base Info
- Model NO.:KFM5220JGK-GSH-32Q
- Feature:Explosion-Proof, Insulating
- Certification:ISO 9001
- Diemension:11260*2500*3710mm
- Rated Load:200mm
- Max. Working Height:32000mm
- Max. Height From Ground:30300mm
- Max. Working Radius:13350mm
- Chassis:Isuzu
- Color:Yellow
- Adjustment:Single Adjustable
- Horizontal Span:4800mm
- Vertical Span:5750mm
- Transport Package:Nude
- Specification:ISO, CE
- Trademark:N. traffic
- Origin:China
- Production Capacity:3000PCS,Month
Description
Bulletin No.
Type
External dimensions(mm)
Structure type
Three-section articulated boom & One-section telescopic boom

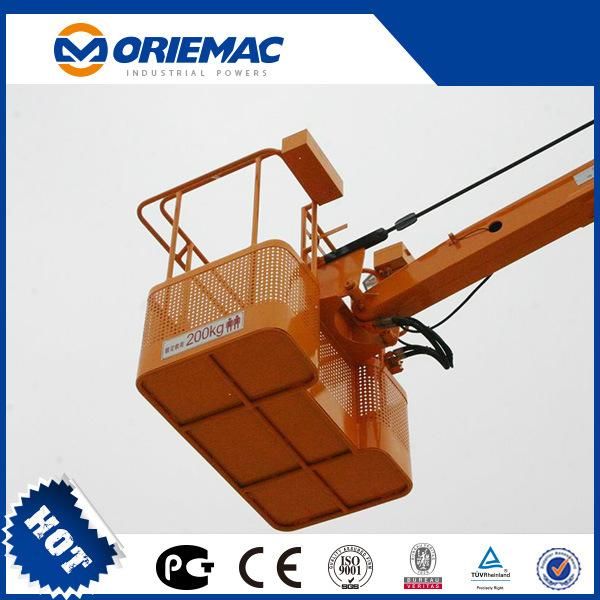

Working Cage
Internal Size(mm)
Rated loading(kg)
200 (or 2 persons )
Max. Working height(mm)
Max. Height from ground(mm)
Max. Working radius(mm)
Working radius when doing the highest height(mm)
Working Boom
Max. Raising angle of lower boom(º)
Max. Raising angle of upper boom(º)
Max. Raising angle of jib(º)
Boom rack rotation angle(º)
Max. Extending traveling of extending boom (mm)
Outrigger
Vertical span(mm)
Horizontal span(mm)
Traveling of vertical outrigger(mm)
Adjustment
Single adjustable
