• Model NO.：SSL3-2.4
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Color：Yellow or Blue
• Warranty：12 Months
• Spare Parts：Oil Ring, Seal Ring etc
• Speed：3-6m,Min
• Platform Size：2000*2000mm
• Closed Height：660mm
• Guard Rail：1100mm
• Surface：Rust-Proof
• Platform：Antiskid
• Transport Package：Plywood Case or Nude Packing
• Trademark：MORN
• Origin：China
• HS Code：84289090
• Production Capacity：400 Months Per Month

Basic Info.

Model NO. SSL3-2.4 Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Color Yellow or Blue Warranty 12 Months Spare Parts Oil Ring, Seal Ring etc Speed 3-6m/Min Platform Size 2000*2000mm Closed Height 660mm Guard Rail 1100mm Surface Rust-Proof Platform Antiskid Transport Package Plywood Case or Nude Packing Trademark MORN Origin China HS Code 84289090 Production Capacity 400 Months Per Month

Product Description

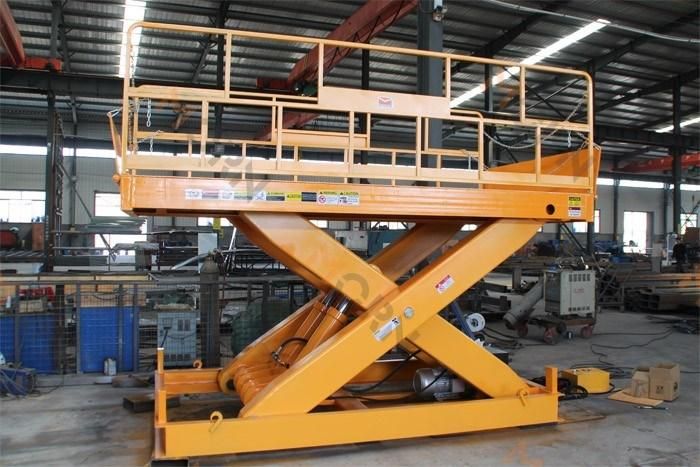

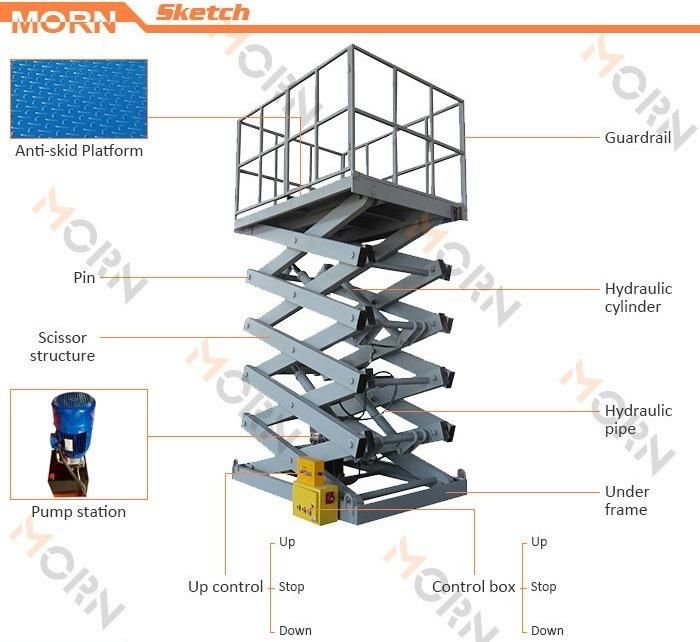

 CE approved hot sale cargo scisssor lift platform Scissor lift is droved by the electric and hydraulic system; it is installed in the pit or the ground floor to convey. the goods and car from one floor to another floor, hydraulic scissor lift table is generally used for lifting cargo and
cars to working place. So scissor lift could used in many places and applications.

Main model list for your reference

Model	Capacity	Platform size	Lifting height	Closed height	Dimension	Voltage
SSL3-2.4	3T	2.0*2.0M	2.4M	660MM	2.0*2.0*0.66M	4KW/380V
SSL 2-5	2T	2.1*1.2M	5.0M	870MM	2.1*1.2*0.87M	4KW/380V
SSL 1-4.5	1T	2.1*1.5M	4.5M	800MM	2.1*1.5*0.80M	3KW/380V
SSL 5-6.5	5T	2.2*1.6M	6.5M	1280MM	2.2*1.6*1.28M	5.5KW/380V
SSL 3-6.5	3T	2.2*1.9M	6.5M	1520MM	2.2*1.9*1.52M	5.5KW/380V
SSL 1.5-3.8	1.5T	2.2*2.0M	3.8M	700MM	2.2*2.0*0.70M	4KW/380V
SSL 1-6	1T	1.9*1.1M	6.0M	1100MM	1.9*1.1*1.10M	3KW/380V
SSL 2-6	2T	2.0*1.3M	6.0M	1200MM	2.0*1.3*1.20M	4KW/380V
SSL 1.5-0.8	1.5T	2.0*1.5M	0.8M	500MM	2.0*1.5*0.50M	3KW/380V
SSL1 -4.3	1T	2.0*1.8M	4.3M	800MM	2.0*1.8*0.80M	4KW/380V
SSL 2-6	2T	2.0*2.0M	6.0M	1030MM	2.0*2.0*1.03M	4KW/380V
SSL 3-2.4	3T	2.0*2.0M	2.4M	630MM	2.0*2.0*0.63M	2.2KW/380V

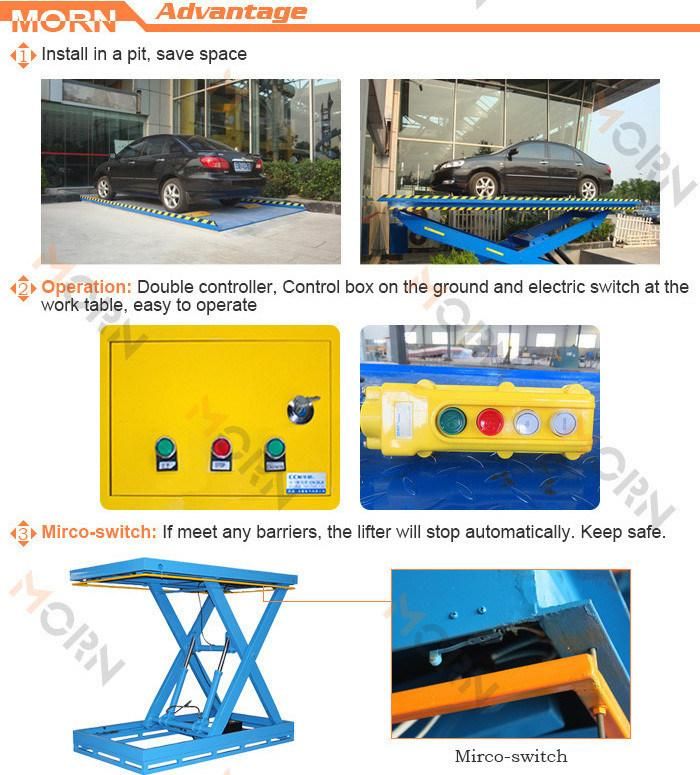

Advantage of scissor lift table

Hydraulic lifting system, the remote control and multi-control points at the different floors could be realized. Lift Up, Stop and Lower could be realized at each control point. The lift platform could stop at the accurate location point. Smooth working condition, high load capacity, safe and reliable. The overload protection devices are available. Power Supply is from local power sources.

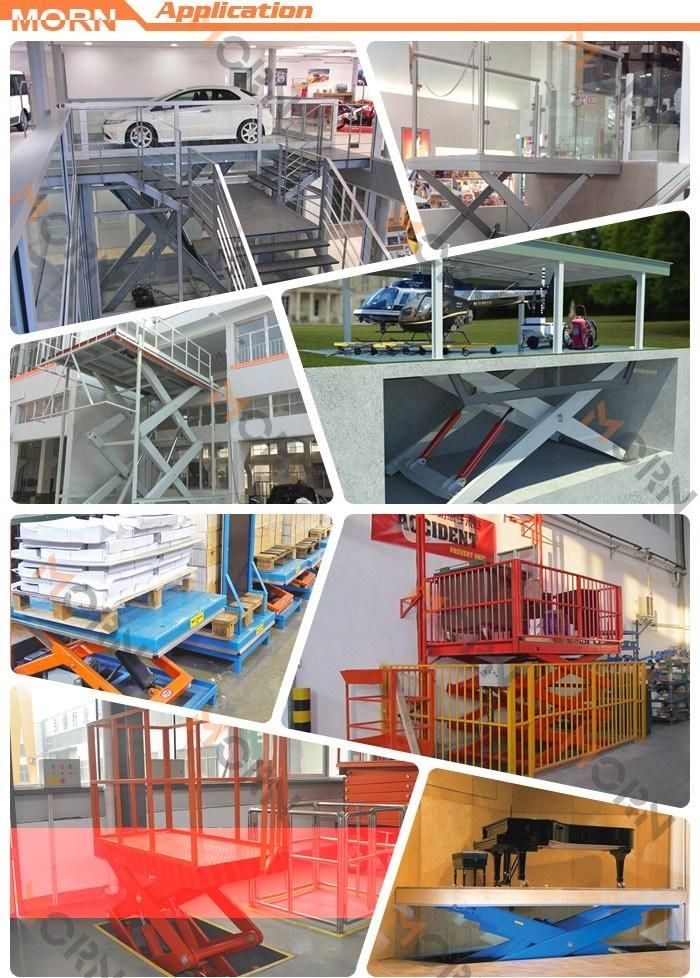

Application of scissor lift table
Stationary scissor lift table is widely used in factory, warehouse, insdury plant, institutions etc. It  can hep us move materials from ground to first floor or second floor or higher floor

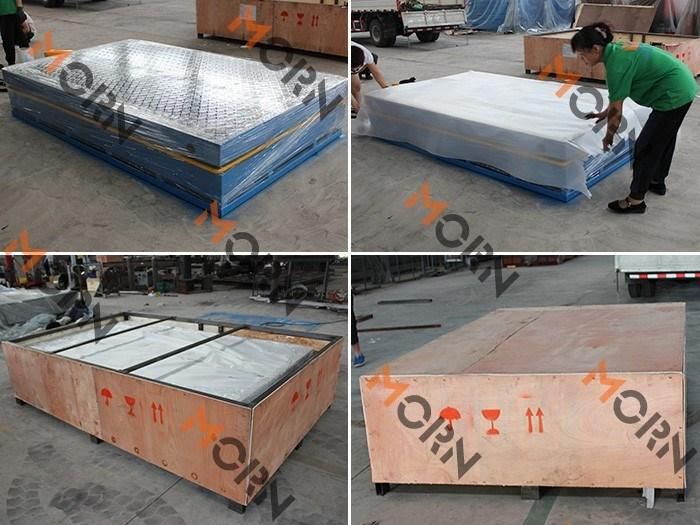

Packing and delivery
The normal package is wooden box for scissor lift. If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack cargo lift according to customers special request.



Contact us:
Sales manager: Iris Yue

Cell phone: 0086-18660129636
Address: NO. 15612 Century Avenue, High-Tech Zone, Jinan, China
