• Model NO.：HSZ-VD
• Condition：New
• Color：Blue Red Yellow
• Loading Port：Shanghai Tianjin Qingdao
• Warranty：1year
• Chain：G80
• Hook：Forged

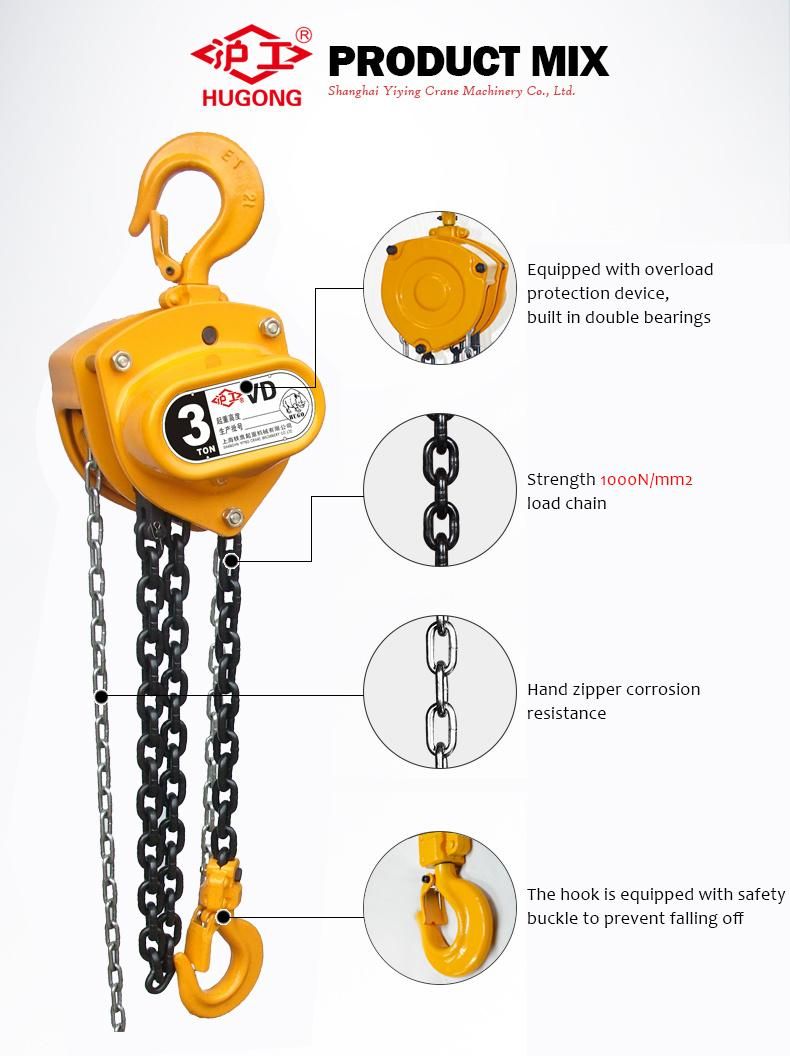

• Overload Protection Device：Yes
• Double Bearing：Yes
• Transport Package：Wooden Box or Carton
• Specification：ISO CE SGS
• Trademark：Hugo
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：20, 000PCS,Year

Basic Info.

Model NO. HSZ-VD Condition New Color Blue Red Yellow Loading Port Shanghai Tianjin Qingdao Warranty 1year Chain G80 Hook Forged Overload Protection Device Yes Double Bearing Yes Transport Package Wooden Box or Carton Specification ISO CE SGS Trademark Hugo Origin Shanghai, China HS Code 8425190000 Production Capacity 20, 000PCS/Year

Product Description

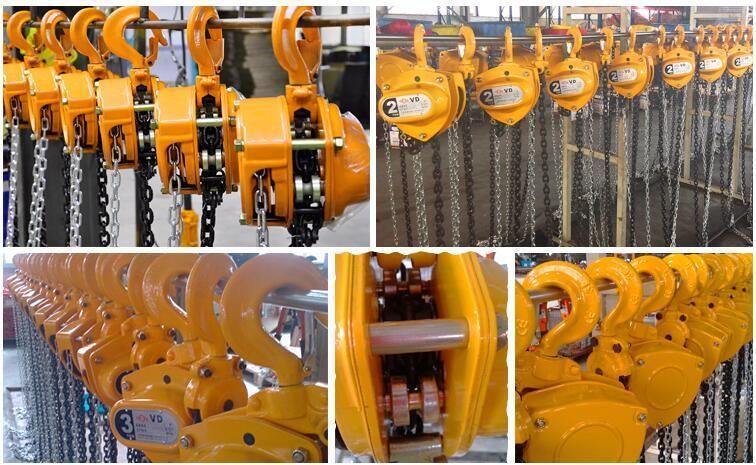

1. Hand chain hoist introduction

HSZ-VD chain hoist adapts Japanese technology, designed according to the need of market, driving more smoothly and avoiding chain block etc. It is more powerful and labor saving. Warmly welcomed by our clients home and abroad.


2. Feature

More labor saving
Light in Weight
Compact structure
Forged drop Hook
G80 chain
100% test before shipping
Long life

Model	HSZ-VD1/2	HSZ-VD1	HSZ-VD1 1/2	HSZ-VD2	HSZ-VD3	HSZ-VD5	HSZ-VD10	HSZ-VD20	HSZ-VD30	HSZ-VD50
Capacity T	0.5	1	1.5	2	3	5	10	20	30	50
Standard liftng Height  M	2.5	2.5	2.5	2.5	3	3	3	3	3	3
Test load T	0.75	1.5	2.25	3	4.5	7.5	12.5	25	27.5	62.5
Min distance betweeb Hook  mm	270	270	368	444	486	616	700	890	980	1300
Full Load Pull  N	225	309	343	314	343	383	392	392	450*2	450*2
Chain Full	1	1	1	2	2	2	4	8	12	22
Dia of Chain  mm	6	6	8	6	8	10	10	10	10	10
Gw  kg	12	13	20	17	28	45	83	193
Packing size (L*W*H cm)	28 × 21 × 17	30 × 24 × 18	34 × 29 × 20	33 × 25 × 19	38 × 30 × 20	45 × 35 × 24	62 × 50 × 28	70 × 46 × 75
Extra weight per meter of extra lift  kg	1.7	1.7	2.3	2.5	3.7	5.3	9.7	19.4	28.3	50
