Underground Mining Winch / Mining Scraper Winch Electric Winch

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Type：Electric Winch
  • Driven Type：AC
  • Speed：Slow
  • Carrying Capacity：Middle-Level
  • Tonnage：30T
  • Reel Number：2

Base Info

  • Model NO.：2JPB-22
  • Running Mode：Moving
  • Feature：Explosion-Proof
  • Certification：CE
  • Standard：National Standards
  • Item：2jp-15
  • Pulling Tension：14kn
  • Wire Rope Diameter：12.5mm
  • Main Drum Rope Capacity：80mm
  • Second Drum Rope Capacity：100m
  • Electric Power：15kw
  • Rotate Speed：1440m,S
  • Weight(Main Engine)：390kg
  • Place of Origin：China
  • Condition：New
  • Transport Package：Wooden Case or Carton Case
  • Specification：electric winch
  • Trademark：China Coal
  • Origin：Jining City, Shandong Province, China
  • HS Code：8425399000
  • Production Capacity：1000 Sets Per Month

Description

                                              Electric scraper winchItemUnit2JPB-7.52JPB-152JPB-222JPB-302JPB-55Pulling tensionKN814202850wire rope average speedm/s11.11.21.21.2Wire rope diametermm9.312.51415.518.5Drum Diameter(mm)205225280280350Width(mm)80125510160180Main drum rope capacitym45808090100Second drum rope capacitym45100100110130Electric powerKw7.515223055rotate speedm/s14401460147014701470
DimensionLengthmm12101525160016502070Widthmm5656607308201010Heightmm490620640700890Weight(main engine)KG39066090011552125

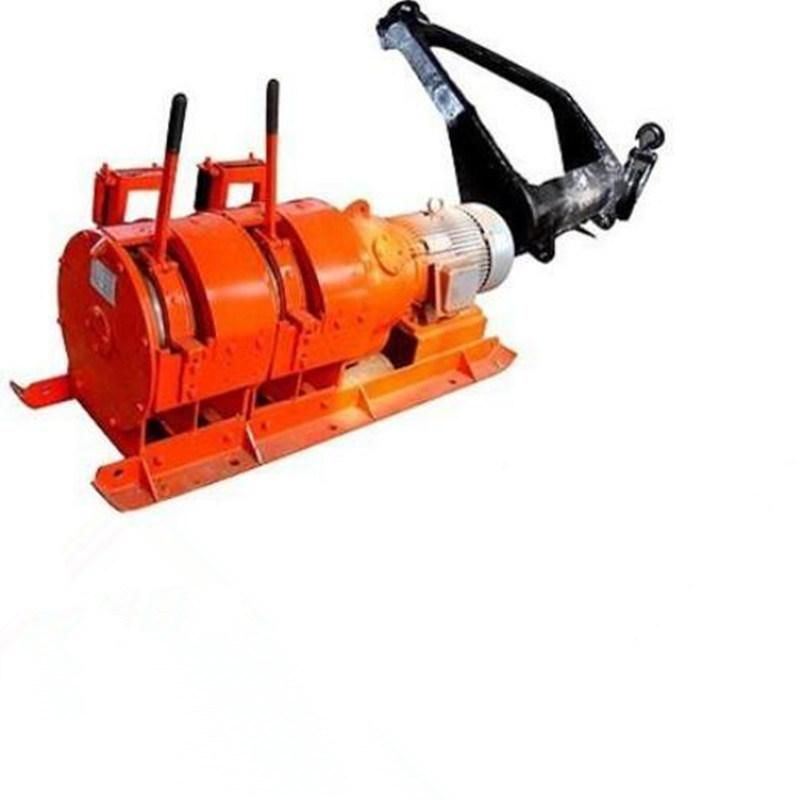

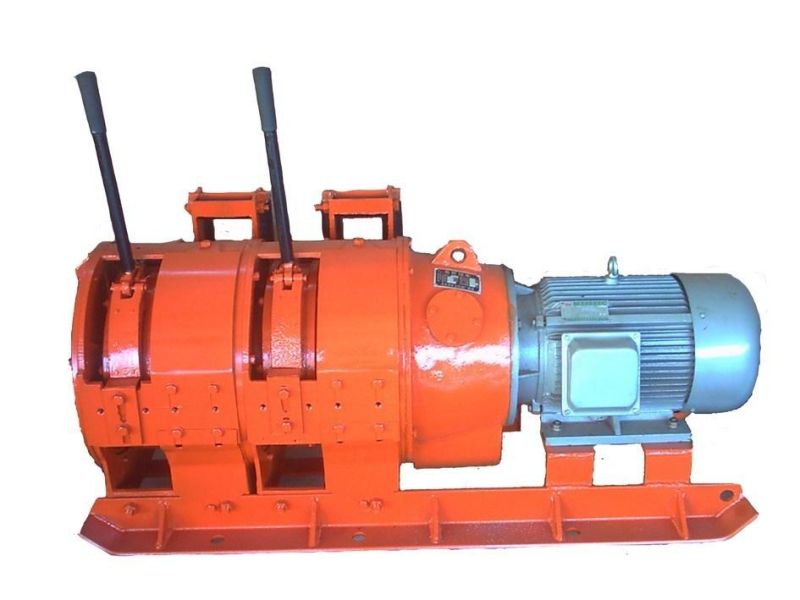

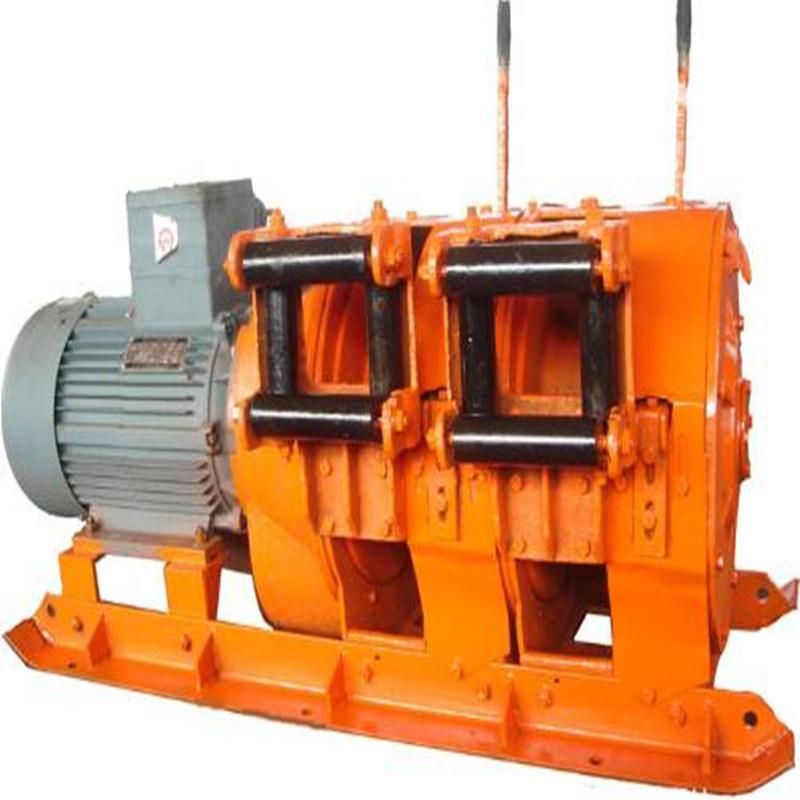

Photos Of 2Jp-55 Electric Double Drum Scraper Winch For Metal OreUnderground Mining Winch / Mining Scraper Winch Electric Winch
Underground Mining Winch / Mining Scraper Winch Electric Winch
Underground Mining Winch / Mining Scraper Winch Electric Winch

Underground Mining Winch / Mining Scraper Winch Electric Winch
