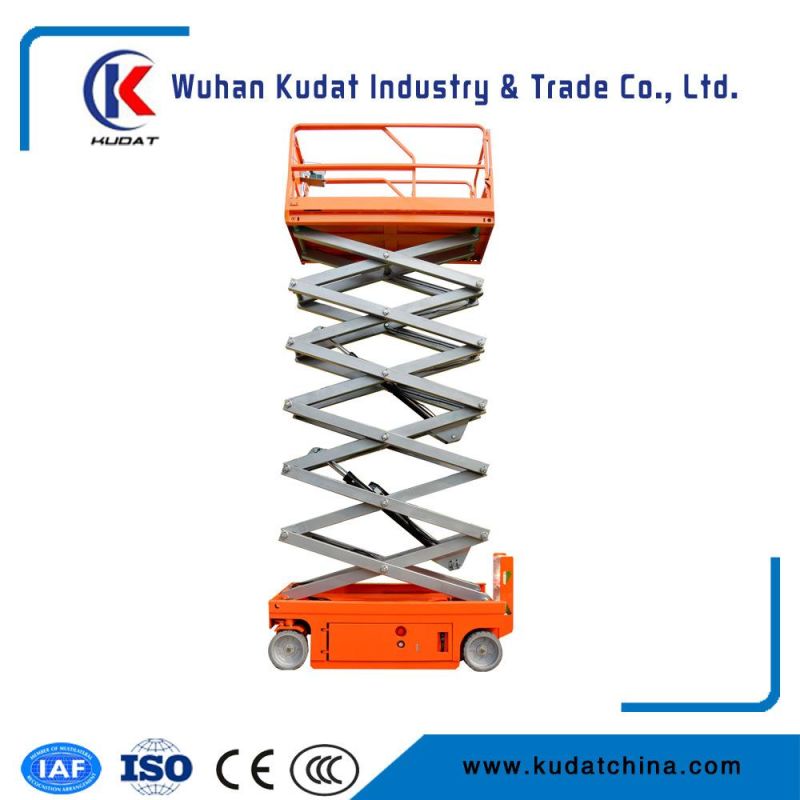

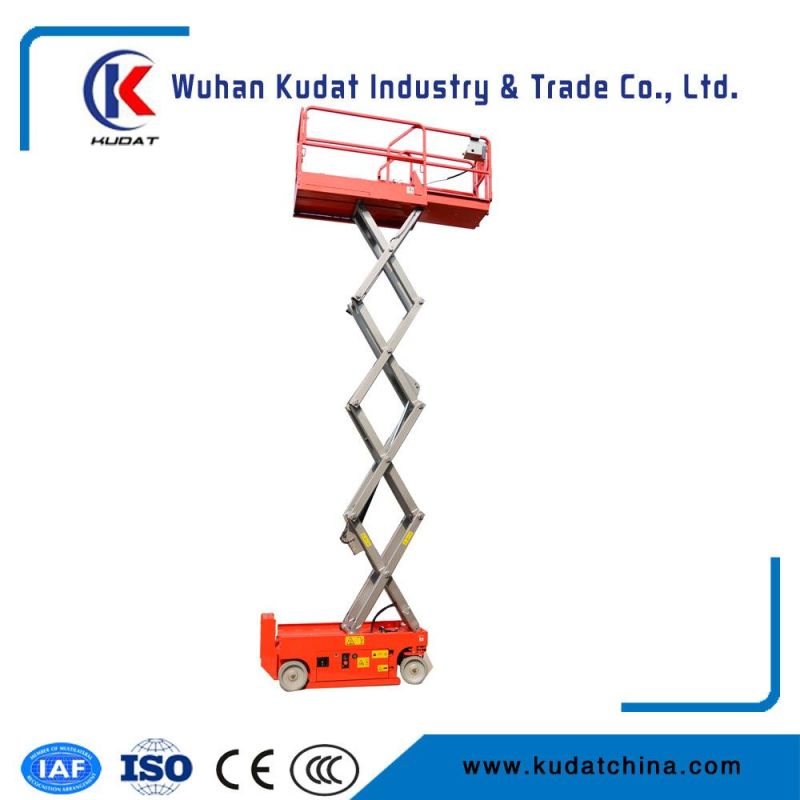

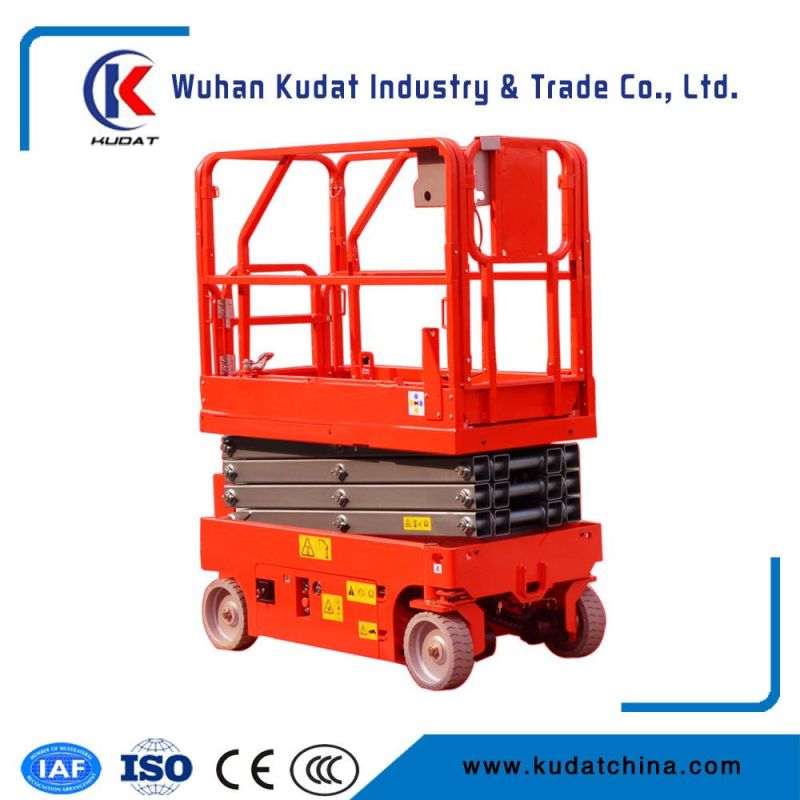

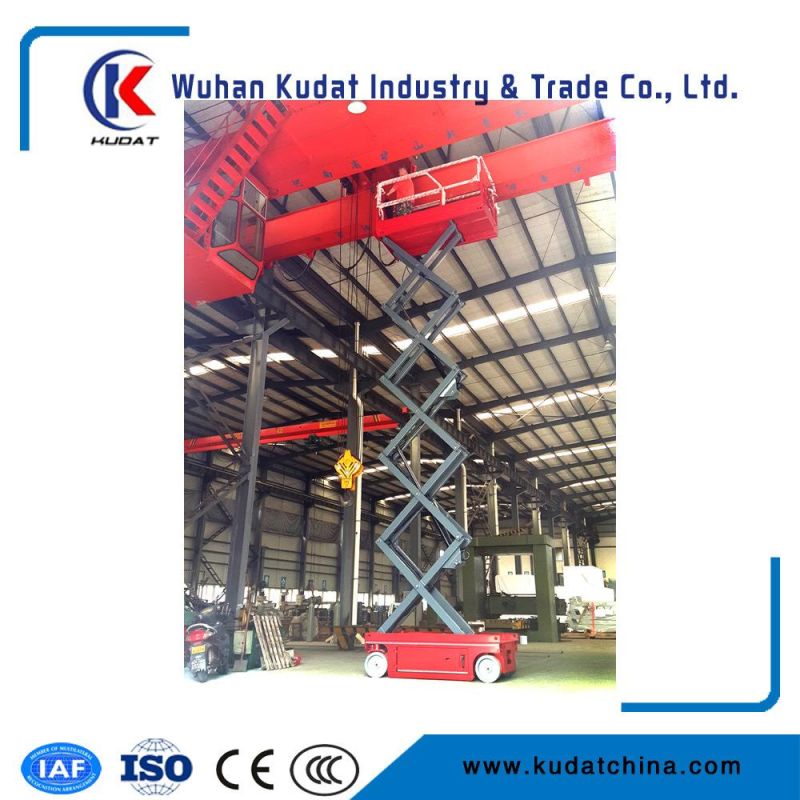

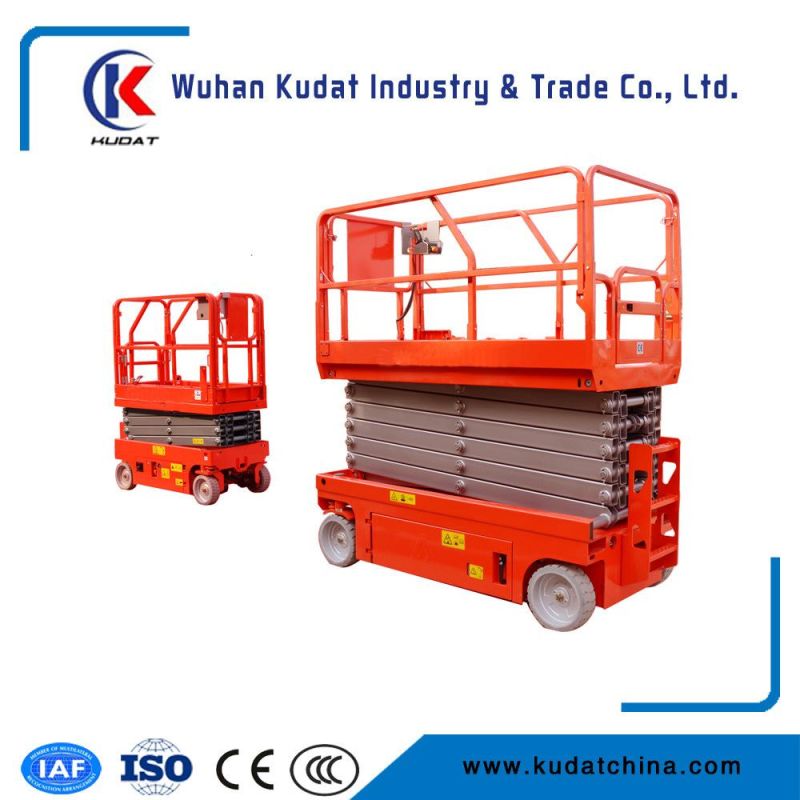

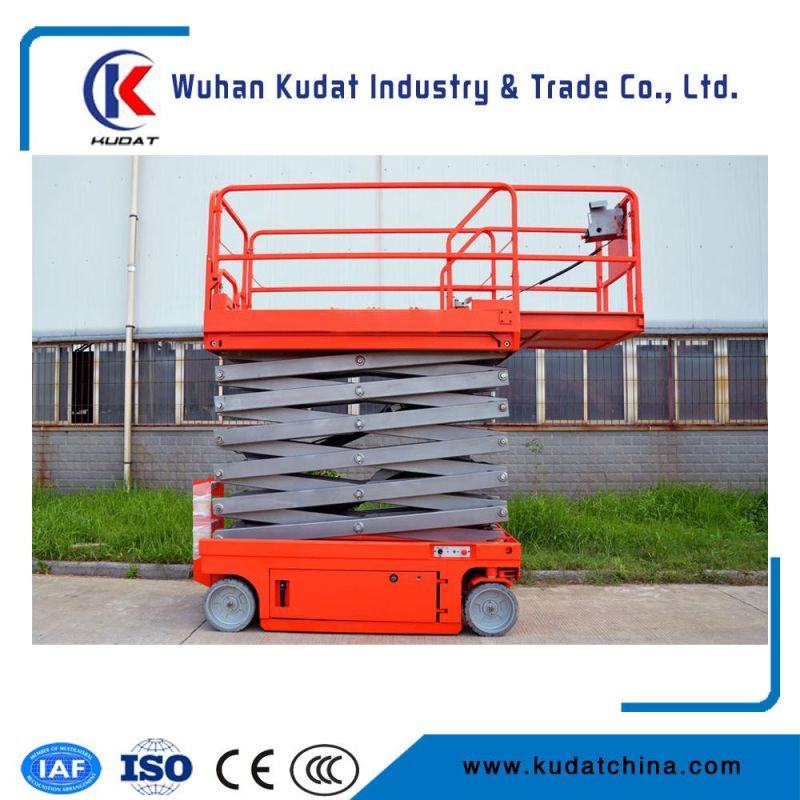

• Model NO.：S10
• Feature：Aerial Work Platform
• Certification：CE
• Installation：Tyre Crane
• Type of Work：Light Level
• Max.Working Height：12m
• Max.Platform Height：10m
• Loading Capacity：320kg
• Size of Platform：2.27×1.12 M
• Platform Extension Size：0.90×1.12 M
• Power：24V,3.3kw
• Battery：4×6V,225ah
• Max Climbing Ability：25%
• Transport Package：Bulk
• Specification：SGS
• Trademark：KUDAT
• Origin：China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. S10 Feature Aerial Work Platform Certification CE Installation Tyre Crane Type of Work Light Level Max.Working Height 12m Max.Platform Height 10m Loading Capacity 320kg Size of Platform 2.27×1.12 M Platform Extension Size 0.90×1.12 M Power 24V/3.3kw Battery 4×6V/225ah Max Climbing Ability 25% Transport Package Bulk Specification SGS Trademark KUDAT Origin China Production Capacity 500PCS/Month

Product Description

CONFIGURATION:
1, Battery :Trojan from USA
2, Drive motor: Changba or Changqian from China
3, Charger : Keneng from China
4, Control system: DTC from USA
5, Group valve: Hydraforce from USA
6, Motor & braking : White from USA
7, Oil Pump: Bravini from ITALY
8, Tyre :Exmiletyre from China
9, Filter: Donaldson from USA


Model	S10
Max.working height	12m
Max.platform height	10m
Loading Capacity	320KG
Size of platform	2.27×1.12 M
Platform extension size	0.90×1.12 M
Overall stowed height(lift)	2.44M
Overall stowed height(lower)	1.92M
Overall stowed length	2.435M
Overall stowed width	1.15M
Power	24V/3.3KW
Driving speed-Eleveted	3.5KM/H
Driving speed -Lowered	0.8KM/H



Lift/Lower time	45/36sec
Battery	4×6V/225AH
Max climbing ability	25%
Maxmum slope	3°
Wheel size	φ381mm×127mm
Extend platform  safe working load	113KG
Total weight	2620KG
