• Model NO.：S05
• Feature：Aerial Work Platform
• Certification：CE
• Installation：Tyre Crane
• Type of Work：Light Level
• Max.Working Height：7.8m
• Max.Platform Height：5.8m
• Loading Capacity：230kg
• Size of Platform：1.635×0.745 M
• Platform Extension Size：0.90×0.81 M
• Power：24V,3.3kw
• Battery：4×6V,225ah
• Max Climbing Ability：25%
• Transport Package：Bulk
• Specification：SGS
• Trademark：KUDAT
• Origin：China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. S05 Feature Aerial Work Platform Certification CE Installation Tyre Crane Type of Work Light Level Max.Working Height 7.8m Max.Platform Height 5.8m Loading Capacity 230kg Size of Platform 1.635×0.745 M Platform Extension Size 0.90×0.81 M Power 24V/3.3kw Battery 4×6V/225ah Max Climbing Ability 25% Transport Package Bulk Specification SGS Trademark KUDAT Origin China Production Capacity 500PCS/Month

Product Description

CONFIGURATION:
1, Battery :Trojan from USA
2, Drive motor: Changba or Changqian from China
3, Charger : Keneng from China
4, Control system: DTC from USA
5, Group valve: Hydraforce from USA
6, Motor & braking : White from USA
7, Oil Pump: Bravini from ITALY
8, Tyre :Exmiletyre from China
9, Filter: Donaldson from USA

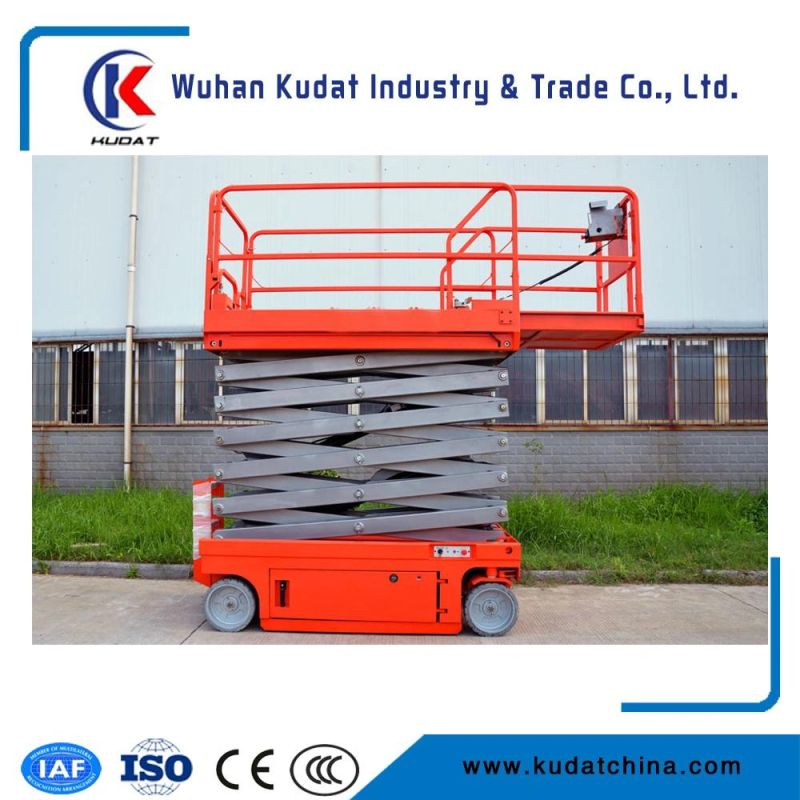

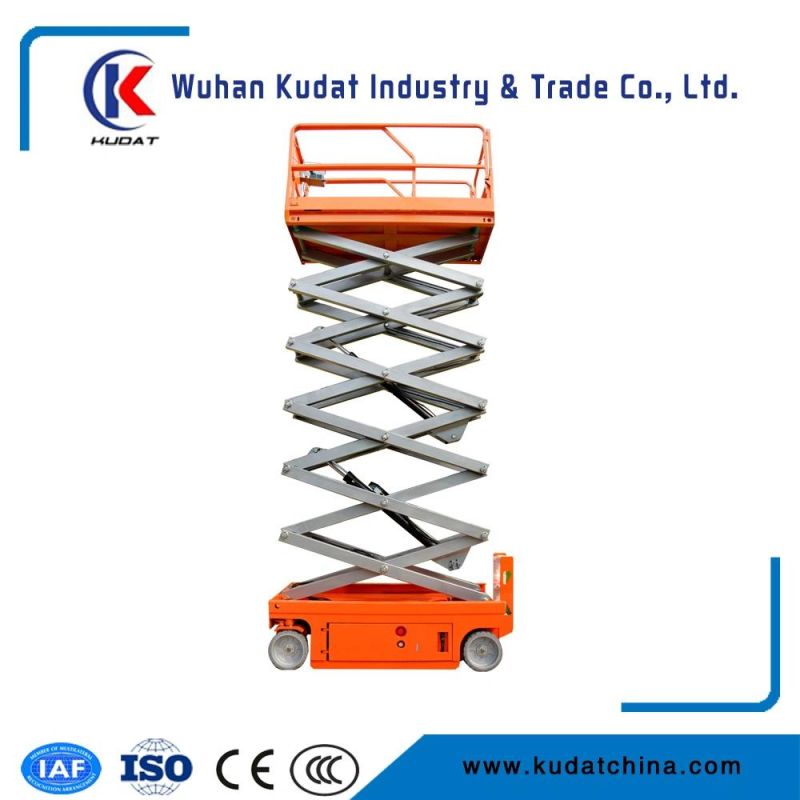

Model	S05
Max.working height	7.8m
Max.platform height	5.8m
Loading Capacity	230kg
Size of platform	1.635×0.745 M
Platform extension size	0.90×0.81 M
Overall stowed height(lift)	2.10m
Overall stowed height(lower)	1.79m
Overall stowed length	1.83M
Overall stowed width	0.81M
Power	24V/3.3KW
Driving speed-Eleveted	3.5KM/H
Driving speed -Lowered	0.8KM/H

Lift/Lower time	24/54sec
Battery	4×6V/225AH
Max climbing ability	25%
Maxmum slope	3°
Wheel size	φ305mm×100mm
Extend platform  safe working load	113KG
Total weight	1480KG
