• Model NO.：TBL-8
• Feature：Explosion-Proof
• Certification：CE
• Load Capacity：200kg
• Lifting Height：4m-14m
• Platform Size：900*700mm
• Dimension：4800*1600*1800mm
• Power：Electrical, Diesel, Battery
• Motor：2.2kw
• Rotation：360 Degree
• Lifting Speed：50-90mm,S
• Travel Speed：15-30km,H
• Max Working Radius：3000mm
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：500PCS,Year

Basic Info.

Model NO. TBL-8 Feature Explosion-Proof Certification CE Load Capacity 200kg Lifting Height 4m-14m Platform Size 900*700mm Dimension 4800*1600*1800mm Power Electrical, Diesel, Battery Motor 2.2kw Rotation 360 Degree Lifting Speed 50-90mm/S Travel Speed 15-30km/H Max Working Radius 3000mm Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 500PCS/Year

Product Description

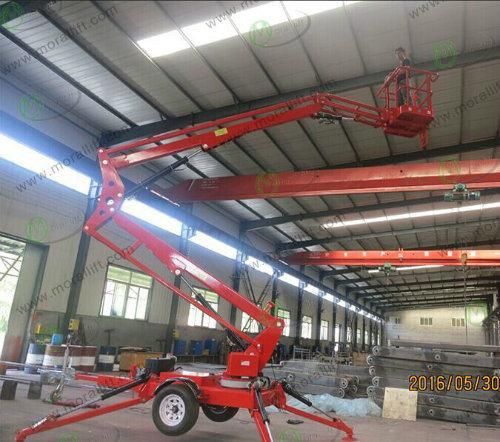

Towable Hydraulic Articulating Lift(TBL-8)


Specifications:
1.Power:electrical,diesel,battery.

 2.Loading capacity:200kg.

 3.hydraulic system ensure safety.

 4.Rotating:360 degree.

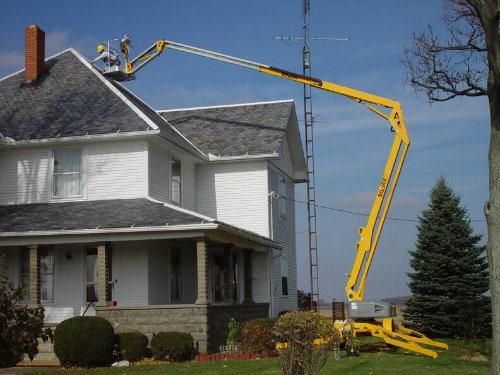

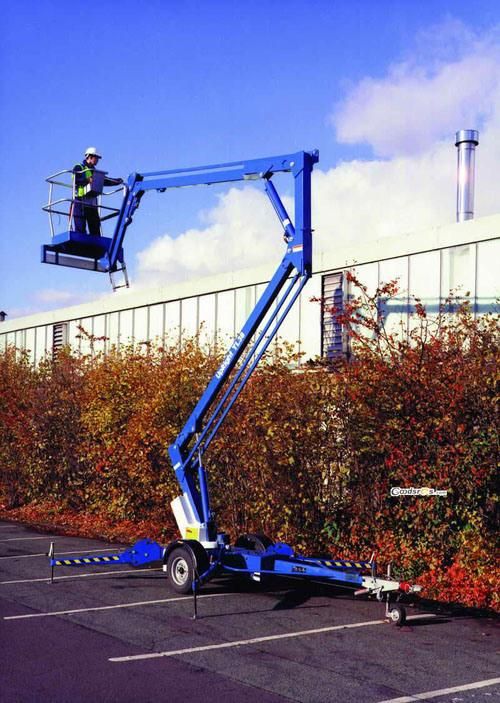

 Towable hydraulic articulating lift is for the use of indoor and outdoor high-altitude operations.
Which can be car-carring to everywhere, easy to use, large operations, in particular to cross
certain obstacles or in a take-off and landing can be more characteristic of high-altitude operations.
Widely used in roads, terminals, shopping malls, stadiums, residential property, factories and mines
 operating large-scale workshop.


 Features:

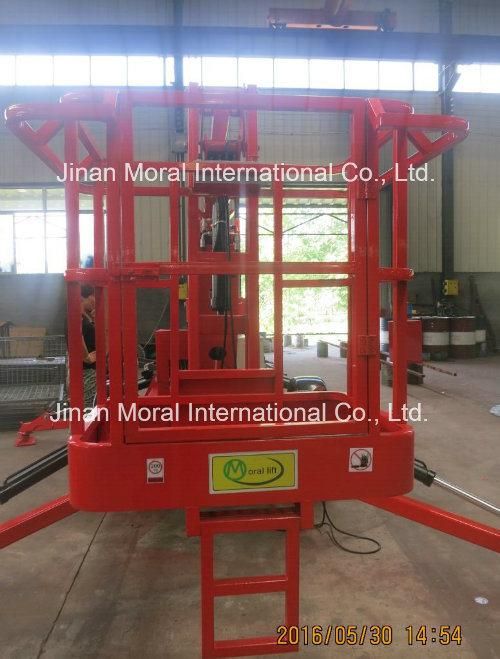

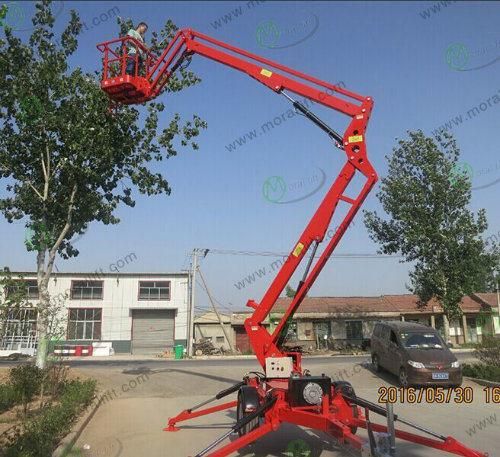

1.Platform :Its platform can lift up ,extend horizontally, or turn around 360 degrees to stride across certain obstacles for work . so it can realize multipoint work in wide scope.

2.Legs:With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions.
When the road is uneven, four full-automatic legs or single leg can support the machine.

3.Drive:It can be diesel or storage battery according to customer's requirements.

4.Material:Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,

5.Hydraulic cylinder::Original import or domestic joint venture hydraulic cylinder, with high quality,  improving the
reliability and prolonging  the work time,

6.Aloft work platform:Equipped with balanced valve, automatic pressure maintaining ,etc.

Application:

The articulating lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.

Parameters:


Safety device	hydraulic support legs would automatically open
	Working light alarm
	High pressure hydraulic oil pipe with double steel net
	Explosion proof value for cylinder
	Emergency stop button
	Emergency down valve when power failure
	Upper final limit safety switch
