• Model NO.：TBL-10
• Feature：Explosion-Proof, Insulating
• Certification：CE
• Load Capacity：200kg
• Lifting Height：4m-14m
• Rotation：360 Degree
• Lifting Speed：50-90mm,S
• Motor：2.2kw
• Dimension：5400*1600*1900mm
• Max. Horizontal Extent：4000mm
• Travel Speed：15-30km,H
• Windproof Level：<=5
• H Working Pressure：10 MPa
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. TBL-10 Feature Explosion-Proof, Insulating Certification CE Load Capacity 200kg Lifting Height 4m-14m Rotation 360 Degree Lifting Speed 50-90mm/S Motor 2.2kw Dimension 5400*1600*1900mm Max. Horizontal Extent 4000mm Travel Speed 15-30km/H Windproof Level <=5 H Working Pressure 10 MPa Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 5000PCS/Year

Product Description

Aerial Mobile Trailer Mounted Articulating Boom Lift (TBL-10)

Specifications:

1. Power: electrical,diesel,battery.
 2. Loading capacity: 200kg.
 3. Hydraulic system ensure safety.
 4. Rotating:360 degree.

Features:

1. Compact, narrow design is easy to maneuver in congested work areas
2. Big Horizontal working reach
3. Automatic leveling system and tilt alarm
4. Easily towed behind a pickup or SUV
5. Safe, easy to operate
6. 359˚non-continuous turntable rotation
7. Articulating boom
8. Multiple job site application, indoors and outdoors
9. High and low operation panel
10. Hydraulic outriggers and outrigger interlocks
11. Made of high strength steel, famous china brand
12. All pipelines put inside the machine, to aviod tangled sun and rain or other objects


Main descriptions:

pull-behind lift table for the use of indoor and outdoor high-altitude operations. Which can be car-carring to everywhere, easy to use, large operations, in particular to cross certain obstacles or in a take-off and landing can be more characteristic of high-altitude operations. Widely used in roads, terminals,
shopping malls, stadiums, residential property,factories and mines operating large-scale workshop.

Parameters:


Model:	TBL-10
Loading capacity	200kg
Travel height	8,000mm
Working height	10,000mm
Max working radius	4000mm
Rotation	360°
Platform size	900*700mm
Dimensions	5400*1600*1900mm
Lifting speed	50mm~90mm/s
Travel speed	15~30km/h
Working pressure	10 Mpa
Windproof level	≤ 5
Overload	Protection over current relay
Control voltage	24V/DC
Power Input	AC 2.2KW
Drive System	Hydraulic
Control Mode	Button/remote controls
Platform	Non-skid Diamond steel platform
Hydraulic cylinder	Φ80*2 and Φ70*5
Controls parts	Delixi


Safety device:

hydraulic support legs would automatically open
Working light alarm
High pressure hydraulic oil pipe with double steel net
Explosion proof value for cylinder
Emergency stop button
Emergency down valve when power failure
Upper final limit safety switch

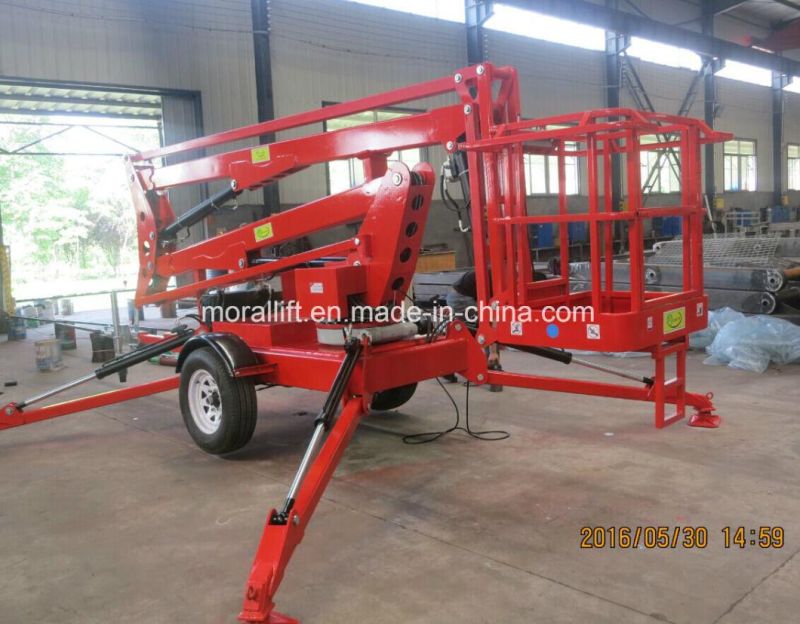

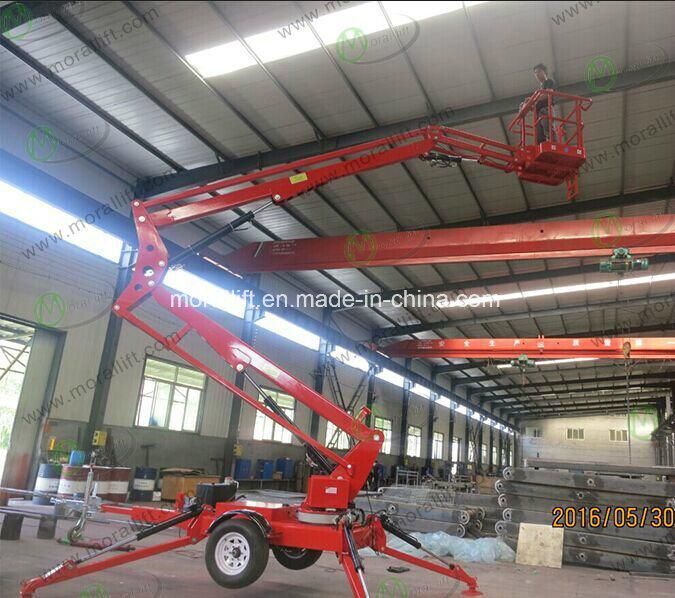

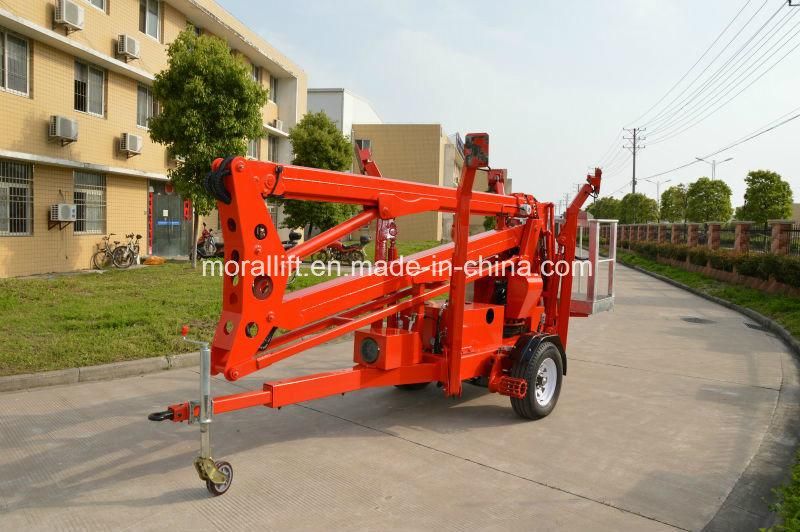

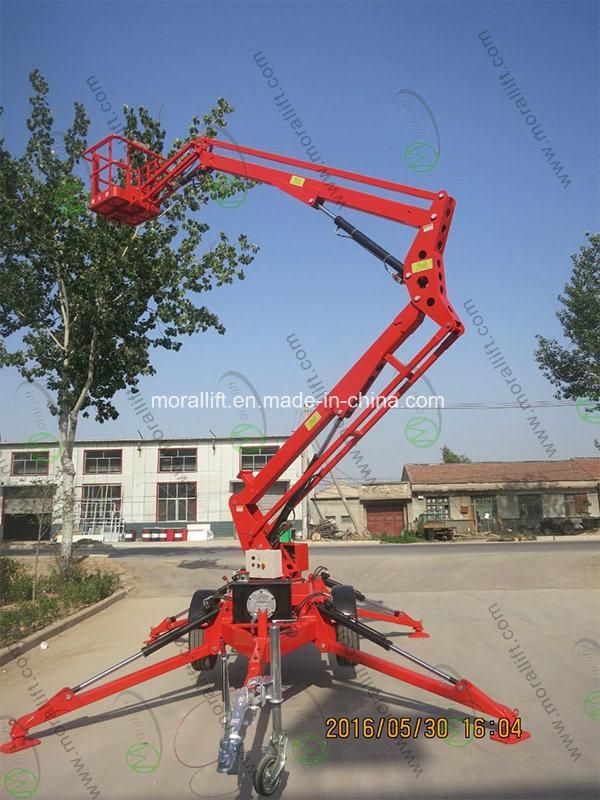

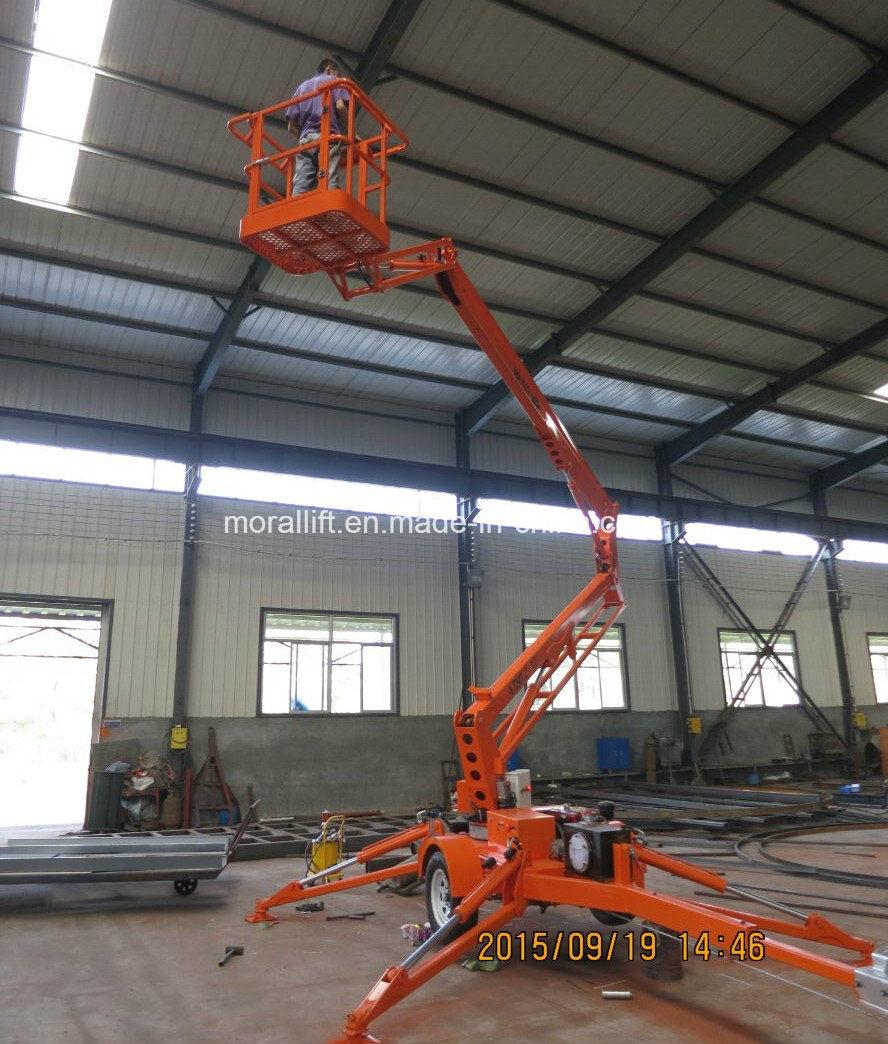

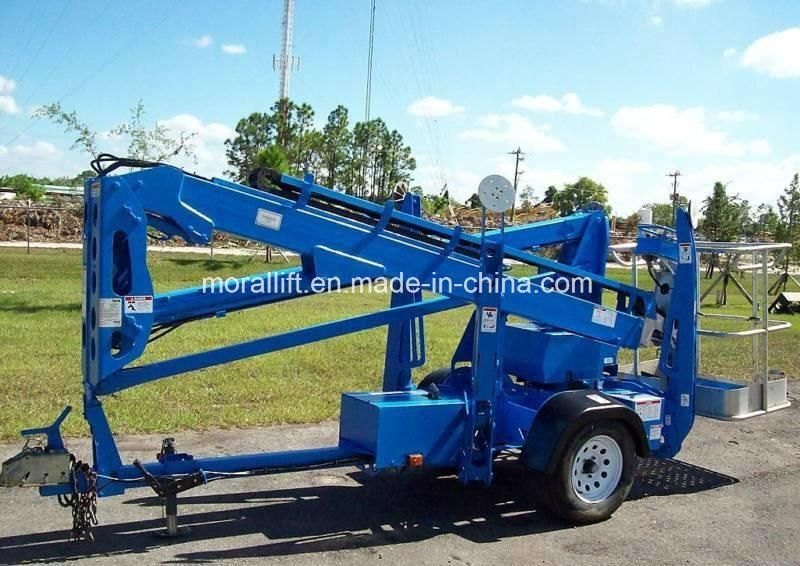

Pictures:
