Explosion-Proof Electric Underground Hoist for Shaft Lifting

Changsha Mining Equipment Co., Ltd.
  • After-sales Service：Video Training or Send Engineer to The Site
  • Warranty：12 Months
  • Type：Electric Winch
  • Driven Type：AC
  • Speed：2.5~5.1 M,S
  • Carrying Capacity：60 Kn

Base Info

  • Model NO.：jk2*1.8
  • Tonnage：26.1 T
  • Reel Number：1
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：ISO 9001
  • Standard：National Standards
  • Drum Diameter：2 M
  • Drum Width：1.8 M
  • One Layer Lifting Height：401 M
  • Two Layer Lifting Height：815 M
  • Three Layer Lifting Height：1235 M
  • Wire Rope Diameter：25 mm
  • Speed Ratio：20~31.5 I
  • Motor Power：185~355 Kw
  • Motor Speed：<= 1000 R,Min
  • Transport Package：Null
  • Specification：8.5*7.0*2.8
  • Trademark：CSME
  • Origin：Changsha, China(Mainland)
  • HS Code：8425110000
  • Production Capacity：50 Sets,Month

Description

900
1000
1120
140014.2×11.0×4.081000JK- 3.5×2.8
JK- 3.5×2.8P28006481318200014.5×11.0×4.085000Product Photo:
Explosion-Proof Electric Underground Hoist for Shaft LiftingExplosion-Proof Electric Underground Hoist for Shaft Lifting

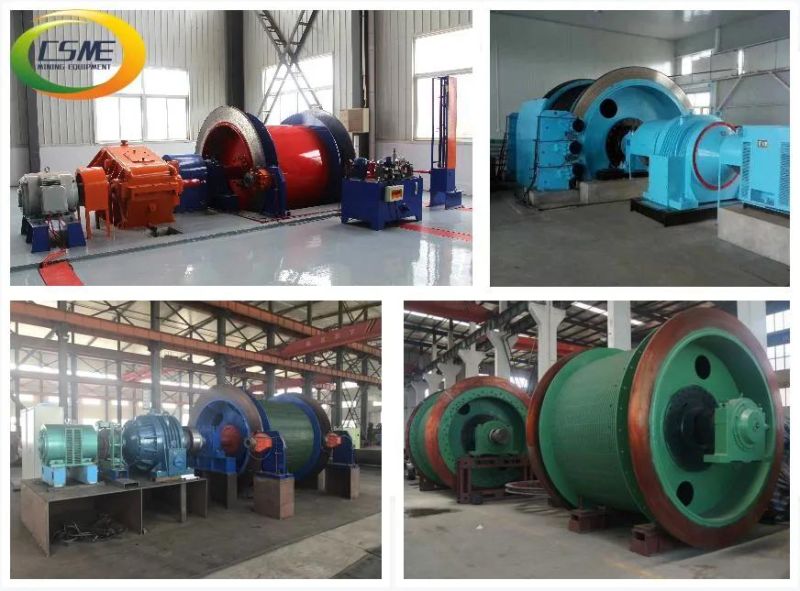

Product Details:Explosion-Proof Electric Underground Hoist for Shaft Lifting
Explosion-Proof Electric Underground Hoist for Shaft LiftingExplosion-Proof Electric Underground Hoist for Shaft LiftingExplosion-Proof Electric Underground Hoist for Shaft Lifting

Factory workshop:
Explosion-Proof Electric Underground Hoist for Shaft Lifting
Pakage:
Explosion-Proof Electric Underground Hoist for Shaft LiftingExplosion-Proof Electric Underground Hoist for Shaft Lifting
Our Service:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. Provide you with costomized services.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.
5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
