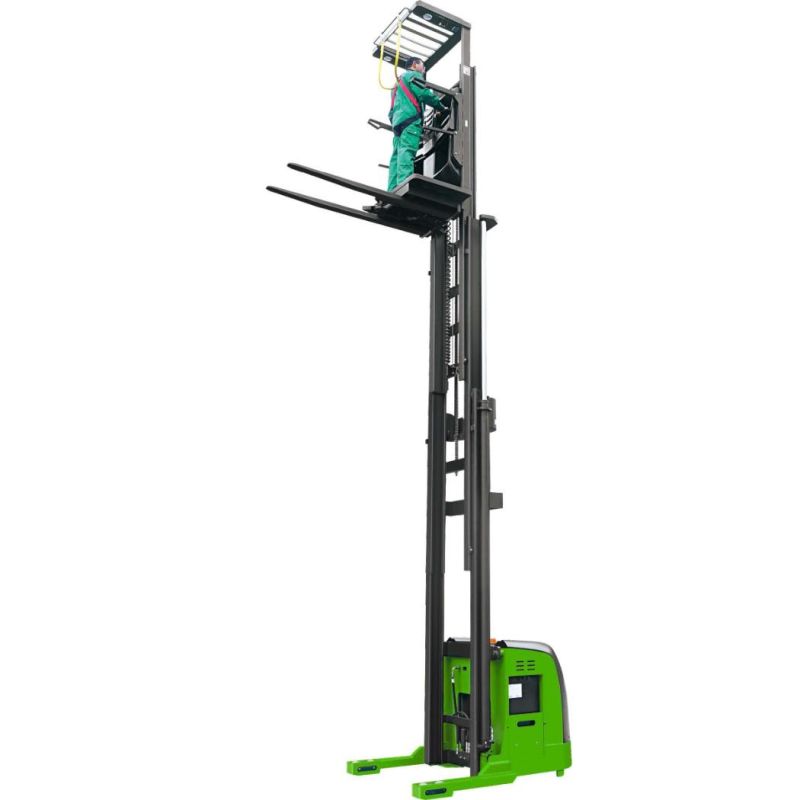

High Level 1.5 T/Ton Electric Warehouse Order Picker for High Racked
Qingdao Zongjin Engineering Machinery Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：13 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Rack&Pinion
- Carrying Capacity：Weight Level
- Moves：Moving
Base Info
- Model NO.：OPS15
- Driven Type：AC
- Running Mode：Moving
- Feature：Insulating
- Certification：CE
- Name：High Level Electric Order Picker
- Operation Type：Stand Driving
- Height,Lowered：2410 mm
- Overall Length：3200mm
- Max.Lift Height,Platform：5000,7000,9000 mm
- Height ,Mast Extended：7230,9230,11230 mm
- Turning Radius：1800 mm
- Height of Platform：230 mm
- Coupling Height：1975 mm
- Fork Length：45,100,1220 mm
- Tyre Size,Front：Dia 310X125 mm
- Tyre Size,Rear：Dia Dia 128X73 mm
- Travel Speed,Laden/Unladen：7.7,8 Km,H
- Battery Voltage,Nominal Capacity K5：24,770(1100) V,Ah
- Service Weight(with Battery)：3870 Kg
- Transport Package：One Set Pack in One Pallet
- Specification：3200mm*1100mm*2410 mm
- Trademark：MOVMES
- Origin：China, Ningbo
- HS Code：8427109000
- Production Capacity：50 Sets,Month
Description

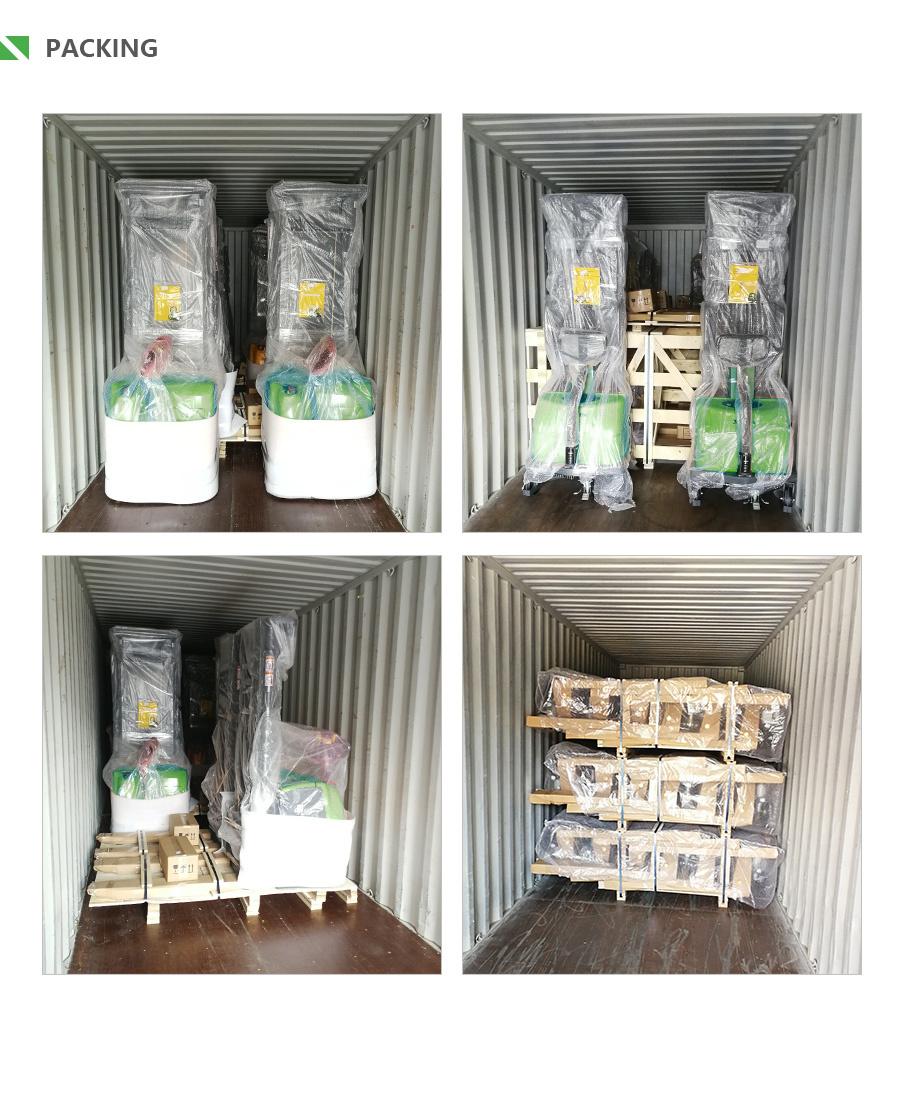

Packing and Delivery
MOVMES according to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.
Usually MOVMES producing time is 30-45 days after we receive the advanced 30% payment.

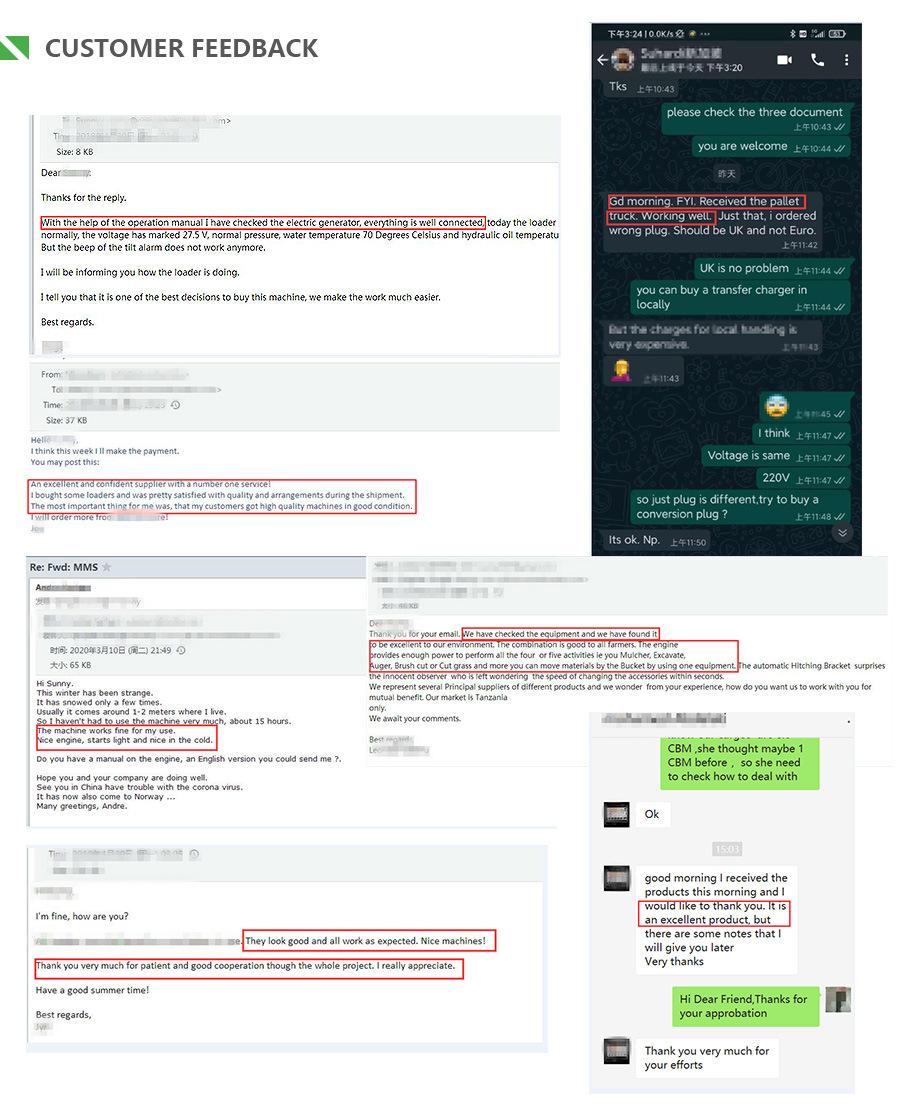

High praise from customer
CE CertificationISO9002:1995
ISO9001:2008(Quality management system)
ISO14001:2004(Environmental management system)
OHSAS18001:2007(Occupational Health and Safety management system)
We got TUV/GS/CE certificate for hand pallet truck early in 1991,who was the first manufacture in China.For material handling equipment of Manual Lift Trucks and Electric Lifting Trucks,up to 90% products have approved CE certificate from TUV,our products have approved CE standards of ISO3691-1 EN1175-1 EN16307-1

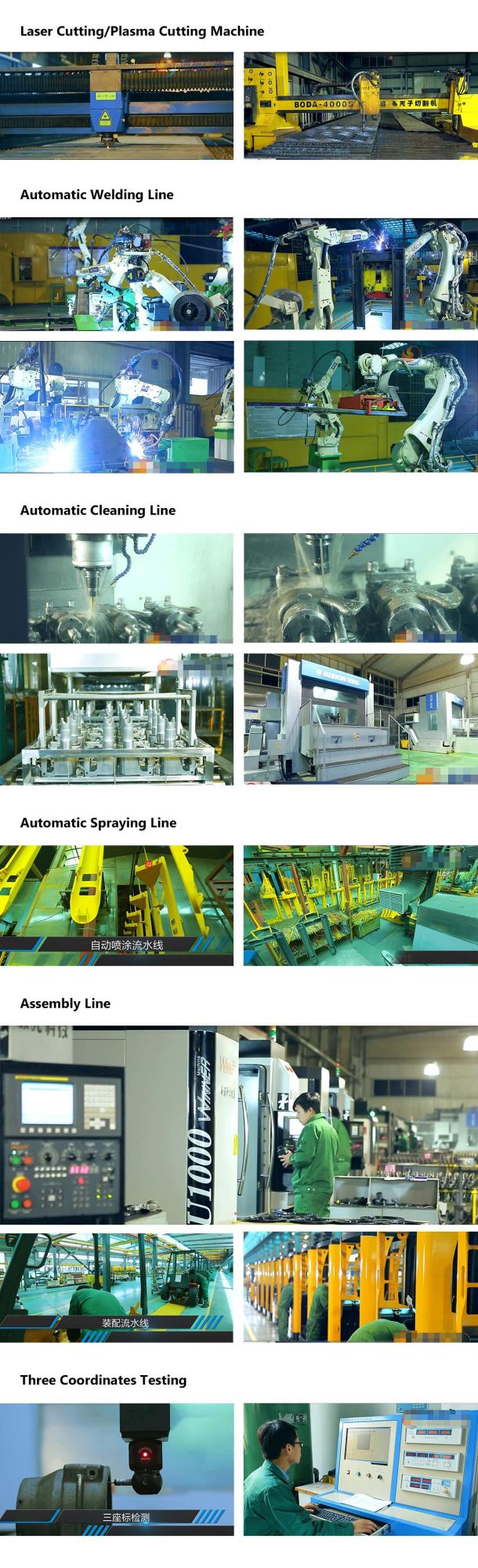

Factory strength
36 year's experience8 international approvals150,000m2 factory area1,200 employees188 professional mechanical technicians77 senior engineers500 types warehouse equipment157 countries and regions exported to
FAQQ1: How about the continuous working time for the electric truck series ? And How long time to charge the battery full ?
A1: MOVMES battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 3--6 hours to charge the battery.
Q2: What's the specification of the chargers of CDDK15-III?
A2: Our chargers 24V200Ah Lead-acid battery. Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q3: Can MOVMES provide customized products? OEM or ODM products?
A3: Yes, Since 1985,Our factory is always professionally in developing and producing warehouse logistic equipment ,such as hand/electric pallet trucks,manual /electric slackers, reach trucks, forklifts and so on.We do OEM for Toyota/ Jungheinrich/ Clark / Hyster / etc.
Q4: How long is the Warranty for MOVMES product?
A4: MOVMES provides one year warranty.During the warranty period we provide wearing parts for free which are damaged by non-human.
Under the current international environment, the electric industry will definitely develop vigorously. As a the new brand in the warehousing and logistics industry, MOVMES has the strength factory and high-end products as the main support power. Now we are looking for agents all over the world to expand our brand In the market, please give us a chance to cooperate, you will get the same quality products as the world's famous brands.
