• Model NO.：SOV-CLP
• Condition：New

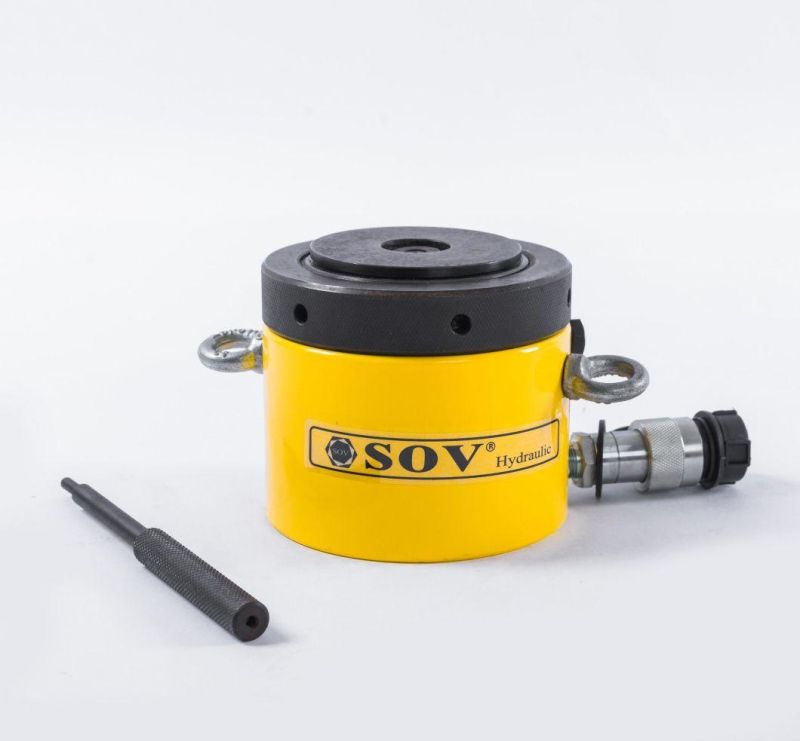

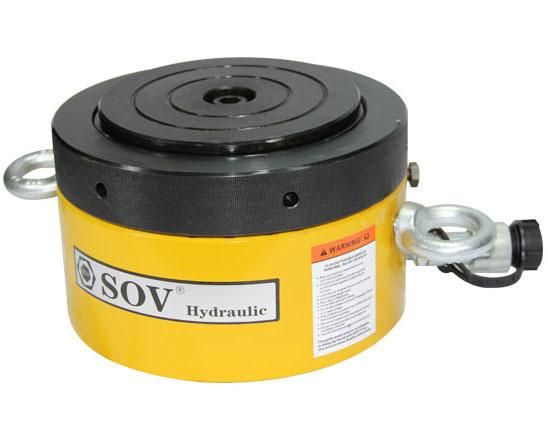

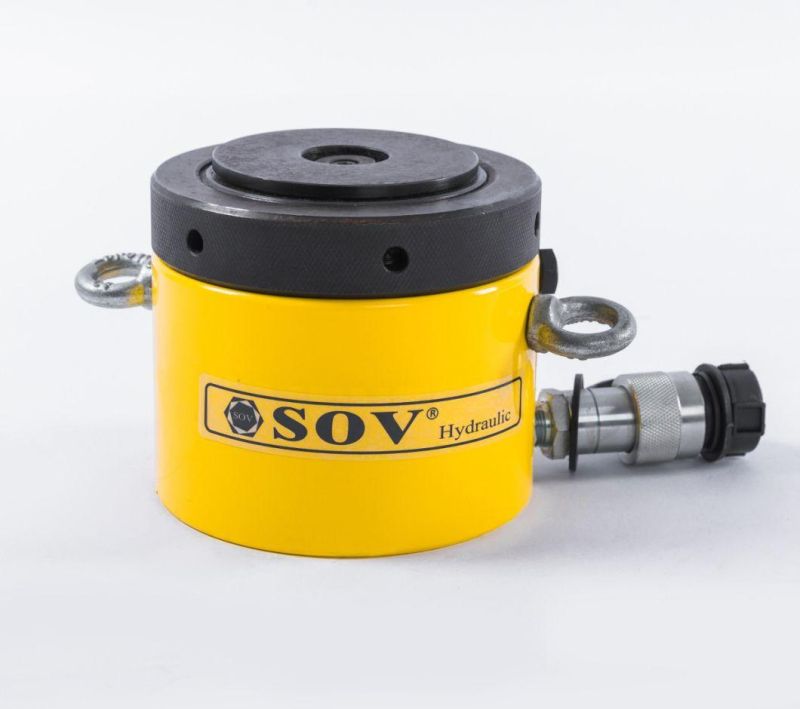

• Name：Sov Single-Acting Pancake Lock Nut Cylinder Price
• Color：Yellow, Black or Customerized
• Customerized：Yes
• OEM：Yes
• Stroke：45-50mm
• Weight：15-189kg
• Wrrany：1 Year
• Export Market：Global
• Material：Steel
• Package：Standard Export Wooden Box
• Transport Package：Standard Export Wooden Box
• Trademark：SOV
• Origin：Shanghai
• Production Capacity：1000per Month

Model
Number

Cylinder

Capacity

Stroke

Cylinder
Effective Area

Oil
Capacity

Collapsed
Height(A)

Extended
Height(B)

Outside
Diameter(D)

Weight



ton (kN)

mm

cm²

cm³

mm

mm

mm

kg

SOV-CLP-602

60 (606)

50

86,6

432

125

175

140

15

SOV-CLP-1002

100 (1027)

50

146,8

734

137

187

175

26

SOV-CLP-1602

160 (1619)

45

231,3

1040

148

193

220

44

SOV-CLP-2002

200 (1999)

45

285,6

1285

155

200

245

57

SOV-CLP-2502

260 (2567)

45

366,8

1650

159

204

275

74

SOV-CLP-4002

400 (3916)

45

559,5

2517

178

223

350

134

SOV-CLP-5002

520 (5114)

45

730,6

3287

192

237

400

189

Packaging & Shipping

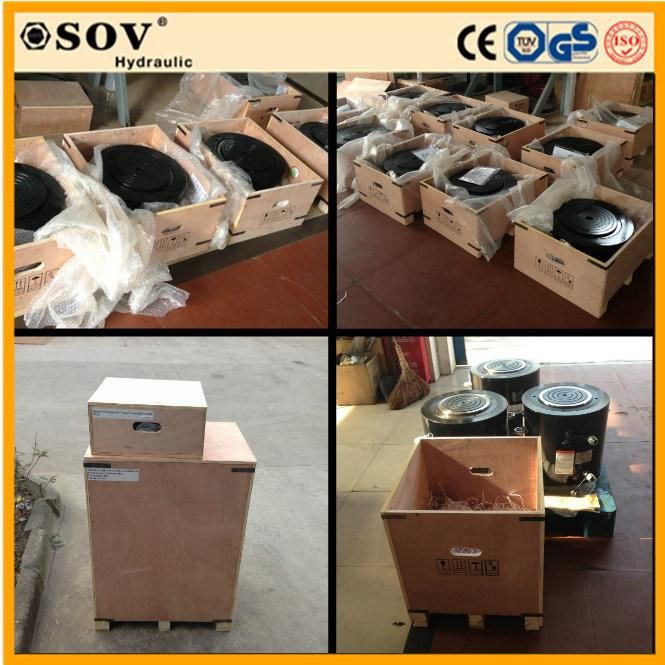

Packing for SOV Pancake lock nut cylinders
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Al-Ti alloy carrying case;
3. Customized packaging acceptable.

Shipping for SOV Pancake lock nut cylinders
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.


Our Services
1. 24 hours online service
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information
SOV Hydraulic Technology (Shanghai) Co., Ltd is the foremost hydraulic tools manufacturer and has the largest hydraulic tools factory in China. Since 1995, we've successfully transferred from OEM factory for ENERPAC & TITAN to create our own brand SOV with products and factory certified by CE and ISO 9001. SOV hydraulic tools have been exported to more than 40 countries in the global world market won by reliable quality, excellent after-sales service, competitive price and professional marketing service.


Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.


Main Products
We are a manufacturer in tools, such as:

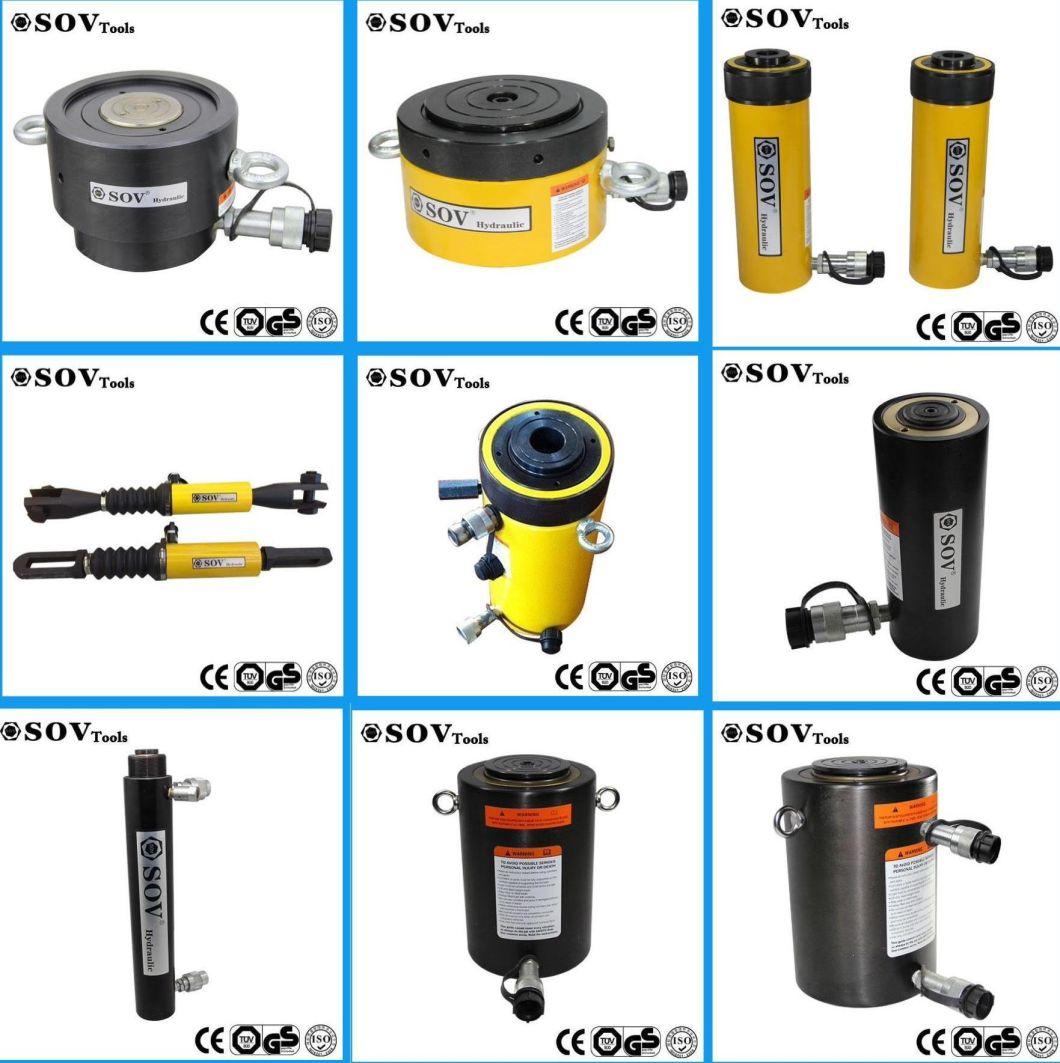

•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.


FAQ
Q1:What's the brand name of your products ?
A :Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.

Q2:Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage :Overload,polishing is not well controlled,bad seal kits.As is known to all,vehicles in China are often overload,our products all designed to  bear the overload power.We have numerical control machine  to assure the polish processing .And we use the imported seals to meet customers' demands.

Q3:Is your design reasonable? What about your product safe coefficient?
A:We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities . Rest assured.

Q4:What about the quality feedback of your products?
A: Guarantee the qualityfrom the raw material. WE ARE GERMANY OWNED FACTORY, and we have cold drawing production line and nickel-chrome electroplating production line , so we can produce cold-drawing pipe and hard-chrome pipe used for hydraulic cylinder. WE HAVE NEVER RECEIVED EVEN ONCE QUALITY COMPLAINT FOR MANY YEARS OF INTERNATIONAL TRADE.

Q5:Is the sample free?
A:Yes.In our acceptable range, we can offer a sample by charging freight. And we will return the fee after you place bulk order.

Q6:How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time.Generally ,it's 7-20 days.

Q7:What 's the after-service?
A:If the quality can't meet your requirement ,we will pay all your lost and offer technical support to solve your problem.

Q8:How can I contact with you ?
A:Mobile phone: +86 189 1815 8229(Any time call available)
