• Model NO.：VL-0.75T
• Type：Chain Hoist
• Sling Type：Chain
• Lift Speed：<2m,min
• Maximum Lifting Height：1.5m
• Chain Falls：1
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Yellow or Black
• OEM：Yes
• Transport Package：Carton. Wooden Case
• Specification：0.75Ton
• Trademark：DELE
• Origin：China
• HS Code：84251900
• Production Capacity：100000 PCS,Month
• Package size per unit product：21.00cm * 12.00cm * 11.00cm
• Gross weight per unit product：7.500kg

Basic Info.

Model NO. VL-0.75T Type Chain Hoist Sling Type Chain Lift Speed <2m/min Maximum Lifting Height 1.5m Chain Falls 1 Certification CE, ISO9001:2000 Condition New Color Yellow or Black OEM Yes Transport Package Carton. Wooden Case Specification 0.75Ton Trademark DELE Origin China HS Code 84251900 Production Capacity 100000 PCS/Month

Packaging & Delivery

Package size per unit product 21.00cm * 12.00cm * 11.00cm Gross weight per unit product 7.500kg

Product Description

Manual Lever Hoist ,Model VL type
The VL series lever hoist can be widely used for equipment installation, lifting and tightening goods , dragging loads in
factories,mines,construction sites,power plants,boat manufacturing etc. it is an ideal device especially in narrow space,open air and over-head places for pulling and stretching at angle.
FEATURES
Make by Standard:EN 13157

1.Compact , light yet durable
2.Double-pawl brake system desigend for safety and reliabilty.
3.Heat treated steel plates , gears and shafte for enhanced strength;
 Forgeg upper , lower hooks with forged steel safety latches;
 High Tensile Alloy Steel Chain
4.Free-wheeling mechanism for quick chain adjust ments.
5.Weston style automatic load brake with doble pawl load reduction.
6.360°rotating handle of east of use in confined space.
7.Ideling mechanism to allow fast adjustment of load chain.
8.Safety factor:4 to 1.
9.Fatigue tested at 1.5 times of working load limit to 2000 cycles.

MODEL	VL-0.75	VL-1	VL-1.5	VL-3.0	VL-6.0	VL-9.0
CAPACITY (t)	0.75	1	1.5	3	6	9
standard lift (m)	1.5	1.5	1.5	1.5	1.5	1.5
running test load (t)	9.2	12.3	18.4	36.8	73.5	110.3
effort required to lift max load (n)	148	197	216	336	345	357
No.of coluns of load chain	1	1	1	1	2	3
load chain dia. (mm)	6.3	6.3	7.1	9	9	9
net weight (kg)	6.6	6.6	11.65	21.1	23.7	54

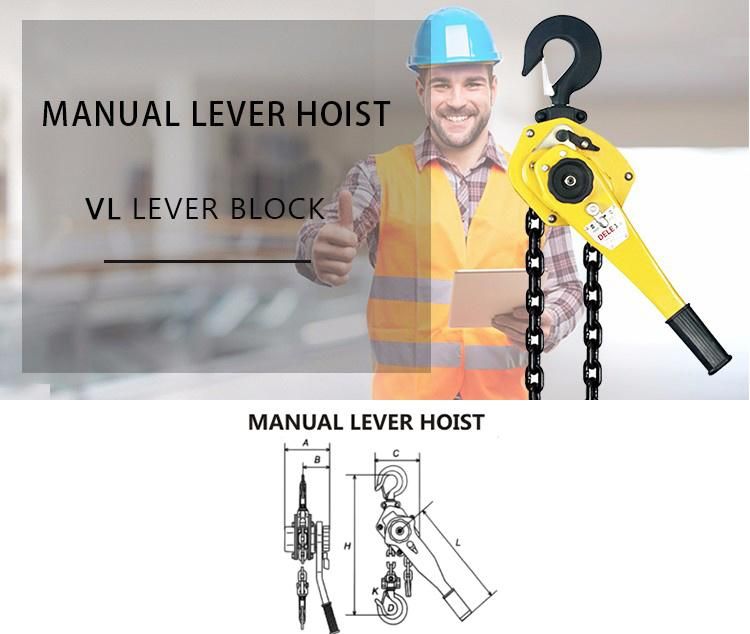

DIMENSIONS (mm)  A	155	155	170	198	198	198
B	128	128	147	182	230	350
C	310	310	350	470	590	740
D	240	240	365	365	365	365
E	28	32	36	47	49	65

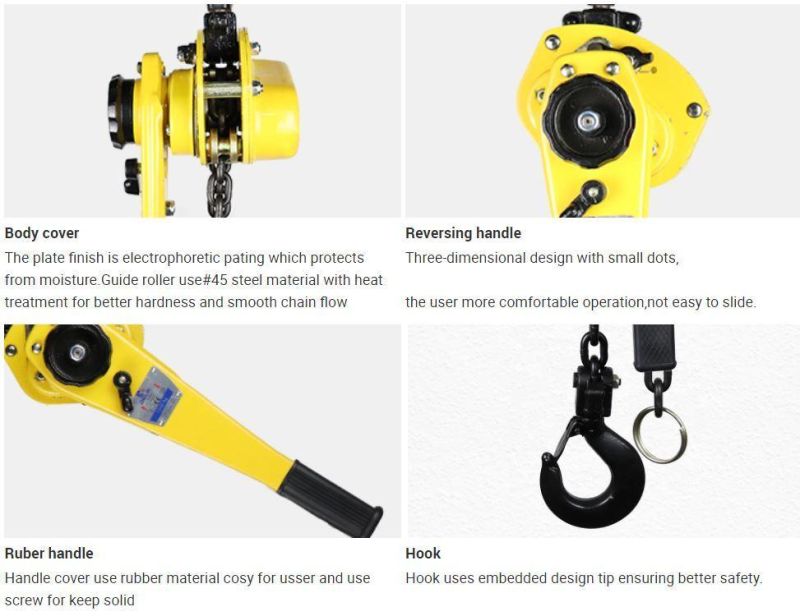

Details Images

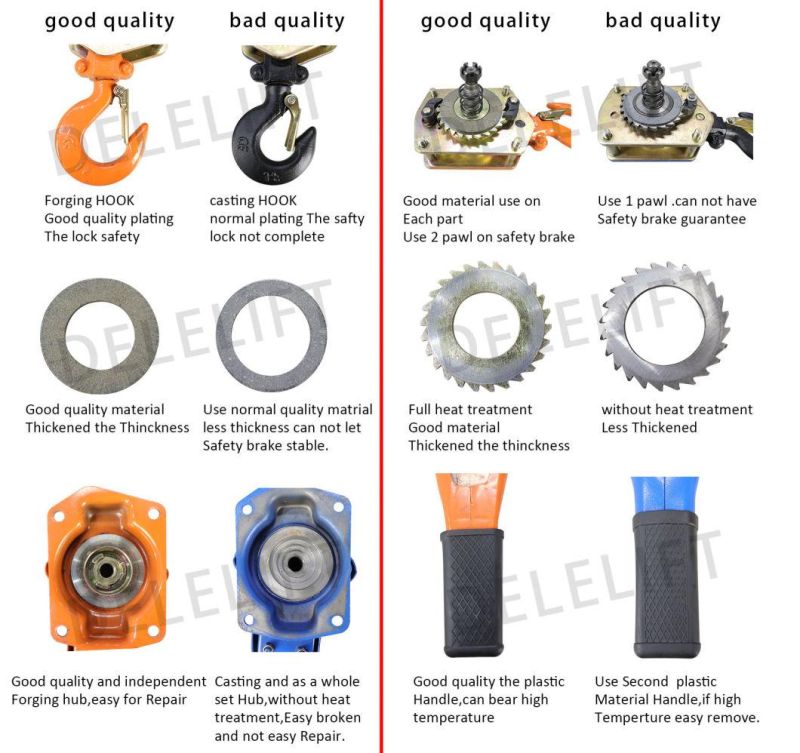

The Quality comparison of spare parts

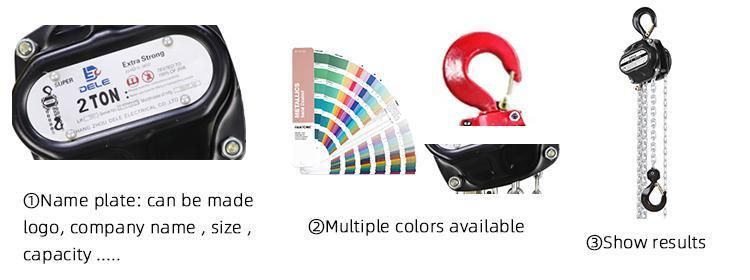

Customized Service

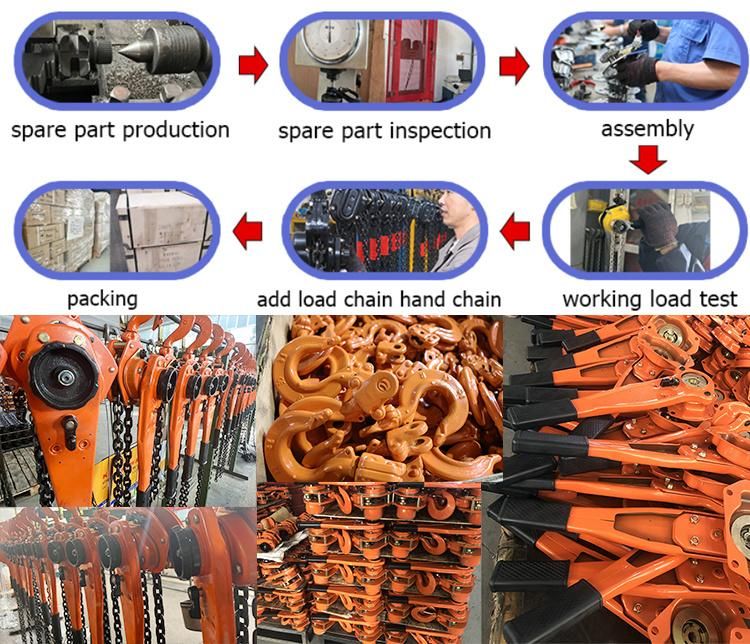

Production process

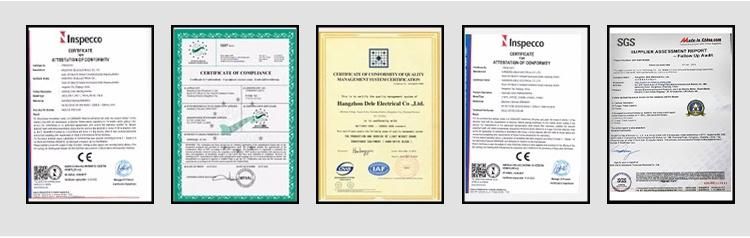

Certifications

Payment

Our Service


FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?

Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.

Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.

Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.

Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.

Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.

Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
