• Model NO.：SJG3-3.6
• Feature：Explosion-Proof
• Certification：GS, CE, ISO 9001
• Safety Handrail：4 Sides
• Lift System：Hydraulic System
• Safe Device：Explosion-Proof Lock Valve
• Control Mode：Control Panel and Control Box
• Transport Package：Iron Case or Plywood Case Package
• Trademark：SDLIFT
• Origin：Shandong China
• HS Code：84289090
• Production Capacity：5000 Set Per Year

Handrail2 Sides, 4 Sides or As Your RequestInstallationUndergroundSafety DeviceExplosion Proof Lock Valve, EmergencyStationary Hydraulic Scissor LiftScissor LiftMotorCustomer Required brand or Chinese Famous BrandColorRed, Yellow or As Your RequestsPackageIron Case or Plywood Case Package

 Please kindly let us know and provide you detailed info if this model OK.

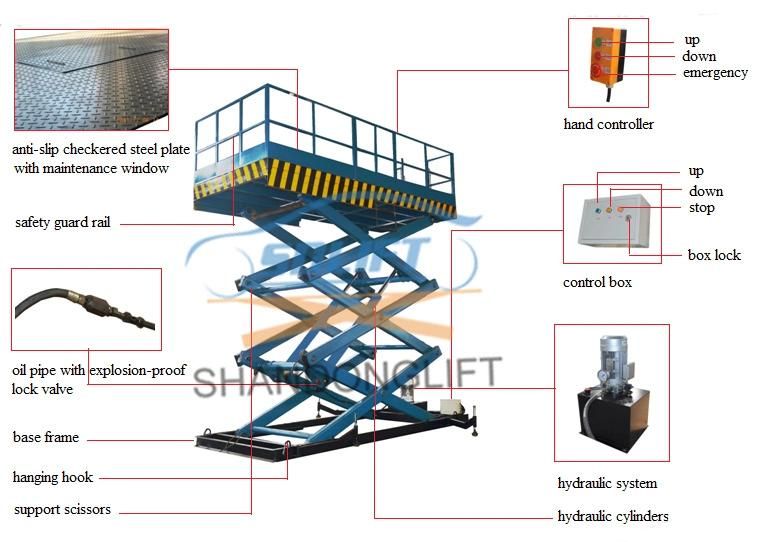

Safety Precaution:

1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.

2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.

3. Emergency decline valve: it can go down when you meet an emergency or the power off.

4. Anti-dropping device: Prevent falling of platform

 Hydraulic scissor lift advantages:

---Installed in the pit,do not occupy space.

---When lifting up or down, up,down and stop three buttons control the lift.

---Great load capacity, 1.2 times capacity load test. skidproof platform.

---Sensitive overload protection devices locking device for failing protection.

Hydraulic scissor lift model list-for your reference :

ModelLoadPlatform sizeLifting heightNo-working heightPowerSJG3-2.43T2.0*2.0M2.4M660MM4KW/380VSJG2-5.02T2.1*1.2M5.0M870MM4KW/380VSJG1-4.51T2.1*1.5M4.5M800MM3KW/380VSJG5-6.55T2.2*1.6M6.5M1280MM5.5KW/380VSJG3-6.53T2.2*1.9M6.5M1520MM5.5KW/380VSJG1.5-3.81.5T2.2*2.0M3.8M700MM4KW/380VSJG1-6.01T1.9*1.1M6.0M1100MM3KW/380VSJG2-6.02T2.0*1.3M6.0M1200MM4KW/380VSJG1.5-0.81.5T2.0*1.5M0.8M500MM3KW/380VSJG1 -4.31T2.0*1.8M4.3M800MM4KW/380VSJG2-6.02T2.0*2.0M6.0M1030MM4KW/380VSJG3-2.43T2.0*2.0M2.4M630MM2.2KW/380V

 Please kindly tell us your requirements if above model is not suitable for you. Experienced engineer can design and offer you the best solution as your request.

Hydraulic scissor lift is generally used for lifting cargo and people to working place. Loadingand unloading goods from ground to underground or to other floors.



Plywood case with iron frame packing to keep the machine safety during the shipment. We will pack the hydraulic scissor lift table by the most compact way to save the freight.
